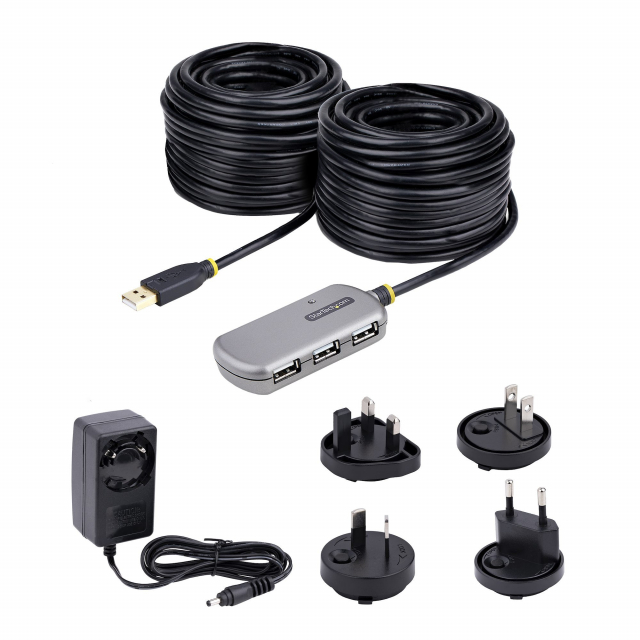

U02442-USB-EXTENDER Includes Only:
- 1 - USB Active Cable with USB Hub
- 1 - Power Adapter
- 1 - Quick-Start Guide
Features:

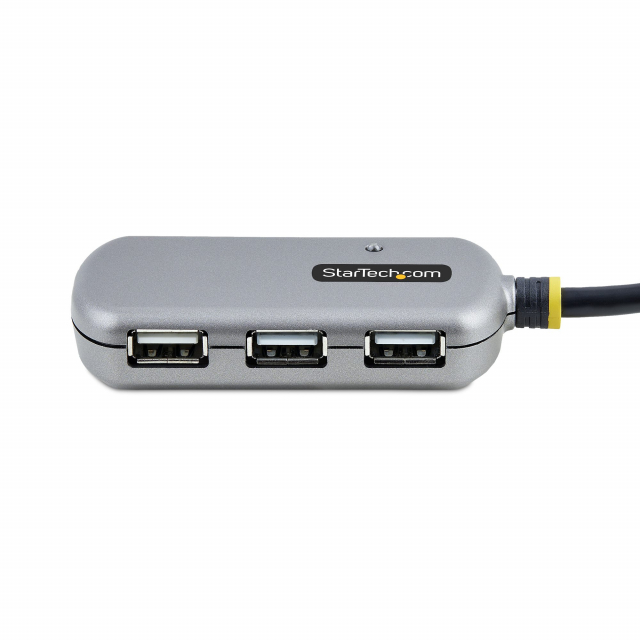

- Long-range active USB extender: USB-A hub with 4x USB 2.0 ports and active extension cable 78.7 ft (24 m); power the USB extension cable via bus power or included power adapter; add a second USB extender hub for maximum distance of 157.4 ft (48 m)

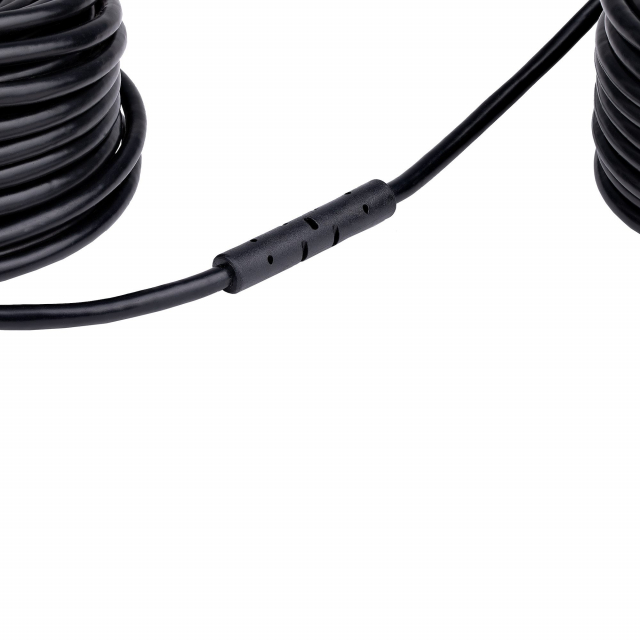

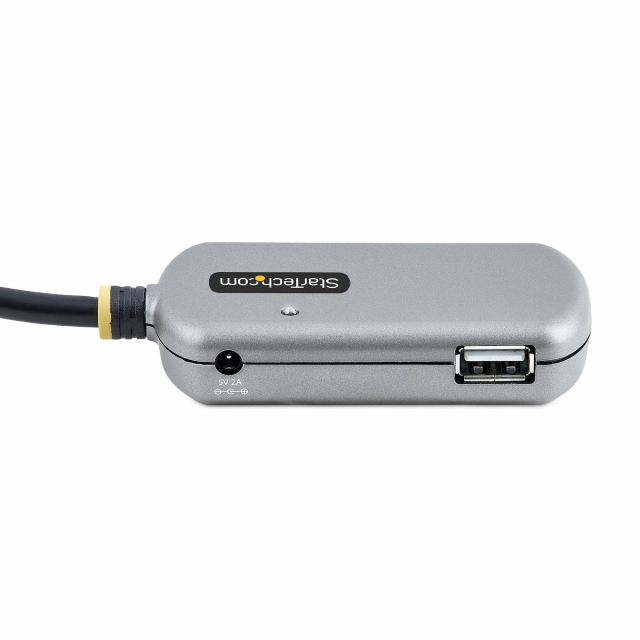

- Stable signal: Booster chip located in the middle of the cable maintains signal quality and ensures optimal performance; included power adapter (5V/2A DC) not required in most scenarios; power adapter allows up to 5V 0.5A per port
- Flexible installation: Active electronics allow the compact 4-port USB extension cable to work via bus power when no power outlets are available; achieve a maximum range of 157.4 ft (48 m) by daisy-chaining two units
- Compatibility: Supports wake-on-USB to wake host systems remotely; backward compatible with USB 1.1/1.0; driverless and OS independent; adds extra safety with level 4 ESD protection (15kV air and 8kV contact)

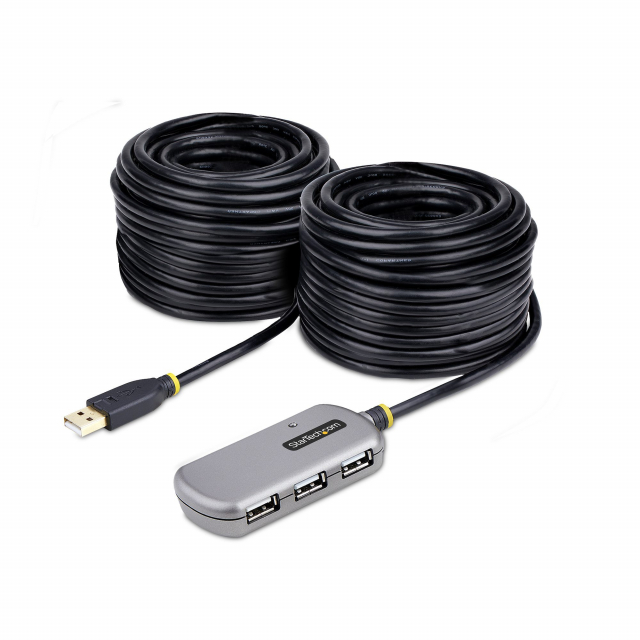

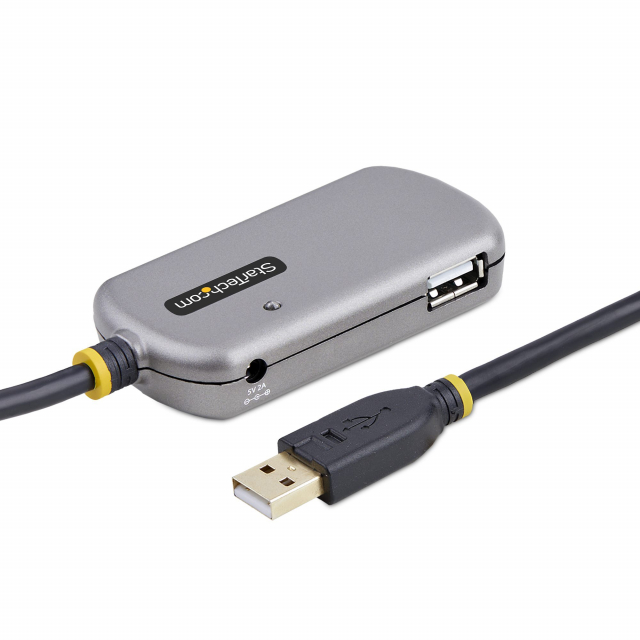

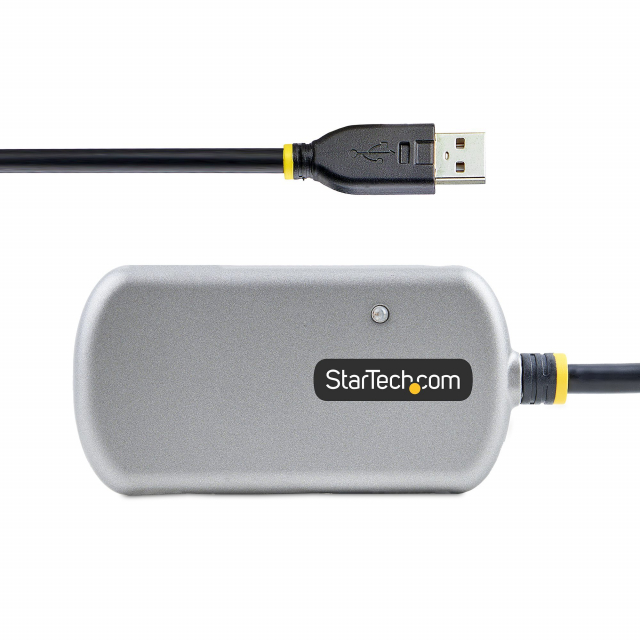

The 4-Port USB 2.0 Extension Cable (78.7ft/24m) enables multiport connectivity at distances that exceed standard USB 2.0 distance and power source limitations. Daisy chain two USB active extension cables for a maximum range of 157.4ft (48m). Active electronics allow the USB-A Hub to work without external power, multiplying the installation possibilities and accelerating any deployment. In addition, the 5V2A DC power adapter supports USB peripherals requiring additional power. Control multiple USB peripherals in remote locations (e.g., webcams, CCTV remote monitoring, remote printers, SSDs, HDDs, scales, mice, keyboards, and other devices), using this 4-port 78.7ft (24m) USB extension cable. The backward compatibility with USB 1.1 and 1.0 ensures functionality with legacy equipment. The hub/cable features plug and play (PnP) setup on any operating system, enabling rapid deployment. The level 4 ESD protection (15kV air and 8kV contact) and the cable shielding enhance USB device safety and minimize EMI.
