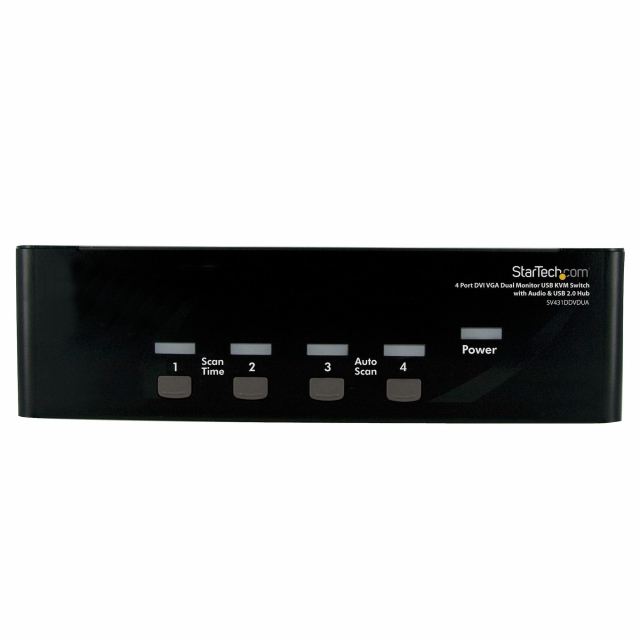

StarTech, SV431DDVDUA, 4 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub

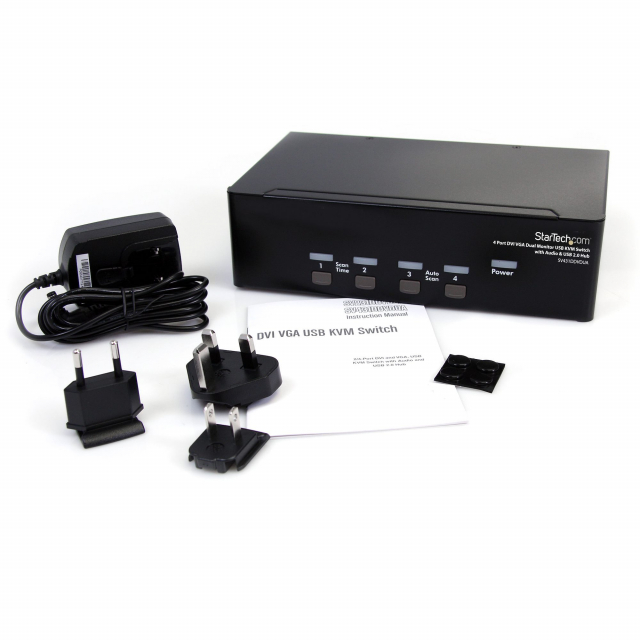

SV431DDVDUA Includes Only:
- 1 - 4-port KVM switch
- 4 - Foot Pads
- 1 - Universal Power Adapter (NA/EU/UK/AU)
- 1 - Instruction Manual
Features:
- Direct channel selection and operation using front panel push-button or keyboard hotkeys
- Supports a maximum digital resolution of 1920 × 1200 and analog resolution of 1920 × 1440; recommended resolution is 1920 × 1200
- OS independent (no drivers or software required)
- Independent or simultaneous audio switching
- Full support for plug-and-play peripherals
- Rugged, all-metal chassis for use in harsh environments
- Status LED display for easy port status monitoring
- USB style keyboard and mouse, plus two other USB 2.0 peripherals can be shared between up to two computers
- Tone indicator for computer switching
- Selectable time intervals for auto scan
- Rear function key to adjust video strength
- HDCP compliant
- Supports DDC2B emulation and EDID pass-through, allowing the display adapter to recognize and auto-configure screens to match display capabilities

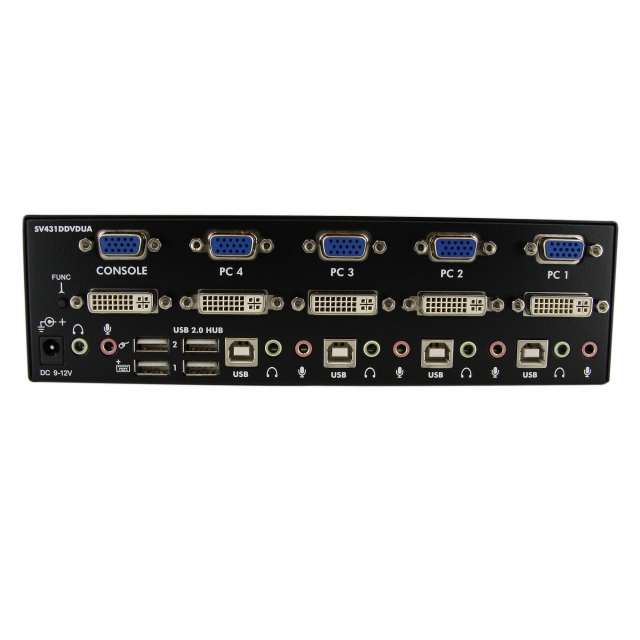

- Supports dual monitor/flat panel displays [1 × DVI + 1 × VGA]
The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set. This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers. The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance. NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.
