StarTech, FD121-KVM-EXTENDER, DisplayPort KVM Extender over Fiber Optic, 4K 60Hz, Console Extender Kit, Up to 984ft

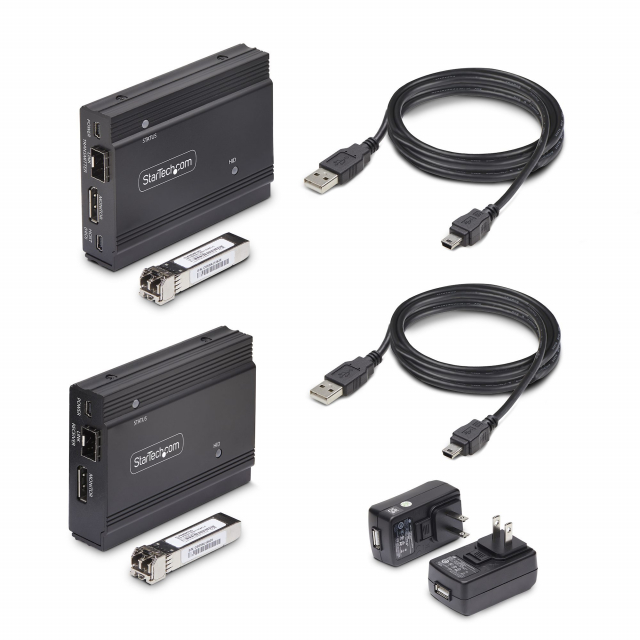

FD121-KVM-EXTENDER Includes Only:
- 1 - Transmitter (Local Unit)
- 1 - Receiver (Remote Unit)

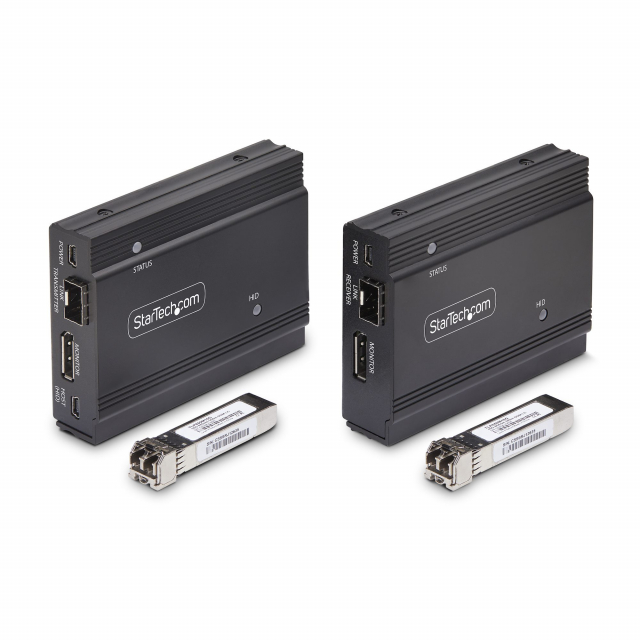

- 2 - 10G SFP+ Modules (Pre-installed)
- 2 - Universal Power Adapter (NA/EU/UK/ANZ)
- 3 - 5ft (1.5m) USB-A to USB Mini-B Cables
- 1 - Quick-Start Guide
Features:
- Fiber optic KVM extender: control a KVM switch, console, or PC at a distance of up to 984ft (300m) away over multi-mode cabling using pre-installed SFP+ modules; supports single-mode SFP+ modules (sold separately) to extend the range up to 1,640ft (500m)
- 4K 60Hz DisplayPort video: transmitter and receiver extension kit supports UHD resolutions up to 3840x2160 60Hz (4:4:4); EDID pass-through ensures optimal signal quality and compatibility by providing real-time display information; DP 1.2 compliant
- Universal compatibility: no drivers or software required and works with any operating system including Windows, macOS, and Linux; point-to-point fiber connection means no network settings to configure or manage; SFP+ slots support MSA-compliant modules

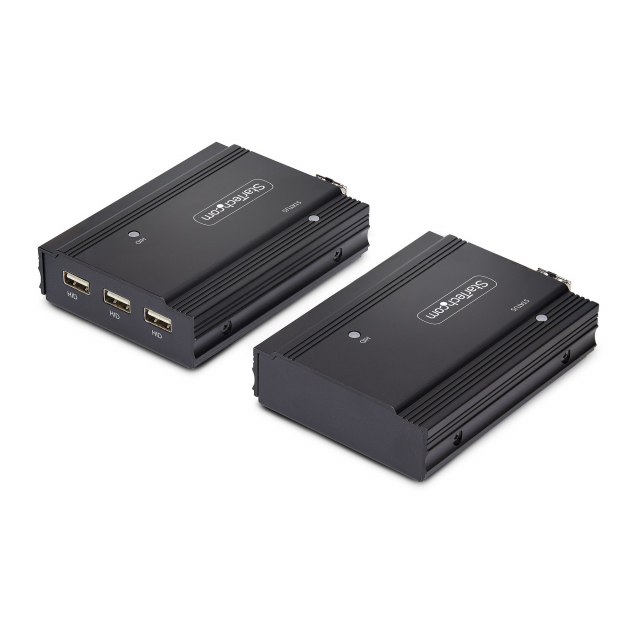

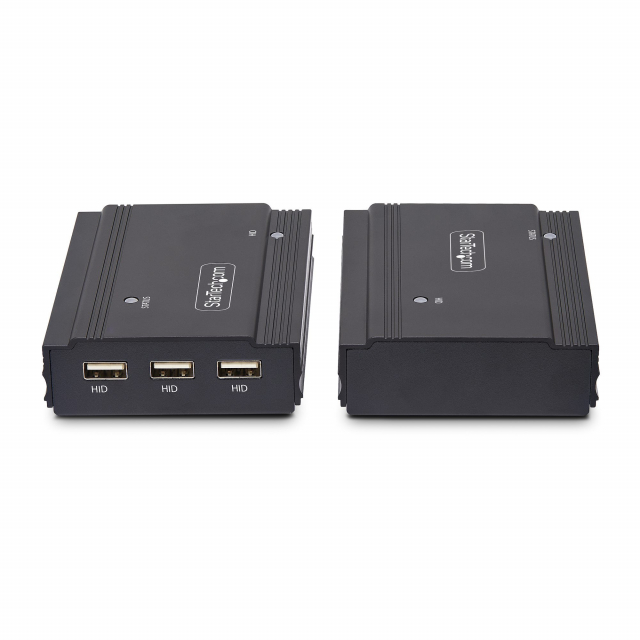

- USB peripheral ports: USB HID ports allow users to connect a variety of peripherals, including mice, keyboards, or other input devices; ideal for remote device control, flexible workstation setups, and collaborative multimedia environments
- Durable design: durable steel housing and fiber extension method help prevent electro-magnetic interference (EMI), enhancing the stability and reliability of the extender; sturdy construction makes it ideal for installation in a variety of environments
The Fiber Optic KVM Extender allows for control of a KVM switch, console, or PC from a distance of up to 984ft (300m). The transmitter/receiver kit extends 4K 60Hz DisplayPort video, supporting UHD resolutions up to 3840x2160 at 60Hz (4:4:4). It is DP 1.2 compliant and includes EDID pass-through for real-time display information, ensuring optimal signal quality and compatibility. The KVM Console Extender does not require any drivers or software for installation. The point-to-point fiber connection eliminates the need for configuring or managing network settings. The extender is compatible with all operating systems, including Windows, macOS, and Linux. The SFP+ slots support both single and multi-mode MSA-compliant modules. Three USB ports allow users to connect peripherals such as a mouse and keyboard, ideal for remote control of source devices, flexible workstation setups, and collaborative multimedia environments. The extender has a sturdy steel chassis and uses fiber-optic extension to reduce electromagnetic interference (EMI), improving stability and ensuring long-term reliability. Its rugged design makes it suitable for installation in various environments.
