Mitutoyo 104-155 Interchangeable Anvil 24-28" Micrometer
Brand:
Mitutoyo
Part #:
104-155
Condition:
Brand New
Brand New $1,389.00 /Each
$1,630.00 You save $241.00 15%
Notification
This product will be drop-shipped directly from the manufacturer. We will provide you with the manufacturer's lead time once advised.
Manufacturer warranty Description

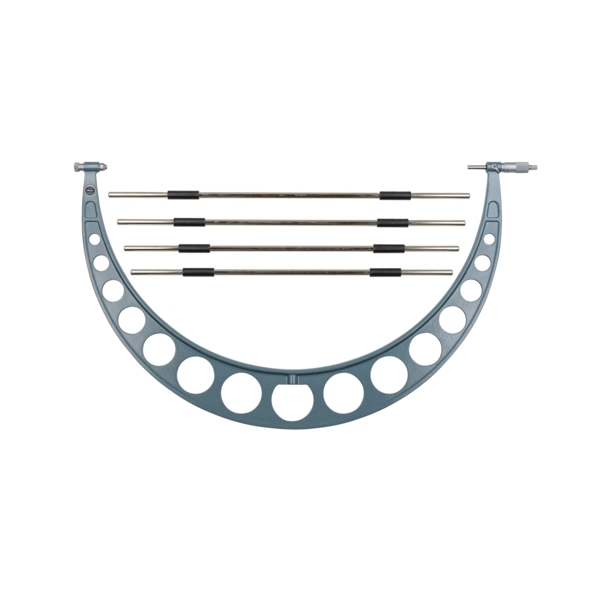

Mitutoyo, 104-155, Interchangeable Anvil 24-28" Outside Micrometer

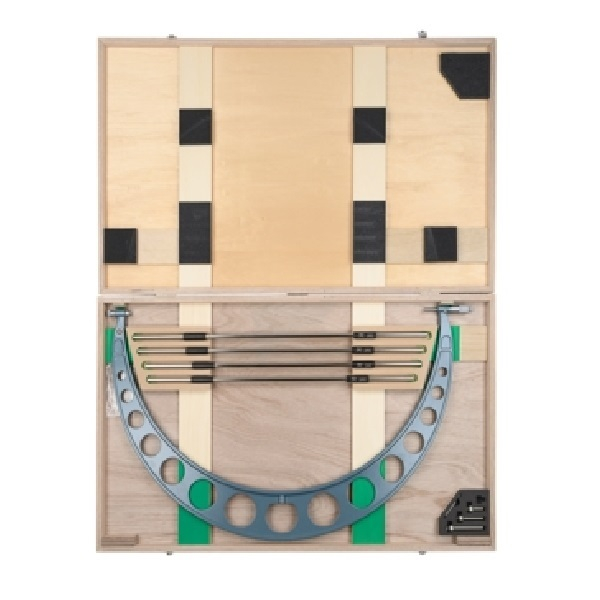

104-155 Includes Only:
- Micrometer
- Box
- 4 x Setting standards (24, 25, 26, 27")
- 4 x Anvils
- Key
Features:
- Differential square-wave signal output enables to use it for a wide rangeof applications.
- You can install it even where space is restricted, thanks to its small size.
- Its photoelectric scale gives it high precision across the entire measuring range.
- It is very long-lasting due to the linear ball bearings in the spindle unit.
This is a slim-type linear gauge that allows you to meet a variety of measurement needs.
Technical details
Main features
- Scale Thimble and sleeve satin chrome finish, Dia. 18 mm
- Range 24 - 28"
- Graduation 0,001"
- Measuring Range (in) 24 - 28
- Measuring Force 10 - 14N
- Mass 7.715kg
- Flatness 0.00004"
- Parallelism 0.00036"
- Digital/Analog Analog
- Inch-Metric Inch
- Measuring spindle With spindle lock, Dia. 8 mm, spindle pitch 0,5 mm
- Spindle Feed Error 0.00015"
- Limit of Error ±0.007"
