Mitutoyo 104-149 Interchangeable Anvil 0-4" Micrometer
Brand:
Mitutoyo
Part #:
104-149
Condition:
Brand New
Brand New $384.70 /Each
$427.00 You save $42.30 10%
Manufacturer warranty Description

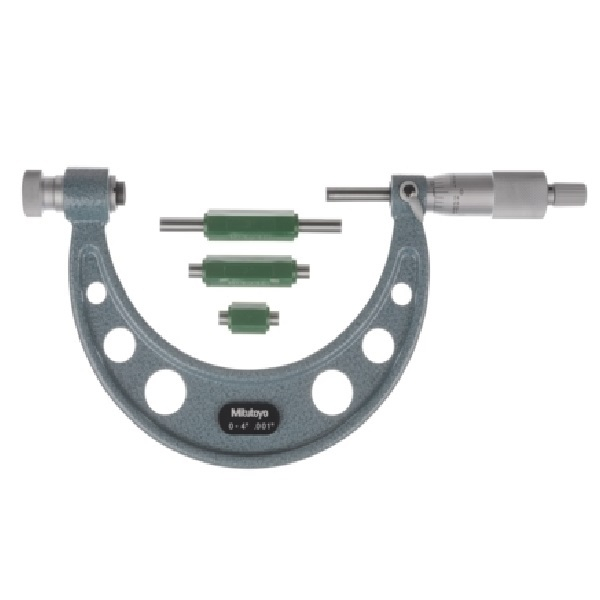

Mitutoyo, 104-149, Interchangeable Anvil 0-4" Outside Micrometer
104-149 Includes Only:
- Micrometer
- Box
- 3 x Setting standards (1, 2, 3")
- 3 x Anvils
- Key
Features:
- Differential square-wave signal output enables to use it for a wide rangeof applications.
- You can install it even where space is restricted, thanks to its small size.
- Its photoelectric scale gives it high precision across the entire measuring range.
- It is very long-lasting due to the linear ball bearings in the spindle unit.
This is a slim-type linear gauge that allows you to meet a variety of measurement needs.
Technical details
Main features
- Scale Thimble and sleeve satin chrome finish, Dia. 18 mm
- Range 0 - 4"
- Graduation 0,001"
- Measuring Range (in) 0 - 4
- Measuring Force 5 - 10N
- Mass 1.38kg
- Flatness 0.000024"
- Parallelism 0.00016"
- Digital/Analog Analog
- Inch-Metric Inch
- Measuring spindle With spindle lock, Dia. 6,35 mm, spindle pitch 0,5 mm
- Spindle Feed Error 0.00015"
- Limit of Error ±0.0035"
