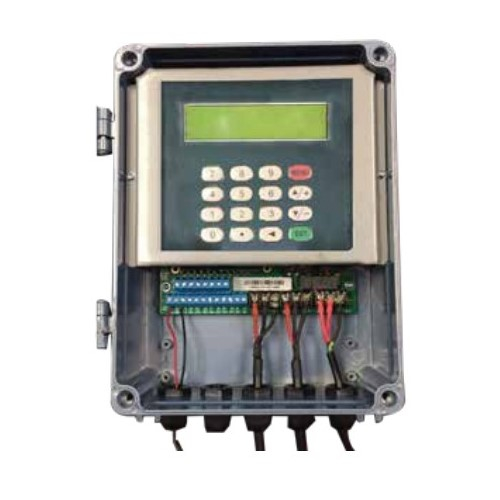

Tek-Trol Tek-Clamp 1200A-100F1 Wall Mount Ultrasonic Flowmeter
Brand New
Manufacturer warranty Description
Features:
- Accuracy Better than 1% accuracy
- LCD Display 2x20 LCD Display
- Size Pipe diameters from 1/2" to 200"
- Protection Category IP65
- Output Signal Modbus RS485, 4-20 mA, and Pulse
- Power Supply 85-264VAC or 24VDC power supply
- Keypad 4 x 4 key tactile-feedback membrane keypad
Tek-Clamp 1200A Ultrasonic Clamp On Flow Meter is designed to measure the fluid velocity of liquid in a full or closed pipe. It is a measurement system which is both easy to install and use. The Tek-Clamp 1200A operates according to the difference in the Transit Time of Flight measured and determines the flow velocity by measuring the travel time of a pulse from one transducer to the next. Flow in the same direction takes less time to travel to the second transducer than flow in the opposite direction. Electroacoustic transducers receive and emit brief ultrasonic pulses through the liquid of the pipe. Transducers are vertically placed at both sides of the measured pipe. Sensors are placed on the pipe and fastened by means of a clamp. The display will quickly show the flow velocity. The Tek-Clamp 1200A can be used for metallic, plastic, and rubber tubes.
Applications:
- Power plants
- Water, wastewater treatment plants
- Mining and metallurgy plants
- Petroleum process monitoring and control
- Chemical process monitoring and control
Technical details
- Input Two three wire system PT100 platinum resistor input loop. For BTV process monitoring
- Power 100F1 85 to 264VAC or 8 to 36VDC
- Accuracy ±1% of reading
- Output 100F1 Modbus RS485, 4-20 mA, Pulse
- Protection Class IP65 (Tek-Clamp 1200A-100F1) IP65; Class I Div II (Tek-Clamp 1200A-100EXP) IP57 (Tek-Clamp 1200A-100M and 1200A-100H), IP68, can work in water with depths less than 10' (3m)
- Pipe Size 1/2" to 28" (15mm to 700mm)
- Pipe Material All metals, most plastics, fiberglass, etc.
- Parameters Specifications
- Display LCD with backlight. 2 x 20 letters
- Power Consumption Less than 1.5W
- Repeatability 0.2%
- Environment temperature -22 °F to 176 °F (-30 °C to 80 °C)
- Process Temperature -40 °F to 320 °F (-40 °C to 160 °C)
- Velocity ±0.03 to ±100 ft/s (±0.01 to ±30m/s)
- Measurement Principle Transit-time measurement principle
- Measurement Period 0.5 Seconds
- Environment Humidity 85% RH
- Clamp-On S2-type: for pipe size 1/2" to 4" M2-type: for pipe size 2" to 28" HS-type: for pipe size ½" to 4" HM-type: for pipe size 2" to 28" 1200A-L2: 12" to 200" 1200A-IM: 3" to 7" 1200A-IL: 3" to 12"
- Pipe Straight Run More than 10D for upstream, more than 5D for downstream, , where D is pipe diameter.
