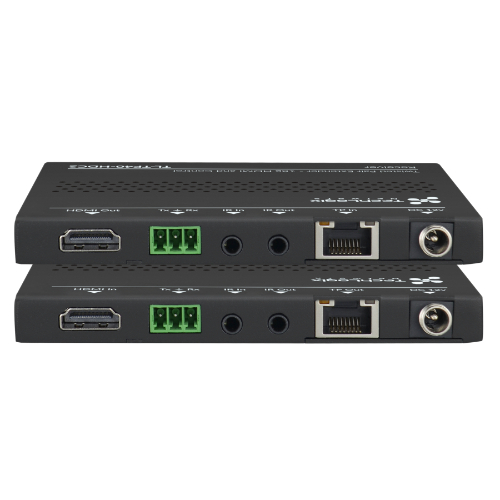

TL-TP40-HDC2 Includes Only:
- 1 x Transmitter (TX)
- 1 x Receiver (RX)
- 4 x Mounting ears
- 8 x Screws
- 8 x Plastic cushions
- 1 x Power adapter (DC 24V 1.25A)
- 2 x RS232 cables
- 1 x User manual
The TechLogix TL-TP100-HDC2 revolutionizes high-bandwidth HDMI signal distribution by transmitting 18G HDMI signals, including HDR and 4K at60 4:4:4, up to 100m (330 ft.) over shielded twisted pair cabling (Category 5e or greater). The system works by lightly compressing signals above 10G for twisted pair transport, and then uncompressing the signal at the destination end. Flexible options for ARC (Audio Return Channel) allow the receiver to accept HDMI, analog, or digital optical. The transmitter can output the audio on HDMI, analog, or digital optical outputs. Additional built-in features such as flexible power with Port-Saver protection, IR and RS232 signal distribution, and Ethernet pass-through make the TL-TP100-HDC2 extremely powerful and extremely flexible. The set includes a power supply with international adapters and mounting brackets.
Features:
- Transmit HDMI, RS232 & IR over a single twisted pair cable
- 18G 4K at60 4:4:4 compatible
- 130 ft. (40m) max distance for 4K
- 220 ft. (70m) max distance for 1080p
- Embedded bi-directional IR and RS232 control
- System powered from either the transmitter or receiver
- HDMI 2.0 and HDCP 2.2 compliant
- CEC & HDR compatible
- Light compression (2:1 ratio) on signals over 10G
