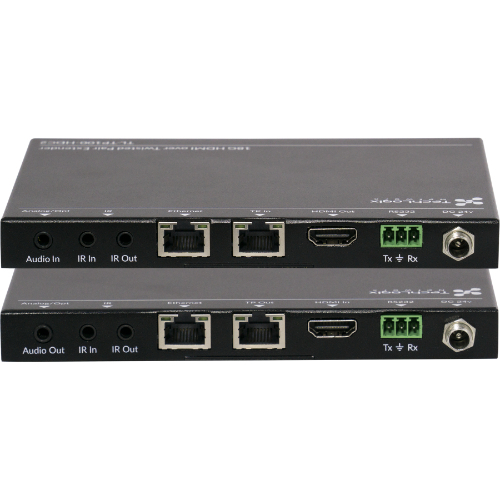

| HDMI Input | HDMI Type A Receptacle (supports ARC) |
| Audio Output | 3.5mm TRS / Mini-TOSLINK Combo (Stereo analog / Optical Digital) |
| Twisted Pair | 8P8C port (Shielded RJ45) with Port-SaverTM protection |
| IR Input | 3.5mm TRS Jack |
| IR Output | 3.5mm TS Jack |
| RS232 | 3pin phoenix socket (Tx/Gnd/Rx) |
| 24V DC Power | 5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel (Locking) |
| Ethernet | 8P8C port (Shielded RJ45) |
| HDMI Output | HDMI Type A Receptacle (supports ARC) |
| Audio Input | 3.5mm TRS / Mini-TOSLINK Combo (Stereo analog / Optical Digital) |
| Twisted Pair | 8P8C port (Shielded RJ45) with Port-SaverTM protection |
| IR Input | 3.5mm TRS Jack |
| IR Output | 3.5mm TS Jack |
| RS232 | 3pin phoenix socket (Tx/Gnd/Rx) |
| 24V DC Power | 5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel (Locking) |
| Ethernet | 8P8C port (Shielded RJ45) |
| Maximum Distances | 1080p/720p: 100m (330 ft.) 4K at30/10G: 100m (330 ft.) 4K at60/18G: 100m (330 ft.) |
| Maximum Video Compatibility | 4K at60Hz 4:4:4 HDR supported |
| Video Compliance | HDMI 2.0, HDCP 2.2, and CEC (Consumer Electronics Control) |
| HDCP Compatibility | HDCP 2.2 Conversion – output version matches sink (display) version |
| Embedded Audio (HDMI) | Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio |
| Embedded Audio (Analog) | Up to PCM 2 channel, 7.1 Dolby Digital Plus, and 7.1 DTS-HD |
| Input DDC Signal | 5.0 volts p-p (TTL) |
| Input Video Signal | 0.5 to 1.0 volts p-p |
| Ethernet Transmission Speed | Adaptive 10M/100M (max) / full duplex or half duplex |
| IR Carrier Frequency Range | 33-55kHz at 5 volts |
| Maximum Distance | 100m (330 ft.) |
| Cable Requirements | Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568Bcrimp pattern |
| Bandwidth | 10.2 Gbps |
| Compression ratio | Up to 2:1 (adaptive for signals above 10.2gbps) |
| Compression type | Color Space Conversion (VLC) |
