Buy TechLogix Networx TL-FO2-HDC2, Control over Two Fiber Optic Cable Extender with ARC

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Type:: Type: Extender with ARC

TL-FO2-HDC2 Includes Only:

Transmitter
Receiver
Mounting kits
Power supplies (international)
IR emitter
IR receiver
3-Pin terminal blocks
Rubber feet
Fiber test cable

HDMI cables are great for transmitting audio and video signals short distances, but larger buildings and larger rooms often need electronics inline to ensure signal performance. Simply pulling a long HDMI cable or connecting multiple HDMI cables together can cause signal drop out, interference, pixelization and a host of other signal and performance problems. Enter TechLogix fiber optic extenders. This cutting-edge technology future-proofs installations by offering industry-leading signal quality and bandwidth transmission. Plus, unlike copper HDMI cables and twisted pair extenders, fiber is immune to RF and EM interference ensuring performance for years to come.

Features:

Transmit HDMI, IR and RS232 over two multimode fiber optic patch cables
Built-in LC connectors on both the transmitter and receiver
Slim chassis design
Extend 1080p up to 1,300 ft. (400m)
Extend 4K at60 4:4:4 up to 1,000 ft. (300m)
HDMI 2.0 / HDCP 2.2
Supports ARC, EDID and CEC
Includes mounting hardware

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Optional Accessories

Reviews

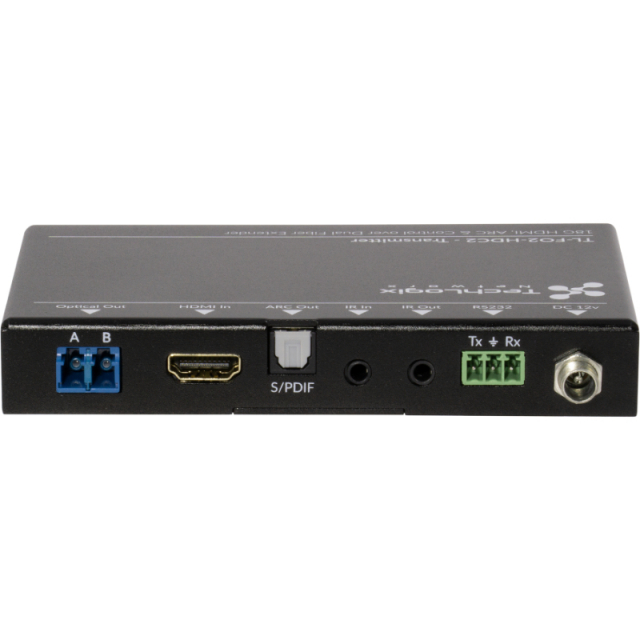

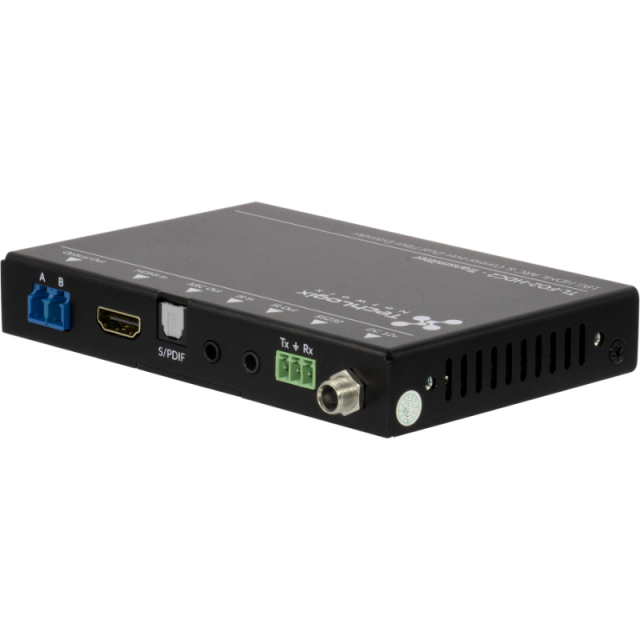

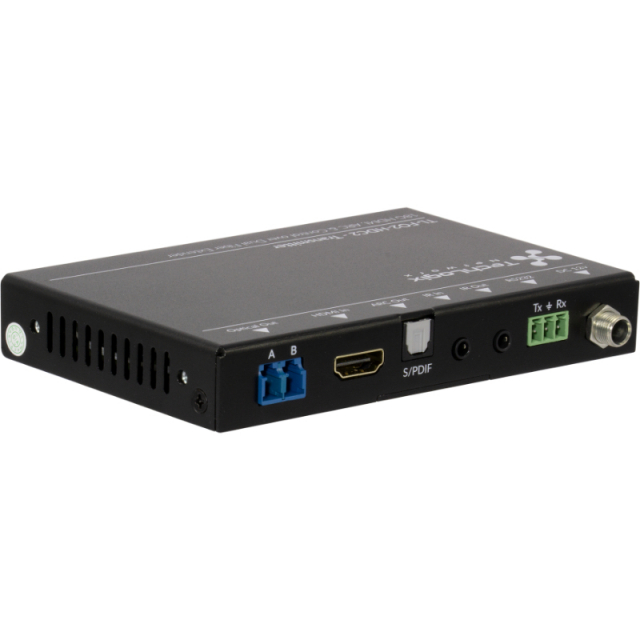

HDMI Input	1 HDMI Receptacle
Optical Output	2 LC Ports
ARC Output	1 Optical Audio Port
IR Input/Output	2 3.5mm TRS Ports
RS232	1 3-pin Removable Terminal Block
12V DC	1 5.5mm OD/2.5mm ID Threaded Barrel Connector
ARC Audio Selector	1 2-position Switch
HDMI Output	1 HDMI Receptacle
Optical Input	2 LC Ports
ARC Input	1 Optical Audio Port
IR Input/Output	2 3.5mm TRS Ports
RS232	1 3-pin Removable Terminal Block
12V DC	1 5.5mm OD/2.5mm ID Threaded Barrel Connector
ARC Audio Selector	1 2-position Switch
Compatible Video Signals	All SD, HD, and other resolutions up to - 4K/60 Hz / RGB and 4:4:4 8 bit (HDR) - 4K/60 Hz / 4:2:2 10 bit (HDR) - 4K/60 Hz / 4:2:0 10 bit (HDR)
Video Compliance	HDMI 2.0, HDMI 1.4, DVI 2.0 (Pixel clock up to 594 MHz)
Digital Content Protection	HDCP 1.2 / HDCP 2.2 Compatible
Embedded Audio	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
ARC (Audio Return Channel)	Up to 6-channel audio
Supported RS232 Baud Rates	2400, 4800, 9600, 19200, 38400, 57600, 115200
Supported IR Carrier	33 to 55 kHz
Required Cable Type	Duplex OM3 or OS2
Maximum Bandwidth	35 Gbps
Maximum Distance	300m (984 ft)
Signal Compression	None
Product Construction	Painted aluminum
*Product Dimensions (WHD)*	145 mm (5.71 in) x 21.5 mm (0.85 in) x 90 mm (3.54 in)
Product Operational Chassis Temperature	35 to + 44°C (95 to + 111 °F)
Environmental Operating Temperature	0 to + 45°C (32 to + 113 °F)
Environmental Operating Humidity	10% to 90%, non-condensing
Environmental Storage Temperature	-20 to +70°C (-4 to + 158 °F)
Environmental Storage Humidity	10% to 90%, non-condensing
Power Input	12V DC
Power Supply Input	100-240V AC at 50/60 Hz; 0.5A Max
Power Supply Output	12V DC at 1 A
Maximum Power Consumption	6 watts
ESD Protection	Human-body Model: ±8kV Air-gap discharge and ±4kV Contact discharge
Regulatory Compliance	FCC, CE, RoHS, WEEE

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

HDMI Input	1 HDMI Receptacle
Optical Output	2 LC Ports
ARC Output	1 Optical Audio Port
IR Input/Output	2 3.5mm TRS Ports
RS232	1 3-pin Removable Terminal Block
12V DC	1 5.5mm OD/2.5mm ID Threaded Barrel Connector
ARC Audio Selector	1 2-position Switch
HDMI Output	1 HDMI Receptacle
Optical Input	2 LC Ports
ARC Input	1 Optical Audio Port
IR Input/Output	2 3.5mm TRS Ports
RS232	1 3-pin Removable Terminal Block
12V DC	1 5.5mm OD/2.5mm ID Threaded Barrel Connector
ARC Audio Selector	1 2-position Switch
Compatible Video Signals	All SD, HD, and other resolutions up to - 4K/60 Hz / RGB and 4:4:4 8 bit (HDR) - 4K/60 Hz / 4:2:2 10 bit (HDR) - 4K/60 Hz / 4:2:0 10 bit (HDR)
Video Compliance	HDMI 2.0, HDMI 1.4, DVI 2.0 (Pixel clock up to 594 MHz)
Digital Content Protection	HDCP 1.2 / HDCP 2.2 Compatible
Embedded Audio	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
ARC (Audio Return Channel)	Up to 6-channel audio
Supported RS232 Baud Rates	2400, 4800, 9600, 19200, 38400, 57600, 115200
Supported IR Carrier	33 to 55 kHz
Required Cable Type	Duplex OM3 or OS2
Maximum Bandwidth	35 Gbps
Maximum Distance	300m (984 ft)
Signal Compression	None
Product Construction	Painted aluminum
*Product Dimensions (WHD)*	145 mm (5.71 in) x 21.5 mm (0.85 in) x 90 mm (3.54 in)
Product Operational Chassis Temperature	35 to + 44°C (95 to + 111 °F)
Environmental Operating Temperature	0 to + 45°C (32 to + 113 °F)
Environmental Operating Humidity	10% to 90%, non-condensing
Environmental Storage Temperature	-20 to +70°C (-4 to + 158 °F)
Environmental Storage Humidity	10% to 90%, non-condensing
Power Input	12V DC
Power Supply Input	100-240V AC at 50/60 Hz; 0.5A Max
Power Supply Output	12V DC at 1 A
Maximum Power Consumption	6 watts
ESD Protection	Human-body Model: ±8kV Air-gap discharge and ±4kV Contact discharge
Regulatory Compliance	FCC, CE, RoHS, WEEE
