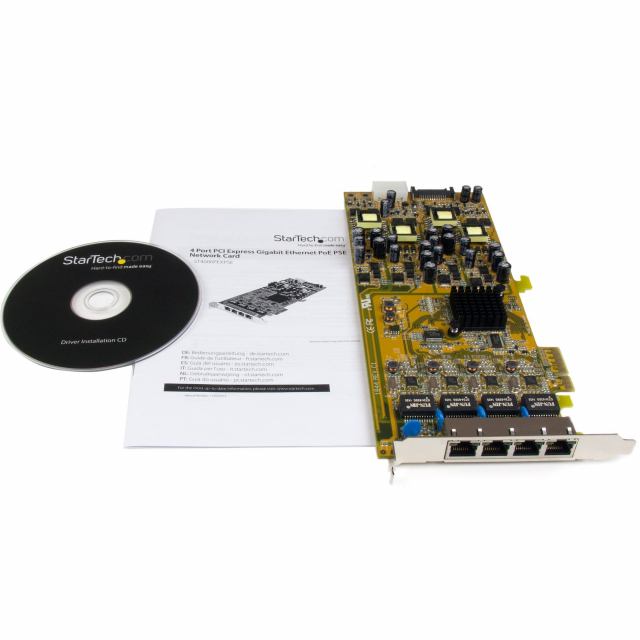

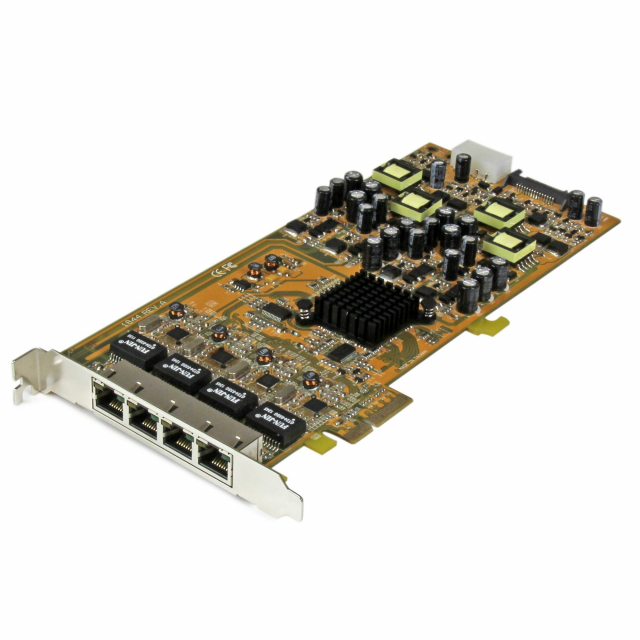

StarTech ST4000PEXPSE 4 Port Gigabit Power Ethernet PCIe Network Card

StarTech, ST4000PEXPSE, 4 Port Gigabit Power over Ethernet PCIe Network Card

Features:

• Four 10/100/1000 Mbps compatible PoE RJ45 ports
• Fully compliant with IEEE 802.3at (Type 1 & 2) Power over Ethernet standards
• Power Sourcing Equipment (PSE) supports:
  • Up to 48V
  • 25.5 Watts max. output per port
• Built-in SATA and LP4 power connector
• Up to 9K Jumbo Frame support
• Wake-on-LAN (Remote Wake-up) support
• Supports:
  • Pair Swap Correction
  • Polarity Correction
  • Skew Correction

The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices. The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points. Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).
