StarTech PEX2PCIE4L PCI Express to 2 PCI & 2 PCIe Expansion System

StarTech, PEX2PCIE4L, PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System

PEX2PCIE4L Includes Only:

• 1 - PCI Expansion box
• 1 - PCI Express Card
• 1 - 3 ft. DVI-D Cable
• 1 - Low Profile Bracket
• 1 - Screw Kit
• 3 - Power Cord (NA/UK/EU)
• 1 - Power Adapter
• 1 - Software CD
• 1 - Instruction Manual

Features:

• Expansion bay providing 2 PCI ports (32-bit/33 MHz), and 2 PCIe single-lane ports (250MBps)
• Self-powered PCI/PCIe expansion system with an on/off button
• Rugged steel construction satisfies demands of industrial and server environments
• Supports both 5V and 3.3V & 5V add-in PCI cards
• Complies with PCI 2.3 and PCIe 1.1 specifications
• Supports advance error reporting including ECRC support
• Support add-in cards with extended length (35cm)

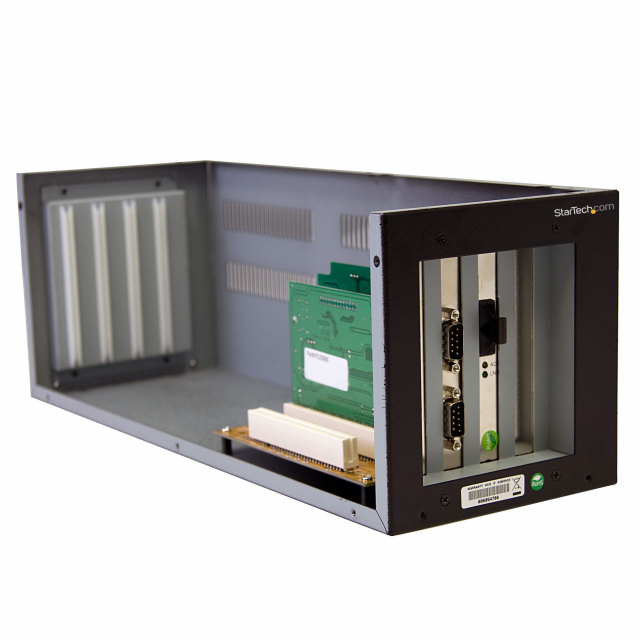

The PEX2PCIE4L PCI/PCI Express Expansion Chassis provides a quick and simple I/O expansion solution to almost any PCI Express (PCIe) enabled system. Adding PCI/PCIe cards to a server or workstation, or providing a platform to swap cards between a mobile and desktop setup is a cost-effective and time-saving solution for maximizing the I/O capabilities of your system. The external expansion chassis adds two full-length (35cm) PCI slots (32-bit/33MHz), as well as two PCIe x1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250MBps from the PCIe x1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard.
