Options and Related Products

Plug Type:: Plug Type: NEMA L6-30P

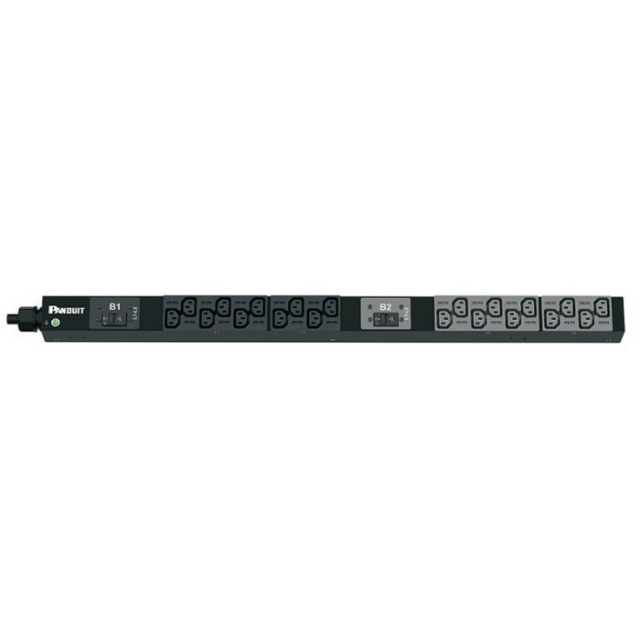

Basic PDU - 30A, 208V vertical single phase PDU has (20) C13 receptacles, a 10' (3m) power cord with a NEMA L6-30P plug, and measures 32.2"L x 2.0"W x 2.1"D (817.9mm x 50.8mm x 53.3mm). UL Listed. Color: Black.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Mount Orientation	Vertical
Plug Type	NEMA L6-30P
Input Voltage (V)	208
Amperage (A)	30
Number of Outlets	(20)C13
Output Voltage (V)	208
Phase	Single Phase
Cable Length (ft.)	9.84
Cable Length (m)	3
Overall Depth (In.)	2.1
Overall Depth (mm)	53.3
Overall Height (In.)	32.2
Overall Height (mm)	817.9
Overall Width (In.)	2
Overall Width (mm)	50.8
Overall Length (In.)	32.2
Overall Length (mm)	817.9
Power Rating (kW)	5
Standards Met	UL Listed
Rack PDU Type	Basic

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Mount Orientation	Vertical
Plug Type	NEMA L6-30P
Input Voltage (V)	208
Amperage (A)	30
Number of Outlets	(20)C13
Output Voltage (V)	208
Phase	Single Phase
Cable Length (ft.)	9.84
Cable Length (m)	3
Overall Depth (In.)	2.1
Overall Depth (mm)	53.3
Overall Height (In.)	32.2
Overall Height (mm)	817.9
Overall Width (In.)	2
Overall Width (mm)	50.8
Overall Length (In.)	32.2
Overall Length (mm)	817.9
Power Rating (kW)	5
Standards Met	UL Listed
Rack PDU Type	Basic

Note

Note: Please read description carefully. Do not base your order on the picture presented.
