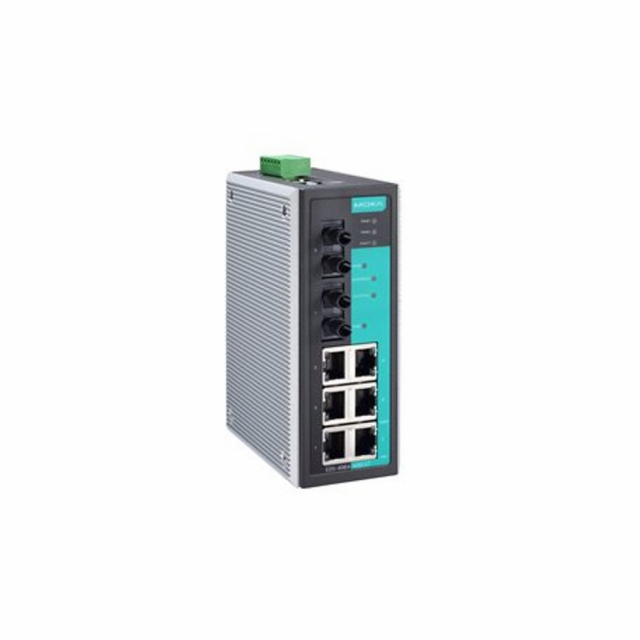

Moxa, EDS-408A-MM-ST-T, Entry-Level Managed Ethernet Switch with 6x10/100Baset(X)-Ports and 2x100BaseFX Multi-Mode-Ports with ST Connectors, Wide Temperature Model

Features:

Turbo Ring and Turbo Chain (recovery time<20 ms at 250 switches), and RSTP/STP for network redundancy
IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
PROFINET or EtherNet/IP enabled by default (PN or EIP models)
Supports MXstudio for easy, visualized industrial network management

The EDS-408A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-408A switches.

Additional Features and Benefits

DHCP Option 82 for IP address assignment with different policies
Supports EtherNet/IP, Modbus TCP and PROFINETEDS-408A-PN Series only protocols for device management and monitoring
Port mirroring for online debugging

Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism
RMON for proactive and efficient network monitoring
SNMPv1/v2c/v3 for different levels of network management security
Bandwidth management to prevent unpredictable network status

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Ethernet Interface

10/100BaseT(X) Ports (RJ45 Connector)

6
Auto-negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

100BaseFX Ports (multi-mode ST connector)

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for Rapid Spanning Tree Protocol

Ethernet Software Features

Filter

802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN

Industrial Protocols

EtherNet/IP, Modbus TCP

Management

Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

MIB

Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

Redundancy Protocols

RSTP, STP, Turbo Chain, Turbo Ring v1/v2

Time Management

NTP Server/Client, SNTP

Switch Properties

IGMP Groups

256

MAC Table Size

8 K

Maximum Number of VLANs

Packet Buffer Size

1 Mbits

Priority Queues

VLAN ID Range

VID 1 to 4094

Serial Interface

Console Port

RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)

DIP Switch Configuration

Ethernet Interface

Turbo Ring, Master, Coupler, Reserve

Input/Output Interface

Alarm Contact Channels

Relay output with current carrying capacity of 1 A at 24 VDC

Power Parameters

Connection

1 removable 6-contact terminal block(s)

Input Voltage

12/24/48 VDC, Redundant dual inputs

Operating Voltage

9.6 to 60 VDC

Input Current

0.61 at 12 VDC
0.3 at 24 VDC
0.16 at 48 VDC

Overload Current Protection

Supported

Reverse Polarity Protection

Supported

Physical Characteristics

Housing

Metal

IP Rating

IP30

Dimensions

53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

Weight

650 g (1.44 lb)

Installation

DIN-rail mounting, Wall mounting

Environmental Limits

Operating Temperature

-40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

EN 60950-1, UL 508, UL 60950-1

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 6 kV
Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV
Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV
Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

Hazardous Locations

ATEX, Class I Division 2, IECEx

Maritime

NK, DNV

Railway

EN 50121-4

Traffic Control

NEMA TS2

Freefall

IEC 60068-2-31

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

MTBF

Time

1,253,072 hrs

Standards

Telcordia (Bellcore), GB

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Ethernet Interface

10/100BaseT(X) Ports (RJ45 Connector)

6
Auto-negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

100BaseFX Ports (multi-mode ST connector)

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for Rapid Spanning Tree Protocol

Ethernet Software Features

Filter

802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN

Industrial Protocols

EtherNet/IP, Modbus TCP

Management

Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

MIB

Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

Redundancy Protocols

RSTP, STP, Turbo Chain, Turbo Ring v1/v2

Time Management

NTP Server/Client, SNTP

Switch Properties

IGMP Groups

256

MAC Table Size

8 K

Maximum Number of VLANs

Packet Buffer Size

1 Mbits

Priority Queues

VLAN ID Range

VID 1 to 4094

Serial Interface

Console Port

RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)

DIP Switch Configuration

Ethernet Interface

Turbo Ring, Master, Coupler, Reserve

Input/Output Interface

Alarm Contact Channels

Relay output with current carrying capacity of 1 A at 24 VDC

Power Parameters

Connection

1 removable 6-contact terminal block(s)

Input Voltage

12/24/48 VDC, Redundant dual inputs

Operating Voltage

9.6 to 60 VDC

Input Current

0.61 at 12 VDC
0.3 at 24 VDC
0.16 at 48 VDC

Overload Current Protection

Supported

Reverse Polarity Protection

Supported

Physical Characteristics

Housing

Metal

IP Rating

IP30

Dimensions

53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

Weight

650 g (1.44 lb)

Installation

DIN-rail mounting, Wall mounting

Environmental Limits

Operating Temperature

-40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

EN 60950-1, UL 508, UL 60950-1

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 6 kV
Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV
Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV
Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

Hazardous Locations

ATEX, Class I Division 2, IECEx

Maritime

NK, DNV

Railway

EN 50121-4

Traffic Control

NEMA TS2

Freefall

IEC 60068-2-31

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

MTBF

Time

1,253,072 hrs

Standards

Telcordia (Bellcore), GB

Note

Note: Please read description carefully. Do not base your order on the picture presented.
