Options and Related Products

Cable Length (m):: Cable Length (m): 6

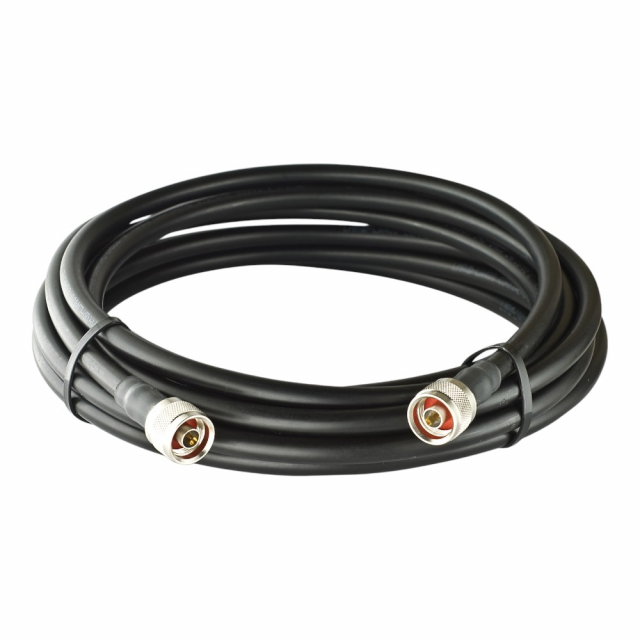

Moxa, A-CRF-NMNM-LL4-600, N-Type (Male) to N-Type (Male) LMR-400 Lite Cable, 6 m

Features:

The A-CRF-NMNM Series is a set of LMR-400 LITE cable accessories with N-type (male)to N-type (male) connectors.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Cable Type	LMR-400 Lite
Connector Type	N-type (Male) to N-type (Male)
Cable Length	6 m
Outer Diameter	10.29 mm (0.41 in)
Min. Bend Radius	24.5 mm (0.96 in)
Impedance	50 ohms
V.S.W.R.	1.7:1 Max at 5150 to 5875 MHz
Insertion Loss	-2.8 dB (max.)
Operating Temperature	-40 to 85°C (-40 to 185°F)

Product Details

Cable Type	LMR-400 Lite
Connector Type	N-type (Male) to N-type (Male)
Cable Length	6 m
Outer Diameter	10.29 mm (0.41 in)
Min. Bend Radius	24.5 mm (0.96 in)
Impedance	50 ohms
V.S.W.R.	1.7:1 Max at 5150 to 5875 MHz
Insertion Loss	-2.8 dB (max.)
Operating Temperature	-40 to 85°C (-40 to 185°F)

Note: Please read description carefully. Do not base your order on the picture presented.
