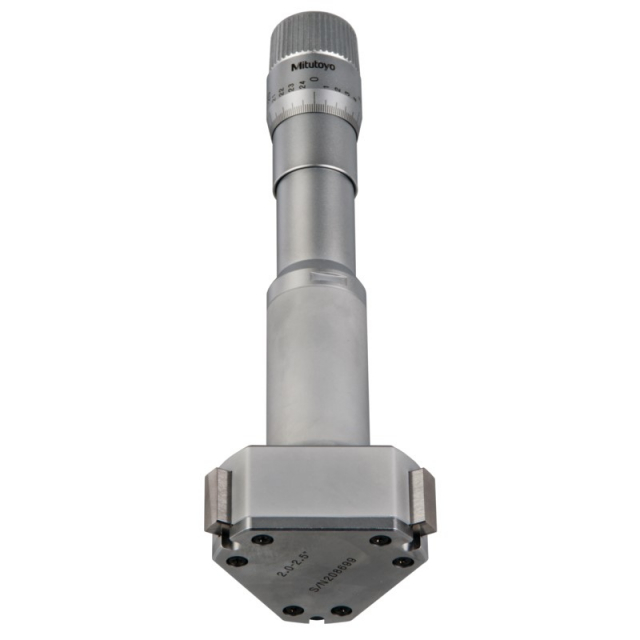

Mitutoyo 368-870 Holtest Type II 3-Point Internal Micrometer, 2.5"

Mitutoyo, 368-870, Holtest Type II Mechanical 3-Point Internal Micrometer, 2-2.5"

368-870 Includes Only:

• A carrying case
• Certificate of inspection
• Key
• Internal Micrometer

Features with all optional accessories:

• Optional extension rod allows for measuring deep holes
• Optional setting rings for zero point adjustment
• The design allows for measurements closer to the bottom of blind boreholes
• Scale on thimble and sleeve is laser etched for easier reading in all conditions

The Mitutoyo Holtest (Type II) mechanical three-point internal micrometer utilizes three self-centering anvils constructed of alloyed steel for accurate and efficient measurements of inside dimensions of bores. The Mitutoyo mechanical Holtest internal micrometer features three alloy steel anvils evenly spaced at 120° for true alignment of the axis bore for accurate, easily repeatable measurements. A hardened steel spindle with a carbide ball and cone with a carbide pin ensure accuracy and durability when extending and retracting the anvils. The holtest's ratchet stop mechanism provides a constant measuring force on the hardened-steel spindle to ensure accurate, even measurements.
