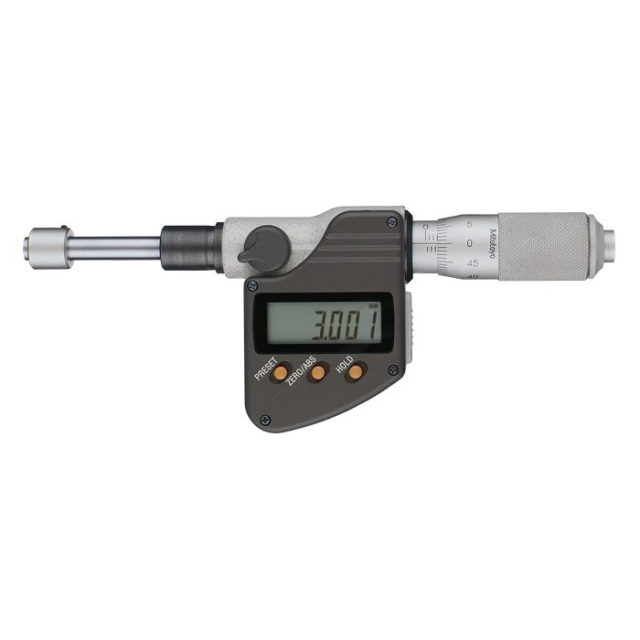

Mitutoyo 350-261-30 Digimatic Micrometer Head, 0-25mm

Features:

• Spindle diameter is 6.35mm /.25"
• Mic head total length (at stroke end) is 181.5mm / 7.15"
• Ratchet mechanism provides an audible cli-ck to ensure measurement is performed constant force
• SPC output function allows for quick and easy data management in real time
• Functions include 2 Presets, Function Lock, and inch/mm conversion (on inch/metric models only)
• Alarm: Low Voltage, Counting Value Composition Error
• Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
• Twice as long battery life than previous models improves throughput and efficiency
• Auto power ON/OFF function saves battery life allows easier use
• IP65 protection permits use in environments exposed to cutting oil, dust, etc
• Supplied in a plastic, fitted case

The Mitutoyo Digimatic digital micrometer head is manufactured with the same precision and durability as trusted micrometers in own Japanese factory. The frame and spindles on Mitutoyo's micrometer heads are constructed of special hardened steel that minimizes flex and fluctuations due to temperatures for better, repeatable accuracy. The ratchet thimble provides a constant measuring force on the spindle to ensure accurate, repeatable measurements.
