Mitutoyo, 324-351-30, Digimatic Digital Gear Tooth Micrometer IP65, Inch/Metric, 0-1"

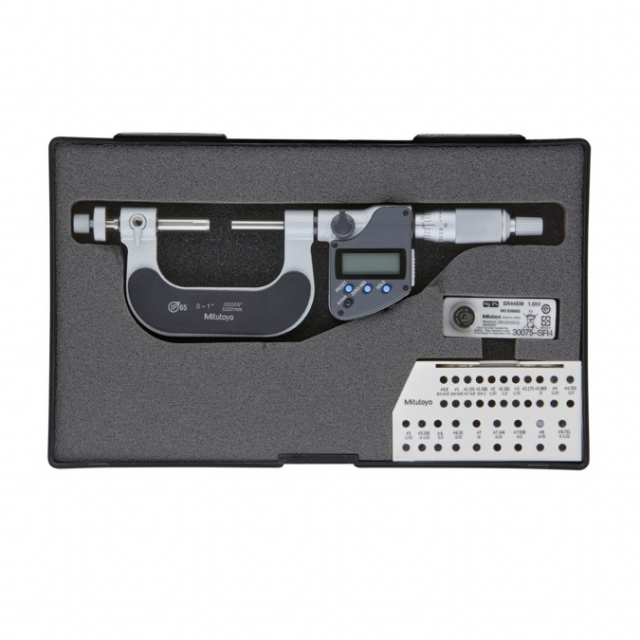

324-351-30 Includes Only:
- Fitted plastic case
- Key
- Setting standard
- 1 battery
Features:
- The ratchet mechanism provides an audible cli-ck to ensure the measurement is performed with a constant force
- SPC output function allows for quick and easy data management in real time
- Functions include Zero/ABS Setting, Data Hold, Data Output, Function Lock, 2 Presets, and inch/ mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
- The frame has a non-slip finish for better grip in shop environments

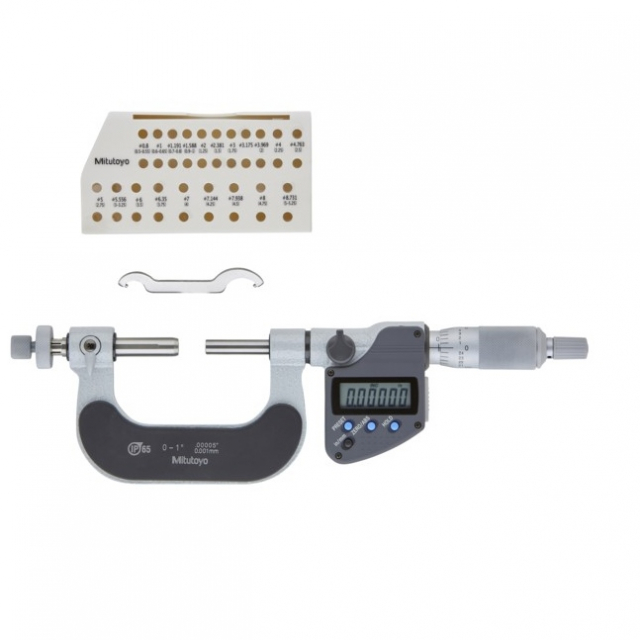

The Mitutoyo Digimatic digital gear tooth micrometer measures gear modules with precision using optional interchangeable anvil-spindle tips to measure different sizes and types of gears. The Mitutoyo gear tooth micrometer measures the over-pin diameter of gears. Precision carbide anvil and spindle ball-tipped measuring surfaces are interchangeable, with optional ball-tip faces allowing for measurement of various gear modules. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Readings are displayed on an easy-to-read LCD readout.
