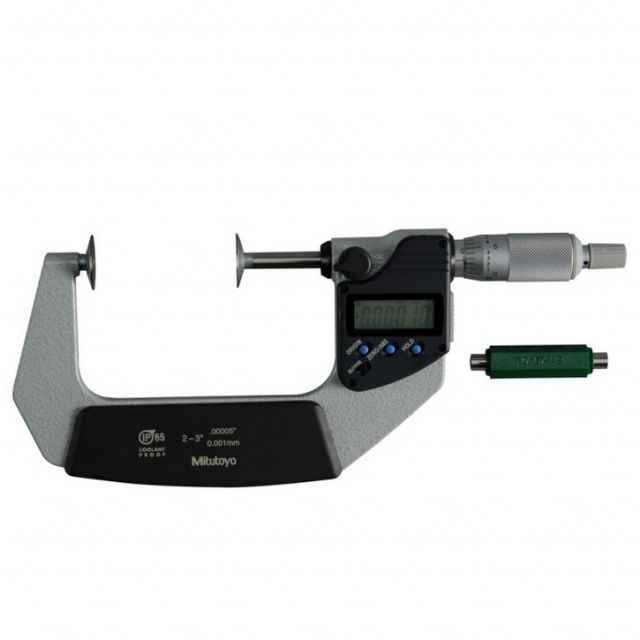

Mitutoyo, 323-352-30, Digimatic Digital Disc Micrometer IP65, Inch/Metric, 2-3", Disk=20 mm
323-352-30 Includes Only:
- Fitted plastic case
- Key
- Setting standard
- 1 battery
Features:
- Measuring surfaces are constructed of carbide to reduce wear
- IP65 protection enables use in environments exposed to cutting oil, coolant, dust, etc., for most shop floor environments
- The ratchet mechanism provides an audible cli-ck to ensure the measurement is performed with constant force
- SPC output function allows for quick and easy data management in real-time
- Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock, and inch/ mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- Satin chrome finish on the sleeve and laser-etched measurements on thimble for easier reading
- The frame has a non-slip finish for better grip in shop environments
The Mitutoyo Digimatic coolant-proof disc digital micrometer is designed to measure the root tangent length of spur gears and helical gears within +/- 0.0002" of accuracy. The Mitutoyo disc micrometer uses flat discs constructed of hardened steel in own Japanese facilities to measure lengths of spur and helical gears. The flatness and thinness of the discs allow for measurements in tight spaces with reliability. A ratchet-stop mechanism helps provide uniform pressure on a workpiece for precise, repeatable measurements and eliminates the over-speed error. Measurements are displayed on an easy-to-read LCD readout.
