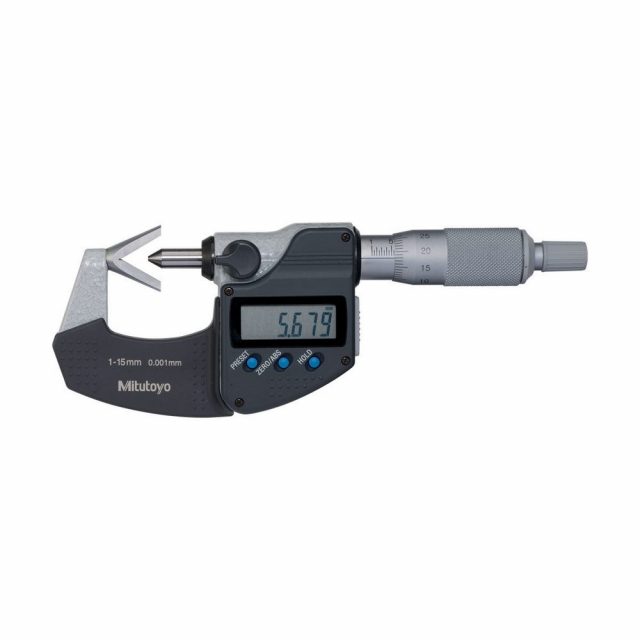

Mitutoyo 314-362-30 Digimatic Digital Micrometer, 0.4-1" Range

Mitutoyo, 314-362-30, Digimatic Digital 3 Flute V-Anvil Micrometer, 0,4-1" Range

314-362-30 Includes Only:

• Fitted plastic case
• Key
• Setting standard
• 1 battery

Features:

• V-Anvils with a centerline groove are for measuring the pitch diameter of taps by the single-wire method
• The ratchet mechanism provides an audible cli-ck to ensure the measurement is being performed with a constant force
• SPC output function allows for quick and easy data management in real-time
• Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, 2 Presets, Function Lock, and inch/ mm conversion (on inch/metric models only)
• Alarm: Low Voltage, Counting Value Composition Error
• Satin chrome finish on the sleeve and laser-etched measurements on thimble for easier reading
• The frame has a non-slip finish for better grip in shop environments

The Mitutoyo Digimatic V-Anvil micrometer measures the outside diameter of cutting tools such as taps, reamers, and end mills with three flutes. The Mitutoyo Digimatic V-Anvil digital micrometer pointed spindle and V-Anvil delivers precise position for highly accurate measurements. The anvil and spindle are precision milled from hardened steel for lasting, accurate results. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Measurements are displayed on an easy-to-read LCD readout.
