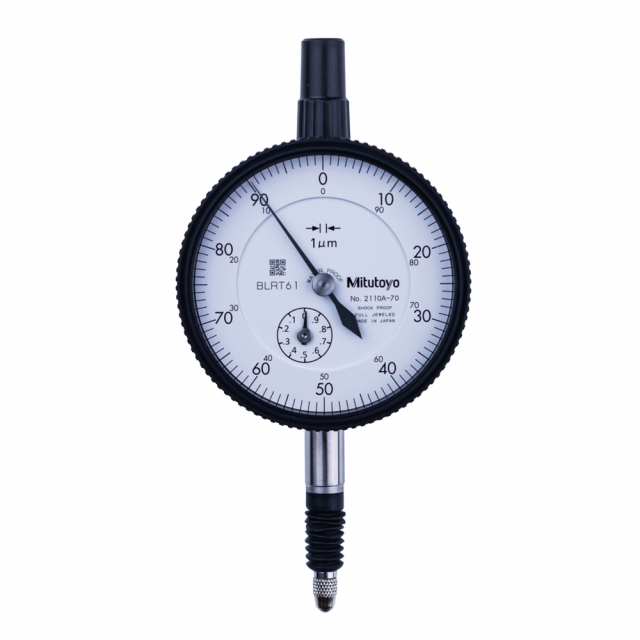

Mitutoyo 2110A-70 Series 2 ISO Type Indicator with Lug Back

Mitutoyo, 2110A-70, Series 2 ISO Type Dial Indicator with Lug Back

Features:

• A revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping range
• The unique shock-proof mechanism protects against shock from sudden spindle retraction
• Rack gear is machine ground for tighter fit, increased accuracy
• Greater rigidity in the bearing plate reduces retracing error by up to 20%
• 4-Screw mounting increases impact resistance for better, longer accuracy
• No through screw hole on the frame provides better dust resistance
• The contact point is carbide tipped for lasting accuracy, durability
• Crystal is glare-free with a scratch-resistant coating
• Manufactured to meet ANSI/AGD standards
• Supplied in a fitted plastic case

The Mitutoyo metric reading dial indicator performs with excellent accuracy and reliability. The stem and spindle are hardened, high-strength steel, and the jeweled bearing provides wear resistance and low friction movements for smooth, precise operations. Secured adhesion between the frame and crystal, along with using an O-ring, protects the indicator against water and oil permeation via the front face. The crystal has a scratch and glare-resistant coating for clearer readings and better durability.
