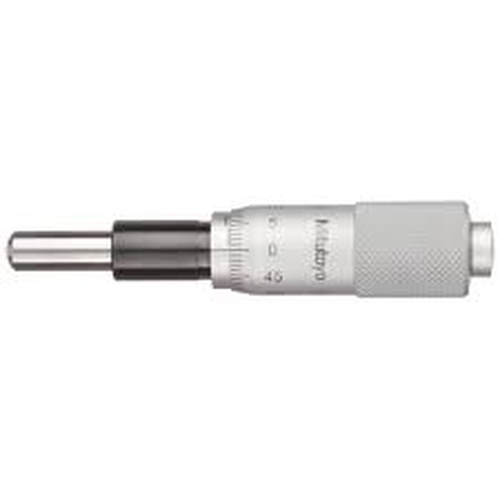

Mitutoyo 149-801 Series 149 Micrometer Head Small-Carbide, 0-15mm

Mitutoyo, 149-801, Series 149 Micrometer Head-Common Type-Small-Carbide, 0-15mm Range, Plain Stem

Features:

• Smaller size mic head has a 15mm thimble diameter
• Mounting stem diameter is 9.5mm / .375"
• Spindle range is 15mm / .5"
• Spindle diameter is 6.35mm / .25"
• Mic head total length (at stroke end) is 90.5mm / 3.56"
• Reverse reading on some models
• Spindle faces have lapped surfaces and constructed of ultra-hard SKS3 steel. Spherical or flat types
• Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements

The Mitutoyo small-sized micrometer head delivers precise stage adjustments and measurements up to 0.5". Its precision lapped, carbide-tipped spindle is exceptionally flat, accurate and durable. The thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements.
