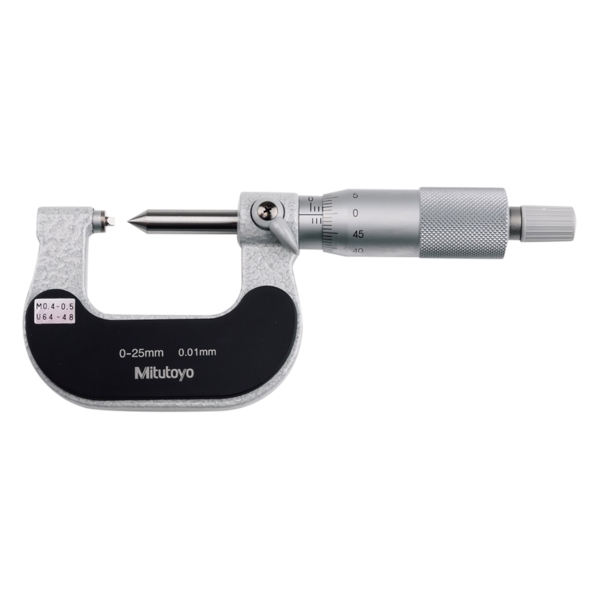

Mitutoyo 125-105 Screw Thread 0-25mm Micrometer, 8-5TPI

Features:

• Measuring surfaces are constructed of carbide to reduce wear
• The Ratchet mechanism provides an audible cli-ck to ensure the measurement is performed at a constant force
• Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
• Frame has a baked enamel finish for durability and longer lifespan
• Includes a standard bar for zero-point
• Supplied in fitted plastic case

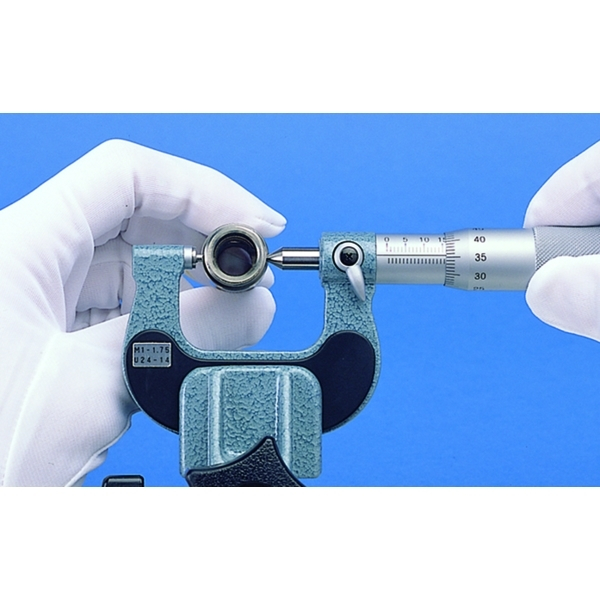

The Mitutoyo screw thread micrometer features a hardened steel 60-degree anvil and conical spindle to easily and precisely measure pitch diameters of metric or unified screw threads. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
