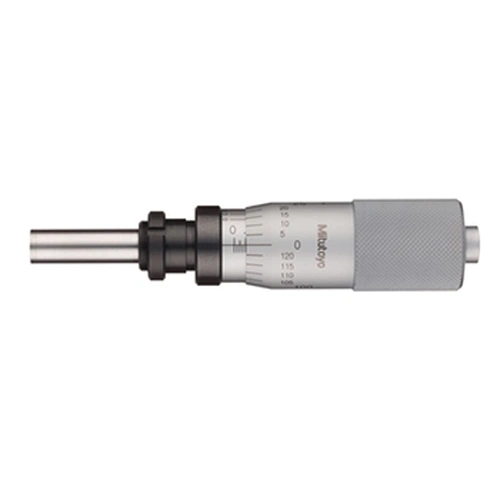

Mitutoyo 110-116 Series 110 Micrometer Head-Differential, 0-0.02"

Mitutoyo, 110-116, Series 110 Micrometer Head-Differential Screw-Narrow Range, 0-0.02"

Features:

• Mic head has a 21mm / .827" thimble diameter
• Spindle diameters are 6.35mm / .25" and 8mm / .315"
• Mic head total lengths (at stroke end) are 7mm / 5.22", 110.2mm / 4.34", and 110.5mm / 4.35"
• Spindle faces are constructed of carbide and have lapped surfaces for more accurate measurements over time
• Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements

The differential screw mechanism in this Mitutoyo micrometer head provides extra-fine feeding of the spindle for highly accurate adjustments and measurements. Its non-rotating spindle eliminates torque for added precision. The spindle has a flat measuring face constructed of carbide and is lapped for lasting precision.
