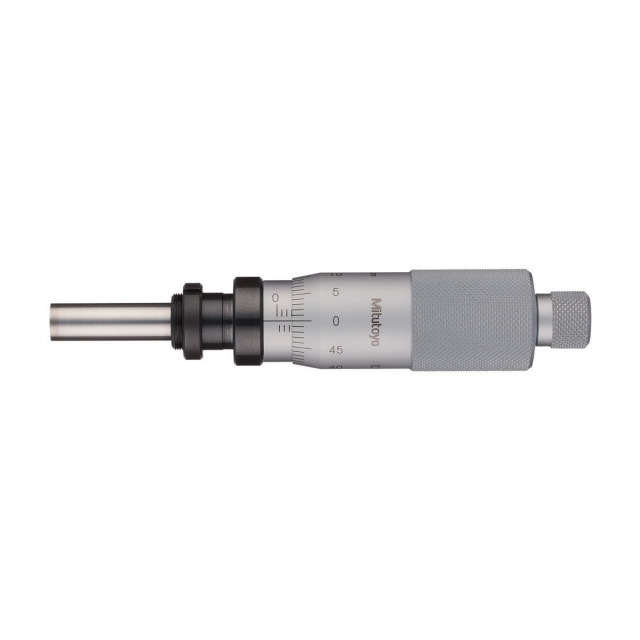

Mitutoyo 110-106 Series 110 Micrometer Heads-Differential
Brand NewNotification
This product will be drop-shipped directly from the manufacturer. We will provide you with the manufacturer's lead time once advised.
Manufacturer warranty Description
Mitutoyo, 110-106, Series 1 Micrometer Heads-Differential Screw-narrow Range, 0-1mm Range, 0.0001 Graduation, Spindle Face Flat, Measuring Faces-Carbide Tipped
Features:
- Mic head has a 21mm thimble diameter
- Metric spindle ranges available are 1mm
- Spindle diameters are 6.35mm and 8mm
- Spindle faces are constructed of carbide and have lapped surfaces for more accurate measurements over time and are available in flat or spherical
- Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
The differential screw mechanism in this Mitutoyo micrometer head provides extra-fine feeding of the spindle for highly accurate adjustments and measurements. Its non-rotating spindle eliminates torque for added precision. The spindle has a flat measuring face constructed of carbide and is lapped for lasting precision.
Technical details
- Range 0-1mm
- Graduation 0.0001mm
- Units Metric
- Stem Diameter 12mm
- Technology Mechanical
- Stem w/clamp nut
- Measuring Faces Carbide Tipped
- Spindle Pitch 0.05mm
- Spindle Face Flat
- Scale Surface Hard chrome plating
- Wide Range Accuracy ±3µm
- Narrow Range Accuracy ±1.5µm
