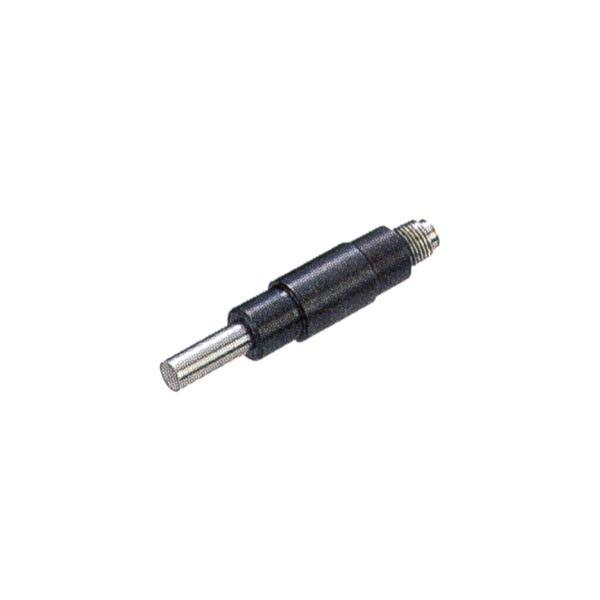

Mitutoyo 04AZA161 Precision Lead Screw, 6.5mm, B Type
Brand:
Mitutoyo
Part #:
04AZA161
Condition:
Brand New
Brand New $87.55 /Each
$93.08 You save $5.53 6%
There is a $100.00 minimum order required when purchasing "Mitutoyo" products
Contact Us
Check availability
$87.55 /Each
$93.08 You save $5.53 6%
There is a $100.00 minimum order required when purchasing "Mitutoyo" products
Notification
This product will be drop-shipped directly from the manufacturer. We will provide you with the manufacturer's lead time once advised.
Manufacturer warranty Description
Features:
- Mitutoyo manufactures simple and economical precision lead screws for precise positioning mechanisms and finefeed mechanisms, in addition to the conventional micrometer heads.
- Mitutoyo also manufactures screws with special specifications, such as 0.25 mm pitch, as well as those with the standard 0.5 mm feed pitch and with dimensions and forms that meet customer's requirements.
- Durability: 100,000 cycles are guaranteed (use condition: 4 kg load; 2 kg for AS-6.5 and BS-6.5)
- Main applications Precision feed stages Fine adjustment of optical elements (mirrors, prisms) Fiber optic centering devices Various assembly and adjustment jigs
Technical details
Main features
- Stroke (mm) 6.5
- Measuring Face Hardened
- Type B
- Mass 11g
- Feed pitch (mm) 0.5
- Feed accuracy (µm) ±5
- Stem diameter (mm) 6
- Tip diameter (mm) 3.5
- Tail diameter (mm) 3
- Screw nominal diameter M4.5 x 0.5
- Sleeve diameter (mm) 7
