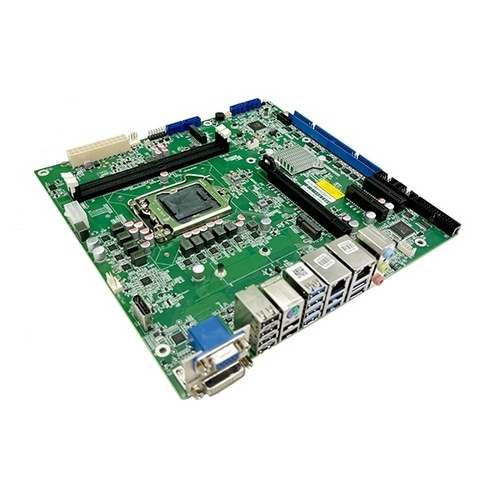

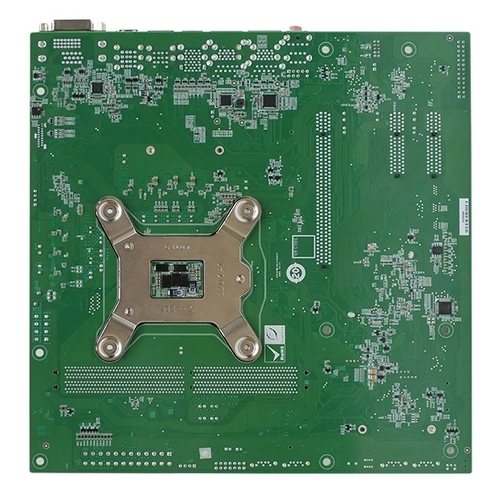

IEI, IMB-Q470-R10, Micro-ATX Motherboard Supports LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® Processor, DDR4, Triple Displays, Dual 2.5GbE LAN, M.2, 8 USB 3.2,6 USB 2.0,10 COM, SATA 6Gb/s, HD Audio and RoHS

IMB-Q470-R10 Includes Only:

1 x IMB-Q470 single board computer
2 x SATA cable
1 x I/O shielding
1 x Quick Installation Guide

Features:

LGA1200 Intel® 10th/11th Generation Core i9/i7/i5/i3, Pentium and Celeron processor (up to 125W)
Two 288-pin 2933 MHz unbuffered DDR4 SDRAM DIMM slots (system max. 64GB)
Support triple independent display via DVI, VGA and internal DP++
Support one PCIe x16 and two PCIe x4 expansions
Support one M.2 B key, one M.2 M key and four SATA for storage

Support 10th/11th Gen Intel® Core™ CPU

Built-in with 10th/11th Generation Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® processor (LGA1200), high performance capability with multi-tasking function

Support Intel® I226V 2.5GbE Ethernet Controller

Support two RJ45 network interface via Intel® I226V 2.5GbE network controller to achieve up to 2.5GbE network transmission

Rich Expansion I/O

It includes one PCIe Gen4 x16, two PCIe Gen4 x4 and one PCIe Gen3 x1 for functional expansions like graphics cards, LAN cards or motion control cards

Abundant USB and COM interfaces

It is equipped with 8 USB 3.2 Gen 1 (5Gb/s) ports, six USB 2.0 ports on the rear panel. Additionally, 10 x RS-232 ports are supported via internal connectors.

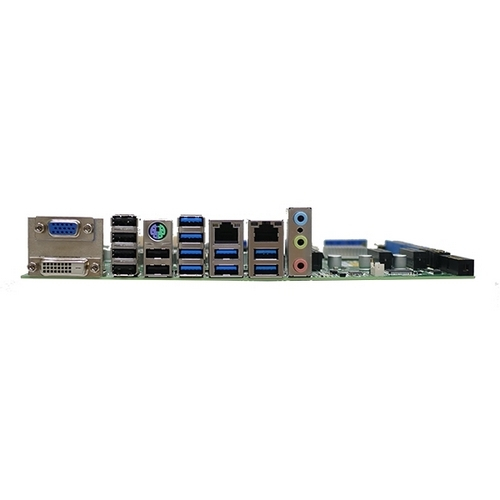

Ports

Inputs and Outputs

Dimensions

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Form Factor

micro at X

System

CPU

LGA1200 socket supports 10th/11th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor. up to 125W TDP

Chipset

Intel® Q470/Q470E

Memory

Two 288-pin 2933 MHz unbuffered DDR4 SDRAM DIMM slots(supporting up to 64 GB memory)

Memory Max.

64GB

Cooling method / System Fan

1 x CPU fan connector (1x4 pin)
1 x System fan connector (1x4 pin)

Physical Characteristics

Dimensions (LxWxH) (mm)

244mm x 244mm

Net Weight

700g

Storage

4 x SATA: RAID 0/1/5/10 supported
1 x M.2(NGFF): B key 2242/2280 (PCIe Gen3 x2)

I/O Interface

Display Output

1 x VGA: up to 1920 x 1080 at 60Hz
1 x DVI-D: up to 2560 x 1600 at 60Hz
1 x DP++: up to 3840 x 2160 at 60Hz

Ethernet

2 x LAN:
- LAN1: Intel® I219-LM GbE controller
- LAN2: Intel® I225V/I226V GbE controller

Audio

1 x HD Audio: Realtek ALC888S HD Audio codec
3 x Audio jack (Line-in, Line-out, Mic-in)
1 x Analog audio (2x5 pin)

I/O Interface

10 x Internal RS-232
2 x 2*20 pin, P=2.54
2 x 2*5 pin, P=2.54
6 x External USB 2.0: Type A
8 x External USB 3.2 Gen1x1: 5 Gb/s (Type A)
1 x PS/2: for KB/MS
1 x LPT: 2*13 pin

Expansion

1 x PCIe x16: Gen4 slot with x16 Signal
2 x PCIe x4: Gen4 open-end
2 x M.2(NGFF):
- 1 x M.2 B key 2242/2280 (PCIe Gen3 x2)
- 1 x M.2 M key 2242/2280 (PCIe Gen3 x4)

Power

Power Consumption

3.3V at 1.13A, 5V at 10.14A, 12V at 11.86A, 5VSB at 0.23A (11th Gen.Intel® Core® i9-11900K 3.50 GHz 125W CPU with 32GB 2933MHz DDR4 memory, EUP enabled)
3.3V at 1.16A, 5V at 10.45A, 12V at 5.93A, 5VSB at 0.26A (10th Gen.Intel® Core® i9-10900E 2.80 GHz 65W CPU with 32GB 2933MHz DDR4 memory, EUP enabled)

Power Supply

ATX/AT power supply
Support at /ATX mode
ErP/EuP Compliant

Environment

Operating Temperature

-10°C~60°C

Storage Temperature

-30°C~70°C

Humidity

5% ~95%, non-condensing

Notes
