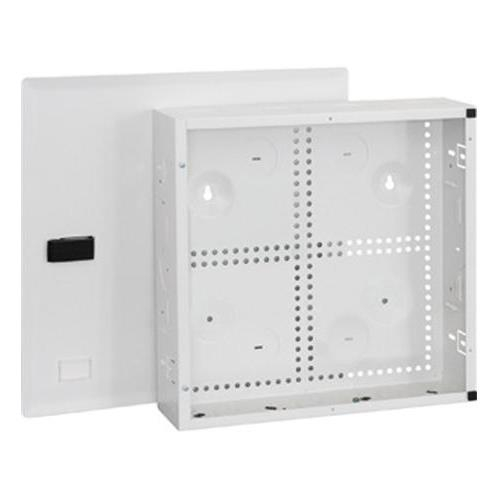

ICC ICRESDC14E 14" Residential Structured Cabling Enclosure

ICRESDC14E Includes Only:

• 14" Net Media Center Box Assembly, 1 pc
• 14" Net Media Center Door Assembly, 1 pc
• Door Latch, 1 pc
• Rubber Grommet, 4 pcs
• Rubber Bumper, 2 pcs
• #6-32 x 3/8" Zinc Plated, Pan Head Hinge Screw, 2 pcs
• #10-24 x 1", Wood Screw, 4 pcs
• Protective Cover, 1 pc
• "NET MEDIA CENTER" Insert, 1 pc
• Fastener, 4 pcs

Features:

• Designed with steel construction, white powder coated, lightweight and sturdy
• Designed to serve as the central distribution point for voice, data, video, audio, and security services for smaller residential structured wiring systems
• Allows for internal modules to be mounted horizontally or vertically facilitating easier layout and wiring of the system, while providing for optimum cable management
• Integrated snap-in module system enables users to quickly insert or move the internal modules
• Supports up to 4 ICCMSCMPR1 or ICCMSCMPR2 Cable Management Rings for organizing and routing cables
• Includes 4 top, 3 bottom, 4 rear, and 2 side knockouts for routing cables and 4 cable tie points
• Includes a knockout for an optional AC power outlet (not included) to provide power distribution
• Fits between 16" wall studs with 10 internal module mounting spaces or can be wall mounted
• Designed with a door latch and an optional door lock knockout
• Hinged door and NET MEDIA CENTER insert are reversible for opening from left or right
• Accommodates all of ICRESXXXXX residential modules
• Used with optional accessories including ICRDSDCAC2 distribution center rubber grommets, ICRESDCAC3 distribution center plastic grommets, and ICRDSDC2LK distribution center door lock
• Flush mounted door overlaps ¾" to conceal any uneven drywall cuts around the enclosure
• UL listed
