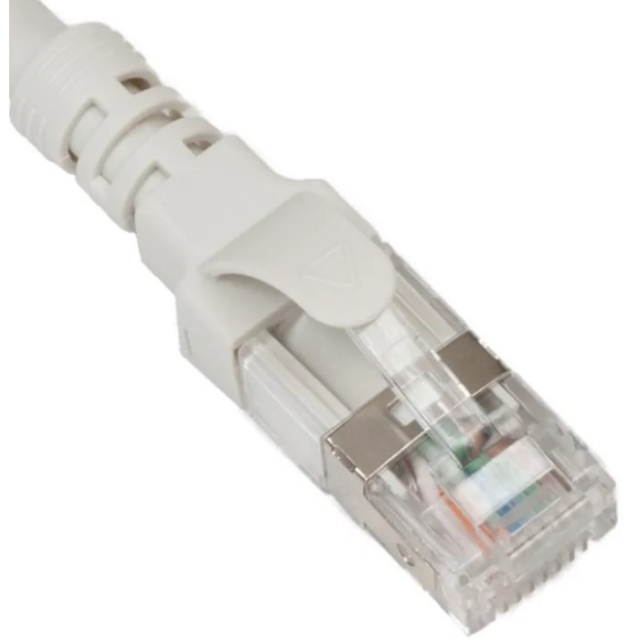

Buy ICC ICPCSG07WH, CAT6A U/FTP Patch Cord, White, 7'

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Color:: Color: White
Cable Length:: Cable Length: 7'

Features:

Component-rated CAT6A patch cords assuring high signal quality, minimal crosstalk and return loss, and minimizing alien crosstalk.
Creates a high-speed CAT6A Connection for cross and direct connects by patching cables runs to subsystems and equipment.
Designed with a low-profile, snagless boots for high-density applications.
Exceeds ANSI/TIA-568-C Category 6A connecting requirements.
Supports 10GbE bandwidth.
Shielded construction reduces EMI/RFI interference.
Compatible with lower Category 6 and 5e for U/FTP or Shielded cabling systems.
Same U/FTP patch cord for U/FTP or shielded applications.

ICC's CAT6A foiled twisted pair (U/FTP) patch cords exceed all performance requirements up to 500 MHz, and is ETL verified to ANSI/TIA-568-C.2 and UL listed. All ICC's CAT6A patch cords are backward compatible with Category 5e and 6 cabling systems.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Insulations	HDPE (Min. Thickness 0.153)
Insulators Diameter	1.03±0.10 mm
Aluminum Foil	50u x 12mm
Drain Wire	7 x 0.152mm
Jacket	75°C PVC
Jacket Diameter	0.248 ± 0.006 (6.3±0.15mm)
Shielded Modular Plug	8P8C
Contact	Phosphor Bronze, 50u" Gold Plating
Insulator	Polycarbonate, UL94V-2
Voltage Rating	300V
Temperature Rating	75°C
Dielectric Strength	DC 2.5 KV/2 sec or AC 1.75 KV/2 sec
Mutual Capacitance	5.6 nF/100m nominal
Pair to Ground	300 pF/100m/max
Conductor DC Resistance	14.2 ohms/km max at 25°C
DC Resistance Unbalance	4% max
Characteristics Impedance	100±15 ohms 1~500 MHz
Propagation Delay Skew	50ns/100m max. 1~500 MHz
Velocity of Propagation	70%
Length	7 FT
Color	White

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Insulations	HDPE (Min. Thickness 0.153)
Insulators Diameter	1.03±0.10 mm
Aluminum Foil	50u x 12mm
Drain Wire	7 x 0.152mm
Jacket	75°C PVC
Jacket Diameter	0.248 ± 0.006 (6.3±0.15mm)
Shielded Modular Plug	8P8C
Contact	Phosphor Bronze, 50u" Gold Plating
Insulator	Polycarbonate, UL94V-2
Voltage Rating	300V
Temperature Rating	75°C
Dielectric Strength	DC 2.5 KV/2 sec or AC 1.75 KV/2 sec
Mutual Capacitance	5.6 nF/100m nominal
Pair to Ground	300 pF/100m/max
Conductor DC Resistance	14.2 ohms/km max at 25°C
DC Resistance Unbalance	4% max
Characteristics Impedance	100±15 ohms 1~500 MHz
Propagation Delay Skew	50ns/100m max. 1~500 MHz
Velocity of Propagation	70%
Length	7 FT
Color	White

Note

Note: Please read description carefully. Do not base your order on the picture presented.
