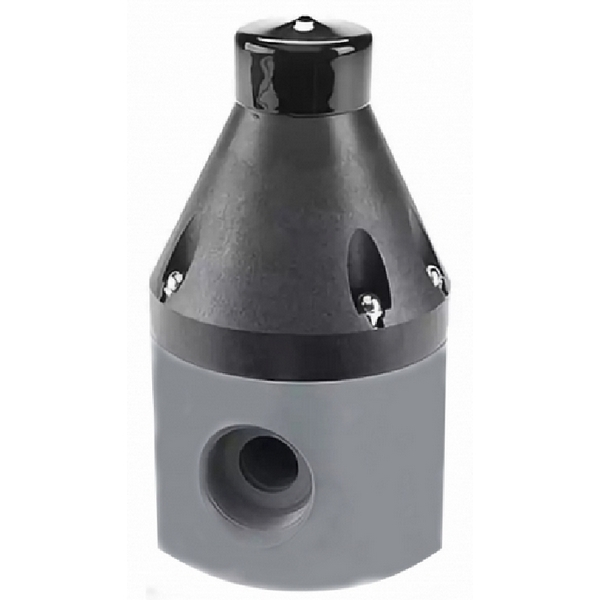

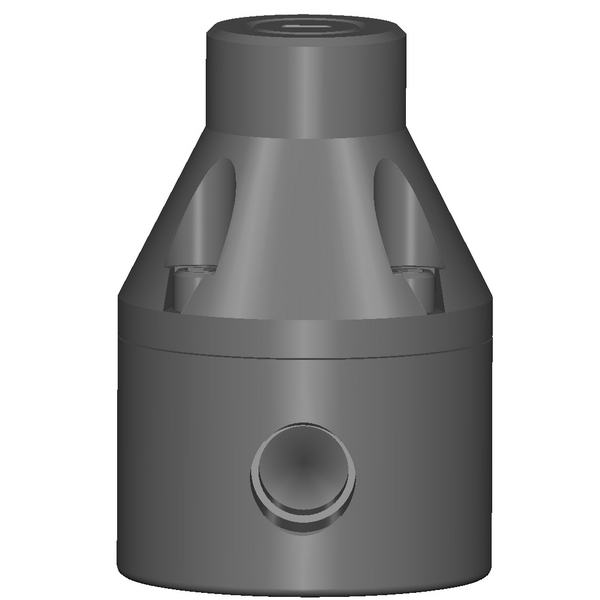

Griffco Valve, BPM038TV, M-Series 3/8" Back Pressure Valve PTFE, 150 psi Spring, Viton Diaphragm
Features:
- Anti-siphon function
- Solid, robust, machined construction
- Threaded Connection
- Robust, Machined Body Construction
- Molded Noryl top with integral hardware locking
- Valve body material - PTFE
- Viton Diaphragm
- Adjustable up to 150 psi
- Valve size 3/8"
- Tamper-resistant adjustment screw
- High reliability at affordable price
- Compact Size for OEM Applications
- Multiple Diaphragm Materials
- Long diaphragm life
- Factory or field settable
Valve design continue to enhance the performance of chemical feed systems by applying a continuous back pressure to the chemical feed pump, while also acting as an anti-siphonvalve. Construction ensures increased reliability in the rigorous service of municipal and industrial applications.
Operation

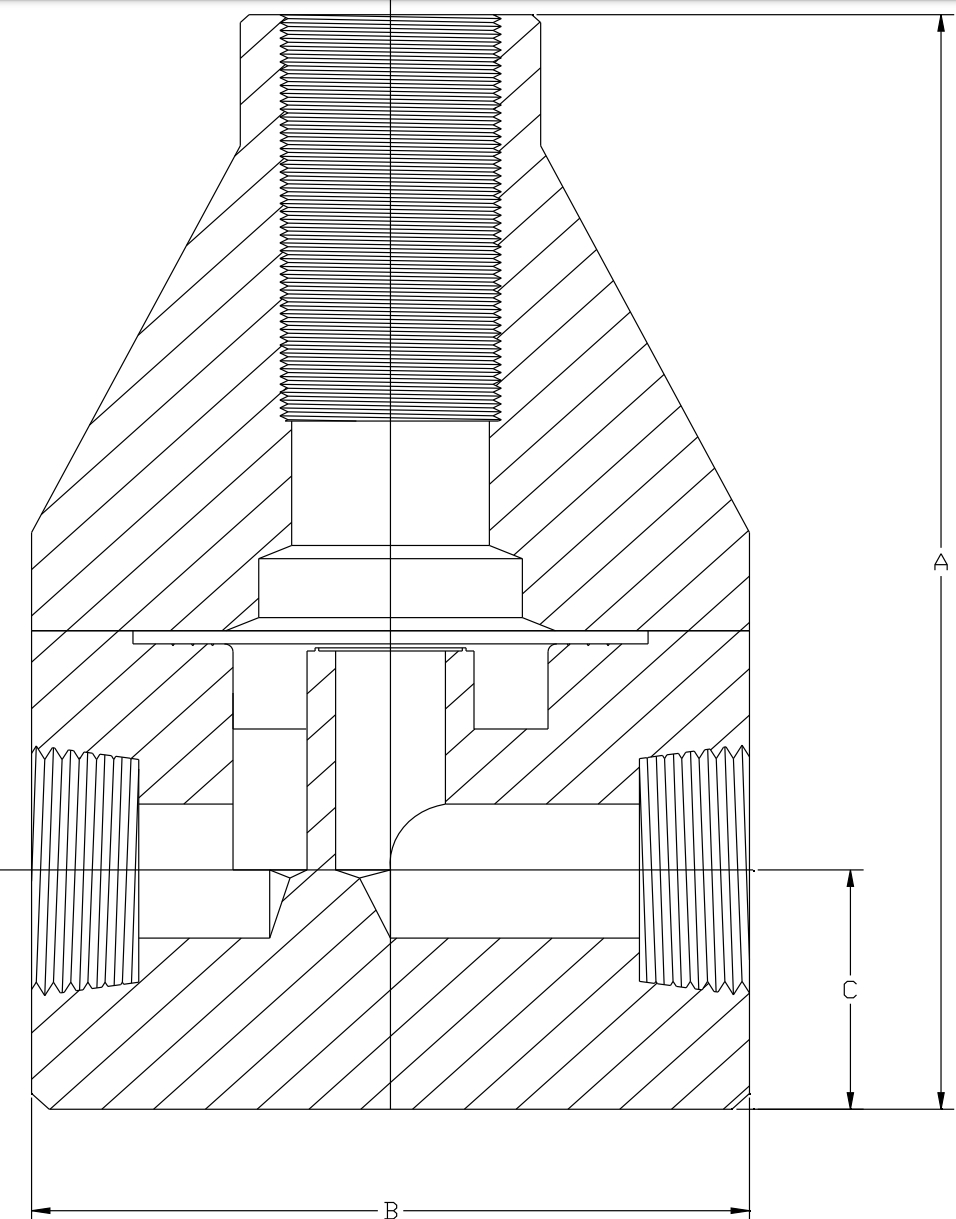

Griffco diaphragm back pressure valve apply positive discharge pressure to a metering pump system to prevent siphoning and eliminate varyingdosage rates caused by fluctuating downstream pressure. The diaphragm is held against the valve seat by an internal spring. When the preset pressure is exceeded, the diaphragm is forced up and chemical flows through the valve to the injection point.
The valve is preset for 50 psi, however it is field adjustable from 10 - 150 psi via the adjustment screw. Installation should be as close tothe injection point as possible to prevent chemical line drainage, and it is most important that all chemical system equipment such as pulsationdampeners and pressure gauges are between the pump and back pressure valve.
