| Volt |
| Vrms (AC + DC) | - Measurement Range: 1 to 1000 V phase to neutral
- Resolution: 0.1 V
- Accuracy: ±0.1% of nominal voltage
|
| Vpk | - Measurement Range: 1 to 1400 Vpk
- Resolution: 1 V
- Accuracy: 5% of nominal voltage
|
| Voltage Crest Factor (CF) | - Measurement Range: 1.0 > 2.8
- Resolution: 0.01
- Accuracy: ±5%
|
| Vrms1/2 | - Measurement Range: 1 to 1000 V phase to neutral
- Resolution: 0.1 V
- Accuracy: ±1% of nominal voltage
|
| Vfund | - Measurement Range: 1 to 1000 V phase to neutral
- Resolution: 0.1 V
- Accuracy: ±0.5% of nominal voltage
|
| Amps (AC + DC) |
| i430-Flex 1x | - Measurement Range: 5 to 6000 A
- Resolution: 1 A
- Accuracy: ±0.5% ±5 counts
|
| i430-Flex 10x | - Measurement Range: 0.5 to 600 A
- Resolution: 0.1 A
- Accuracy: ±0.5% ±5 counts
|
| 1mV/A 1x | - Measurement Range: 5 to 2000 A
- Resolution: 1 A
- Accuracy: ±0.5% ±5 counts
|
| 1mV/A 10x | - Measurement Range: 0.5 to 200 A (AC only)
- Resolution: 0.1 A
- Accuracy: ±0.5% ±5 counts
|
| Apk |
| i430-Flex | - Measurement Range: 8400 Apk
- Resolution: 1 Arms
- Accuracy: ±5%
|
| 1mV/A | - Measurement Range: 5500 Apk
- Resolution: 1 Arms
- Accuracy: ±5%
|
| A Crest Factor (CF) |
| Measurement Range | 1 to 10 |
| Resolution | 0.01 |
| Accuracy | ±5% |
| Amps1/2 |
| i430-Flex 1x | - Measurement Range: 5 to 6000 A
- Resolution: 1 A
- Accuracy: ±1% ±10 counts
|
| i430-Flex 10x | - Measurement Range: 0.5 to 600 A
- Resolution: 0.1 A
- Accuracy: ±1% ±10 counts
|
| 1mV/A 1x | - Measurement Range: 5 to 2000 A
- Resolution: 1 A
- Accuracy: ±1% ±10 counts
|
| 1mV/A 10x | - Measurement Range: 0.5 to 200 A (AC only)
- Resolution: 0.1 A
- Accuracy: ±1% ±10 counts
|
| Afund |
| i430-Flex 1x | - Measurement Range: 5 to 6000 A
- Resolution: 1 A
- Accuracy: ±0.5% ±5 counts
|
| i430-Flex 10x | - Measurement Range: 0.5 to 600 A
- Resolution: 0.1 A
- Accuracy: ±0.5% ±5 counts
|
| 1mV/A 1x | - Measurement Range: 5 to 2000 A
- Resolution: 1 A
- Accuracy: ±0.5% ±5 counts
|
| 1mV/A 10x | - Measurement Range: 0.5 to 200 A (AC only)
- Resolution: 0.1 A
- Accuracy: ±0.5% ±5 counts
|
| Hz |

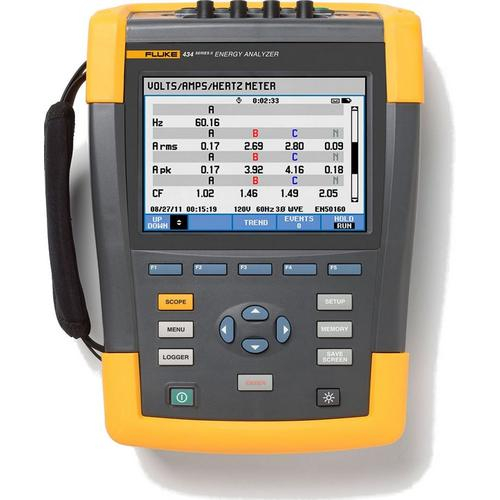

| Fluke 434 at 50 Hz Nominal | - Measurement Range: 42.50 to 57.50 Hz
- Resolution: 0.01 Hz
- Accuracy: ±0.01 Hz
|
| Fluke 434 at 60 Hz Nominal | - Measurement Range: 51.00 to 69.00 Hz
- Resolution: 0.01 Hz
- Accuracy: ±0.01 Hz
|
| Power (Watts (VA, var) |
| i430-Flex | - Measurement Range: Max 6000 MW
- Resolution: 0.1 W to 1 MW
- Accuracy: ±1% ±10 counts
|
| 1 mV/A | - Measurement Range: Max 2000 MW
- Resolution: 0.1 W to 1 MW
- Accuracy: ±1% ±10 counts
|
| Power Factor (Cos j/DPF) | - Measurement Range: 0 to 1
- Resolution: 0.001
- Accuracy: ±0.1% at nominal load conditions
|
| Harmonics |
| Harmonic Order (n) | DC, 1 to 50 Grouping: Harmonic groups according to IEC 61000-4-7 |
| Inter-Harmonic Order (n) | OFF, 1 to 50 Grouping: Harmonic and Interharmonic subgroups according to IEC 61000-4-7 |
| Volts % (f) | - Measurement Range: 0.0 to 100%
- Resolution: 0.1%
- Accuracy: ±0.1% ±n x 0.1%
|
| Volts % (r) | - Measurement Range: 0.0 to 100%
- Resolution: 0.1%
- Accuracy: ±0.1% ±n x 0.4%
|
| Volts % (Absolute) | - Measurement Range: 0.0 to 1000 V
- Resolution: 0.1 V
- Accuracy: ±5%
|
| Volts % (THD) | - Measurement Range: 0.0 to 100%
- Resolution: 0.1%
- Accuracy: ±2.5%
|
| Amps % (f) | - Measurement Range: 0.0 to 100%
- Resolution: 0.1%
- Accuracy: ±0.1% ±n x 0.1%
|
| Amps % (r) | - Measurement Range: 0.0 to 100%
- Resolution: 0.1%
- Accuracy: ±0.1% ±n x 0.4%
|
| Amps % (Absolute) | - Measurement Range: 0.0 to 600 A
- Resolution: 0.1 A
- Accuracy: ±5% ±5 counts
|
| Amps % (THD) | - Measurement Range: 0.0 to 100%
- Resolution: 0.1%
- Accuracy: ±2.5%
|
| Watts % (f or r) | - Measurement Range: 0.0 to 100%
- Resolution: 0.1%
- Accuracy: ±n x 2%
|
| Watts % (Absolute) | - Measurement Range: Depends on clamp scaling and V nominal
- Accuracy: ±5% ±n x 2% ±10 counts
|
| Watts % (THD) | - Measurement Range: 0.0 to 100%
- Resolution: 0.1%
- Accuracy: ±5%
|
| Phase Angle | - Measurement Range: -360 to 0°
- Resolution: 1°
- Accuracy: ±n x 1°
|
| Flicker |
| Plt, Pst, Pst (1 min) Pinst | - Measurement Range: 0.00 to 20.00
- Resolution: 0.01
- Accuracy: ±5%
|
| Unbalance |
| Volts % | - Measurement Range: 0.0 to 20.0%
- Resolution: 0.1%
- Accuracy: ±0.1%
|
| Amps % | - Measurement Range: 0.0 to 20.0%
- Resolution: 0.1%
- Accuracy: ±1%
|
| Mains Signaling |
| Threshold Levels | Threshold, limits and signaling duration is programable for two signaling frequencies |
| Signaling Frequency | - Measurement Range: 60 to 3000 Hz
- Resolution: 0.1 Hz
|
| Relative V % | - Measurement Range: 0 to 100%
- Resolution: 0.1%
- Accuracy: ±0.4%
|
| Absolute V3s (3 Second Average) | - Measurement Range: 0.0 to 1000 V
- Resolution: 0.1 V
- Accuracy: ±5% of nominal voltage
|
| General |
| Operating Temperature | - 32 to 104°F (0 to 40°C)
- 32 to 122°F (0 to 50°C) excluding battery
|
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Humidity | - 95% RH non-condensing at 50 to 86°F (10 to 30°C)
- 75% RH non-condensing at 86 to 104°F (30 to 40°C)
- 45% RH non-condensing at 104 to 122°F (40 to 50°C)
|
| Maximum Operating Altitude | - Up to 6666' (2000 m) for CAT IV 600 V, CAT III 1000 V
- Up to 10,000' (3000 m) for CAT III 600 V, CAT II 1000 V
- Maximum storage altitude 40,000' (12 km)
|
| Electro-Magnetic-Compatibility (EMC) | EN 61326 (2005-12) for emission and immunity |
| Interfaces | Mini-USB-B, Isolated USB port for PC connectivity SD card slot accessible behind instrument battery |
