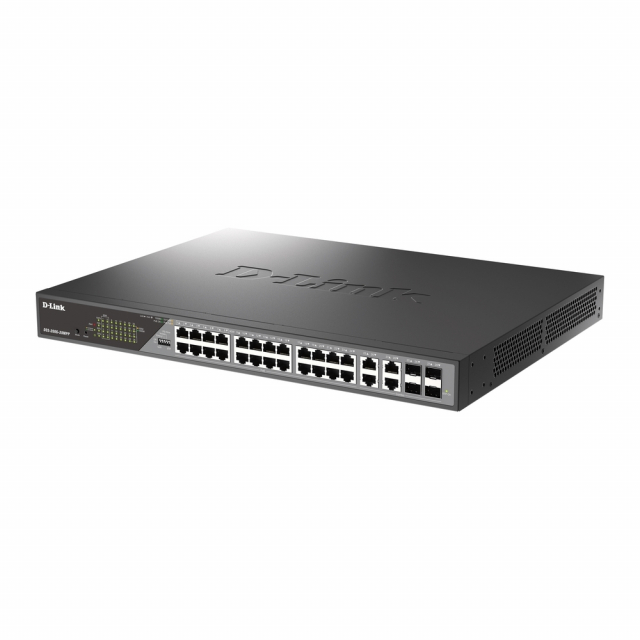

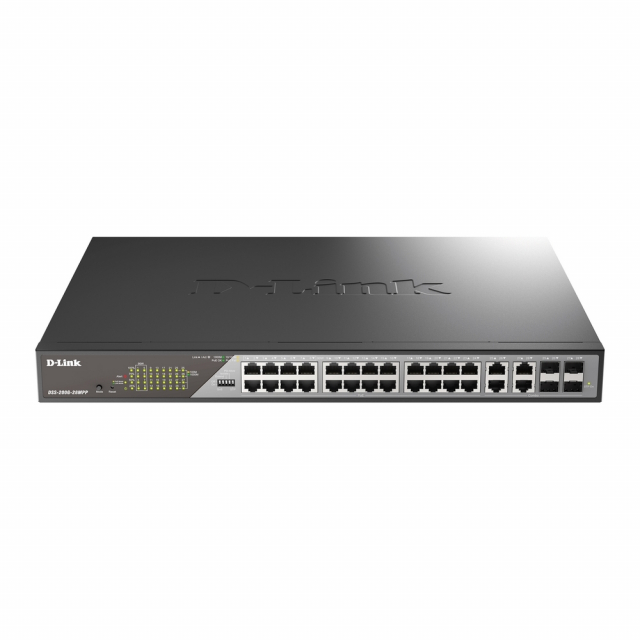

Buy D-Link DSS-200G-28MPP, 28-Port Gigabit Smart Managed PoE+ Switch

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

PoE Standards:: PoE Standards: IEEE 802.3af / IEEE 802.3at / IEEE 802.3bt
Number of Ports:: Number of Ports: 28

Features:

High PoE budgets and support for IEEE 802.3bt 90 W PoE
- 518 W PoE Power Budget
- 90 W max. per PoE port for ports 1 to 8
- 30 W max. per PoE port for ports 9 to 24
6 kV surge protection on all PoE ports
The Alarm Port and four-stage PoE usage indicator light
Smart Fan design
Surveillance traffic optimization
Auto-detect ONVIF devices
Built-in SNMP MIB
Surveillance VLAN
Easy deployment with automatic configuration
NDAA Compliant

Enjoy the Power of Next-Gen Surveillance Switch

Enhance your surveillance environment with the DSS-200G, a smart and easily installed device that delivers greater control and flexibility. Discover the capabilities of this intelligent tool that automates processes and adds intelligence to your network.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Acoustic

56 dB(A)

Dimensions

440 x 330 x 44 mm (17.32 x 12.99 x 1.73 in)

FAN

Humidity

Operating: 0% to 95% non-condensing
Storage: 0% to 95% non-condensing

Interfaces

4 x Combo 1000 Mbps
24 x 10/100/1000 Mbps PoE

LEDs Alarm

Yes

LEDs Link/Active/Speed (per port)

Yes

LEDs Power (per device)

Yes

MAC Address Table Size

8K entries

Maximum Forwarding Rate

41.67 Mpps

Maximum Heat Dissipation

209.16 BTU/hr

Maximum Power Consumption

23.52 W (PoE off)
579.3 W (PoE on)

MTBF

289,075 hours

Packet Buffer Size

4.1Mbits

PoE Power Budget

30 W max. per PoE port for ports 9 to 24
518 W
90 W max. per PoE port for ports 1 to 8

Power Input

100 to 240 V AC
50 to 60 Hz internal power supply

Standby Power Consumption

15.19 W

Switching Capacity

56 Gbps

Temperature

Operating: -5 to 50° C (23 to 122° F)
Storage: -40 to 70 °C (-40 to 158 °F)

Weight

4.71 kg (10.38 lbs)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Acoustic

56 dB(A)

Dimensions

440 x 330 x 44 mm (17.32 x 12.99 x 1.73 in)

FAN

Humidity

Operating: 0% to 95% non-condensing
Storage: 0% to 95% non-condensing

Interfaces

4 x Combo 1000 Mbps
24 x 10/100/1000 Mbps PoE

LEDs Alarm

Yes

LEDs Link/Active/Speed (per port)

Yes

LEDs Power (per device)

Yes

MAC Address Table Size

8K entries

Maximum Forwarding Rate

41.67 Mpps

Maximum Heat Dissipation

209.16 BTU/hr

Maximum Power Consumption

23.52 W (PoE off)
579.3 W (PoE on)

MTBF

289,075 hours

Packet Buffer Size

4.1Mbits

PoE Power Budget

30 W max. per PoE port for ports 9 to 24
518 W
90 W max. per PoE port for ports 1 to 8

Power Input

100 to 240 V AC
50 to 60 Hz internal power supply

Standby Power Consumption

15.19 W

Switching Capacity

56 Gbps

Temperature

Operating: -5 to 50° C (23 to 122° F)
Storage: -40 to 70 °C (-40 to 158 °F)

Weight

4.71 kg (10.38 lbs)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
