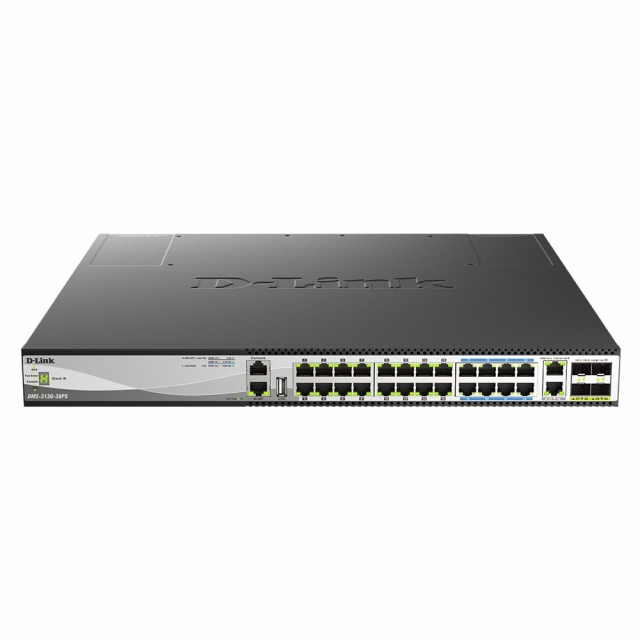

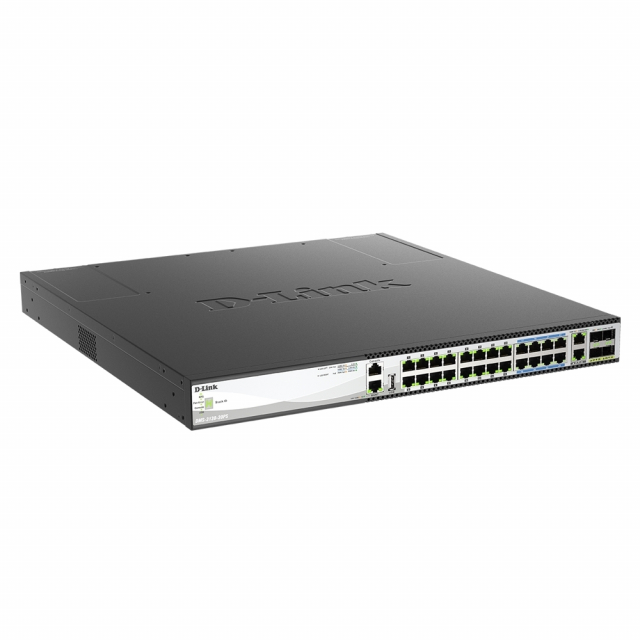

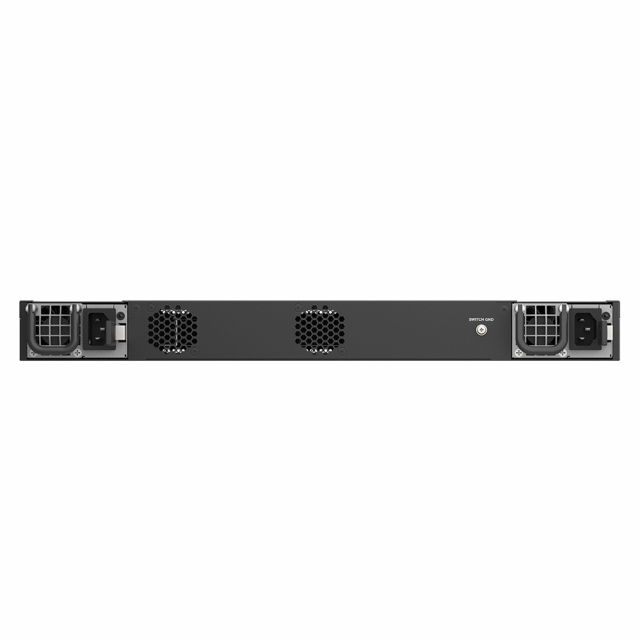

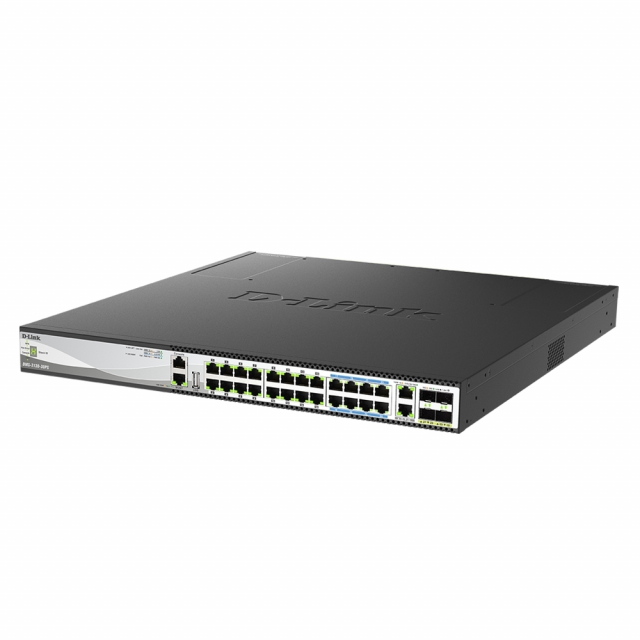

D-Link, DMS-3130-30PS, 30-Port Layer 3 Stackable Multi-Gigabit Managed PoE Switch

Features:

16 x 100M/1/2.5GBASE-T PoE+ ports + 8 x 100M/1/2.5/5GBASE-T PoE++ ports
2 x 100M/1/2.5/5/10GBASE-T ports and 4 x 10/25G SFP28 ports provide all the uplink capacity your network needs
PoE budget of 740W allows powering of numerous external devices (Up to 960W with dual powers)
Premium L2 and L3 features effortlessly improve network efficiency and reduce unnecessary data transfer
RIP/RIPngand OSFPv2/v3 dynamically map out your network, aiding data to get to its destination via the fastest route possible
Expand capacity in a flash with physical stacking up to 9 units
Smart Fan self-adjusts accordingly to maintain optimal operating temperatures
Support ERPS, Q-in-Q and 6 KV surge protection
Support 60W PoE compliancewith IEEE 802.3bt
Perpetual PoE and Fast PoE support delivers faster and uninterrupted power to connected devices even when the switch is booting
NDAA Compliant

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Console Port

10/100/1000BASE-T RJ-45 port for out-of-band CLI management

Interfaces

1 x Stacking Cost
1 x USB 2.0 Type A port
4 x Stacking Ports

Optional Redundant Power Supply

AC (DPS-PWR740AC) hot-swappable internal redundant power supplies
DC (DPS-PWR740DC) hot-swappable internal redundant power supplies

Performance

64 Byte Packet Forwarding Rate 298 Mpps
Packet Buffer Memory 4 MB

PoE Ports

16 x 100M/1/2.5GBASE-T PoE ports
2 x 100M/1/2.5/5/10GBASE-T ports
4 x 10/25G SFP28 ports
8 x 100M/1/2.5/5GBASE-T 60W PoE ports

RJ-45 Management Port

10/100/1000BASE-T RJ-45 port for out-of-band IP management

Standards

IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt

Switching Capacity

400 Gbps

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Console Port

10/100/1000BASE-T RJ-45 port for out-of-band CLI management

Interfaces

1 x Stacking Cost
1 x USB 2.0 Type A port
4 x Stacking Ports

Optional Redundant Power Supply

AC (DPS-PWR740AC) hot-swappable internal redundant power supplies
DC (DPS-PWR740DC) hot-swappable internal redundant power supplies

Performance

64 Byte Packet Forwarding Rate 298 Mpps
Packet Buffer Memory 4 MB

PoE Ports

16 x 100M/1/2.5GBASE-T PoE ports
2 x 100M/1/2.5/5/10GBASE-T ports
4 x 10/25G SFP28 ports
8 x 100M/1/2.5/5GBASE-T 60W PoE ports

RJ-45 Management Port

10/100/1000BASE-T RJ-45 port for out-of-band IP management

Standards

IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt

Switching Capacity

400 Gbps

Note: Please read description carefully. Do not base your order on the picture presented.
