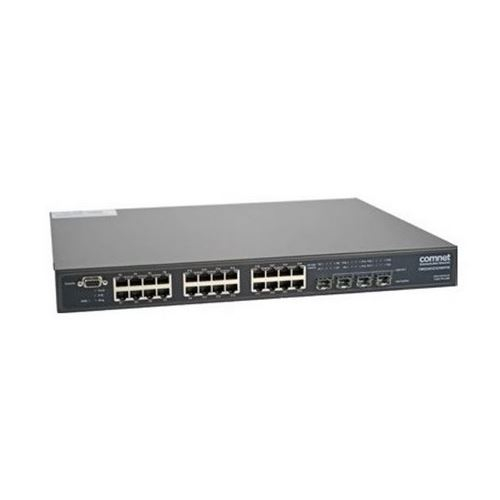

ComNet CWGE26FX2TX24MS Commercial Managed L2 Switch 2 SFP 2 Combo

Features:

• C-Ring (recovery time < 30ms over 250 units of connection)
• MSTP (RSTP/STP compatible) for Ethernet Redundancy
• G.8032 Ethernet Ring Protection System (ERPS)
• Optional 24 ports PSE fully compliant with IEEE802.3at standard, providing up to 30 Watts per port
• IEEE 1588v2 clock synchronization
• Provides HTTPS/SSH protocol to enhance network security
• IP-based bandwidth management
• Application-based QoS management
• Device Binding security function
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• ACL, TACACS+ and 802.1x User Authentication for security
• 9.6K Bytes Jumbo Frame
• SFP ports support DDM function
• Supports Modbus TCP Protocol
• Multiple notification for warning of unexpected event
• Web-based, Telnet, Console (CLI), and Windows utility (eConsole) configuration
• LLDP Protocol
• 19 inch rack mountable design

The CWGE26FX2TX24MS is a range of extended temperature commercial and industrial grade Managed Ethernet Switches. They provide twenty-four 10/100/1000BASE-T(X) ports with optional IEEE 802.3at PoE two of which are also gigabit combo ports supporting 100/1000FX SFP Modules. A further two 100/1000FX SFP ports are also included. All SFP ports utilize ComNet SFPs for fiber and connector type and distance. The CWGE26FX2TX24MS are redundant switches offering multiple Ethernet redundancy protocols to protect your applications from network interruptions or temporary malfunctions by redirecting transmission within the network.
