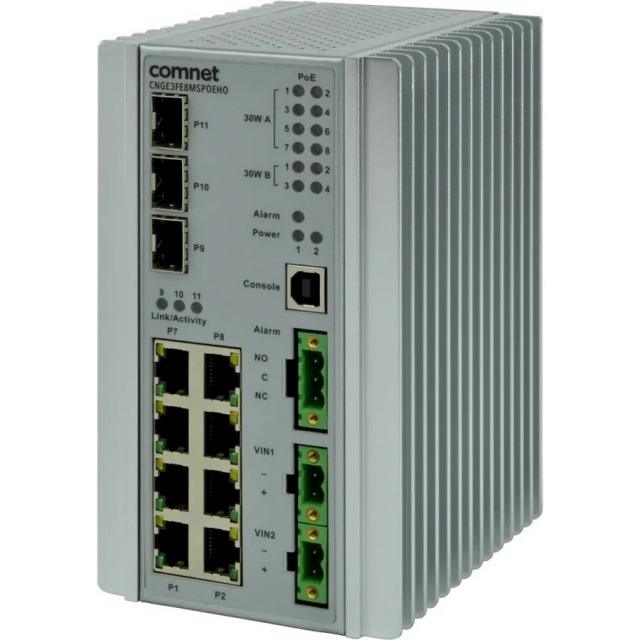

ComNet CNGE3FE8MSPOE/24 Hardened Managed L2+ PoE Switch 3 SFP

Comnet, CNGE3FE8MSPOE/24, Hardened Managed L2+ PoE Switch 3 SFP 8 RJ45 12/24VDC Power

Features:

• 3 x 100/1000Base-X SFP
• 8 x 10/100Base-T(X) RJ45
• 2 x SFP ports support 2.5 Gbps SFP modules for high-speed communication
• PoE Ports:
  • CNGE3FE8MSPOE provides 8 x IEEE802.3af/at compliant ports
  • CNGE3FE8MSPOEHO provides 4 x IEEE802.3af/at compliant ports and 4 x dual IEEE802.3at PoE 60 W ports
  • CNGE3FE8MSPOE/24 provides IEEE802.3at from 24 VDC input
• Network Redundancy & Protocols:
  • Fast Redundancy/Recovery - MSTP/RSTP/STP (IEEE802.1s/w/D)
  • ERPS G.8032
  • Supports static routing
  • Supports IPv6
• Security Features:
  • Provided HTTPS/SSH protocol enhances network security
  • Supports Device Binding security function
  • Supports ACL, 802.1x User Authentication
• Network Management:
  • Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN
  • Supports 9.6K Bytes Jumbo Frame
  • Web-based, Telnet and Console (CLI) configuration
  • Windows-based monitoring
• Designed for wall or DIN rail mount installations

Software Features:

• Port Guardian prevents network intrusion through intelligent physical port lockout
• Redundancy and Protocol Support:
  • STP/RSTP/MSTP (IEEE 802.1D/w/s)
  • Ethernet Ring Protection Switching (ERPS) (G.8032)
  • Loop Protection function
• QoS and Traffic Management:
  • Quality of Service (802.1p) for real-time traffic
  • Supports IP-based bandwidth management
  • Supports application-based QoS management
• VLAN and Multicast Features:
  • VLAN (802.1Q) with VLAN tagging and GVRP supported
  • Multicast VLAN Registration (MVR)
  • Supports IP Multicast Profile (IPMC)
  • IGMP v2/v3 (IGMP snooping support)
  • MLD v1/v2 for filtering multicast traffic
  • Voice VLAN support
• DHCP and IP Services:
  • DHCP Client/Server
  • DHCP Snooping
  • DHCP Relay
• Access and Security:
  • Custom User Access Rights (15 Levels)
  • Port configuration, status, statistics, monitoring, security
• Link Management:
  • Static and LACP Link Aggregation
  • Link Layer Discovery Protocol (LLDP)
• UPNP (Universal Plug and Play)

The CNGE3FE8MS Series has three 100/1000Base-X SFP* ports and eight 10/100Base-T(X) RJ45 ports. Two of the SFP ports support 2.5 Gbps SFPs for high speed communication in bandwidth intensive applications. All SFP ports utilize Comnet SFP modules for fiber and connector type and distance. The comnet by acre exclusive Port Guardian feature provides additional cyber security protection by enabling physical port lockout in the event that an existing cable is disconnected and prevents a potential network incursion using common spoofing techniques. An intrusion event is reported to the operator using SNMP. The series offers multiple Ethernet redundancy protocols which protect your applications from network interruptions or temporary malfunctions by redirecting transmission within the network. The switch provides advanced IP-based management that can limit the maximum bandwidth for each connected IP device, allowing the user to adjust usage. The CNGE3FE8MSPOE provides eight RJ45 ports each supporting up to thirty watts of power. On the CNGE3FE8MSPOEHO model, four of the eight PoE ports can support up to sixty watts of PoE power. All PoE ports are IEEE802.3at compliant.
