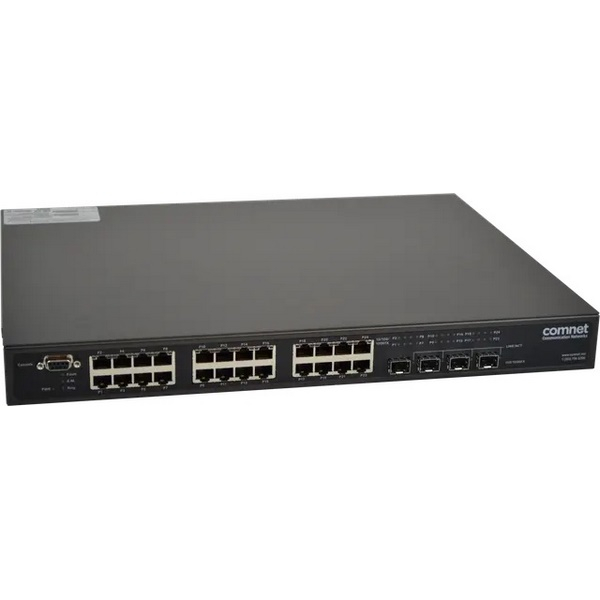

Comnet, CNGE26FX2TX24MSPOE1, Hardened Managed L2+ PoE Switch 2 SFP, 2 Combo 22 RJ45

Features:

Port Configuration:
- Supports 26 Gigabit Ports:
  - 2 x 100/1000Base-FX SFP Ports
  - 2 x Gigabit Combo Ports
  - 22 x 10/100/1000BASE-T(X) Ports
- Supports Jumbo frame up to 9.6K Bytes
- Low-profile 1-RU (1.75-inch) rack-mountable chassis for standard 19-inch racks
PoE Capabilities:
- IEEE 802.3at Compliant (PSE)
- Up to 30 W of PoE+ power per port
- 720 W total PoE power available
- Integrated power supply for both switch operation and PoE power sourcing
Network & Redundancy:
- Fast Redundancy/Recovery:
  - MSTP / RSTP / STP (IEEE 802.1s/w/D)
  - ERPS (G.8032)
  - C-Ring: Recovery time <30 ms, up to 250 switches per ring
- Supports multiple redundant network rings
- Supports SNTP client
- Supports LLDP (Link Layer Discovery Protocol)
- IGMP v2/v3 snooping for multicast filtering
- Supports IP-based bandwidth management
Security:
- Private VLAN support
- Supports ACL and 802.1X user authentication
- Device Binding security function
- HTTPS/SSH for secure access
Management:
- Supports IPv6
- Application-based QoS management
- Windows utility (eConsole) for centralized management
- Configurable via web, Telnet, or CLI (console ports)
- SNMP V1/V2c/V3, RMON, and 802.1Q VLAN for secure network management
Environmental:
- Operating temperature: -40°C to +60°C
- Multiple warning notifications for unexpected events

Applications:

HD Surveillance
High-Port Count Ethernet Hub Locations

The ComNet CNGE26FX2TX24MSPOE1 is an industrially hardened Managed Ethernet Switch. It provides IEEE 802.3at PoE to twenty-four 10/100/1000BASE-T(X) two of which are also gigabit combo ports supporting 100/1000FX SFP Modules. A further two 100/1000FX SFP* ports are also included. Up to 720 watts of PoE power is available for distribution across all 24 TX ports. All SFP ports utilize ComNet SFPs for fiber and connector type and distance. The CNGE26FX2TX24MSPOE1 is a redundant switch offering multiple Ethernet redundancy protocols to protect your applications from network interruptions or temporary malfunctions by redirecting transmission within the network.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Connectors

22 x RJ-45 Ports (10/100/1000Base-TX, Auto MDI/MDIX, PSE)
2 x RJ-45 Ports (10/100/1000Base-TX, Auto MDI/MDIX, PSE) 2 x SFP (100/1000Base-FX)
2 x SFP Ports (100/1000Base-FX)
1 x RS-232 Console Port (DB9, 115200bps, 8,N,1, )

Switch Properties

Switching Latency: 7 μs
Switching Bandwidth: 52 Gbps
Max VLANs: 256
IGMP Groups: 128 per VLAN
Port Rate Limiting: User Defined
MAC Table: 8000 entries
Priority Queues: 4
Processing: Store-and-Forward
Jumbo Frame: Up to 9.6K Bytes

Security Features

Device Binding Security
Enable/Disable Ports, MAC-based Port Security
802.1x Port-Based Network Access Control
802.1Q VLAN Tagging
Radius (Centralized Password Management)
SNMPv3 Encrypted Authentication
HTTPS/SSH Security
IP-Based Bandwidth Management
Application-Based QoS Management
TOS/Diffserv Support
GVRP Supported
DHCP Server/Client

Network Redundancy

C-Ring
ERPS (G.8032)
RSTP/STP/MSTP

Power

Operating Voltage: 100-240 VAC, 50-60 Hz
Power Consumption: 36 W
Current Protection: Overload Protected

PoE

Ports #1-24: IEEE 802.3at End-point (Alternative A mode)
Positive (VCC+): Pins 1, 2
Negative (VCC-): Pins 3, 6
Total Power Budget: 720 W

Electrical & Mechanical

LED Indicators: Power, Ring Master, C-Ring, Fault, PoE, PSE, RJ-45, SFP
Enclosure: 1RU, 19" Rack-Mountable
Size: 13.46 x 16.97 x 1.73 in (34.2 x 43.1 x 4.4 cm)
Shipping Weight: <13 lbs / 6 kg

Environmental

MTBF: >100,000 hours
Operating Temp: −40°C to +60°C
Storage Temp: −40°C to +85°C
Humidity: 5%-95% (non-condensing)

Regulatory Approvals

EMI: FCC Part 15, CISPR (EN55022) Class A
EMS: EN61000-4-2 to EN61000-4-11
Mechanical: IEC60068-2-27 (Shock), -2-32 (Free Fall), -2-6 (Vibration)

Ethernet Standards Supported

IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3at
IEEE 802.3x, 802.3ad
IEEE 802.1D, 802.1p, 802.1Q, 802.1w, 802.1s, 802.1x, 802.1AB

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Connectors

22 x RJ-45 Ports (10/100/1000Base-TX, Auto MDI/MDIX, PSE)
2 x RJ-45 Ports (10/100/1000Base-TX, Auto MDI/MDIX, PSE) 2 x SFP (100/1000Base-FX)
2 x SFP Ports (100/1000Base-FX)
1 x RS-232 Console Port (DB9, 115200bps, 8,N,1, )

Switch Properties

Switching Latency: 7 μs
Switching Bandwidth: 52 Gbps
Max VLANs: 256
IGMP Groups: 128 per VLAN
Port Rate Limiting: User Defined
MAC Table: 8000 entries
Priority Queues: 4
Processing: Store-and-Forward
Jumbo Frame: Up to 9.6K Bytes

Security Features

Device Binding Security
Enable/Disable Ports, MAC-based Port Security
802.1x Port-Based Network Access Control
802.1Q VLAN Tagging
Radius (Centralized Password Management)
SNMPv3 Encrypted Authentication
HTTPS/SSH Security
IP-Based Bandwidth Management
Application-Based QoS Management
TOS/Diffserv Support
GVRP Supported
DHCP Server/Client

Network Redundancy

C-Ring
ERPS (G.8032)
RSTP/STP/MSTP

Power

Operating Voltage: 100-240 VAC, 50-60 Hz
Power Consumption: 36 W
Current Protection: Overload Protected

PoE

Ports #1-24: IEEE 802.3at End-point (Alternative A mode)
Positive (VCC+): Pins 1, 2
Negative (VCC-): Pins 3, 6
Total Power Budget: 720 W

Electrical & Mechanical

LED Indicators: Power, Ring Master, C-Ring, Fault, PoE, PSE, RJ-45, SFP
Enclosure: 1RU, 19" Rack-Mountable
Size: 13.46 x 16.97 x 1.73 in (34.2 x 43.1 x 4.4 cm)
Shipping Weight: <13 lbs / 6 kg

Environmental

MTBF: >100,000 hours
Operating Temp: −40°C to +60°C
Storage Temp: −40°C to +85°C
Humidity: 5%-95% (non-condensing)

Regulatory Approvals

EMI: FCC Part 15, CISPR (EN55022) Class A
EMS: EN61000-4-2 to EN61000-4-11
Mechanical: IEC60068-2-27 (Shock), -2-32 (Free Fall), -2-6 (Vibration)

Ethernet Standards Supported

IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3at
IEEE 802.3x, 802.3ad
IEEE 802.1D, 802.1p, 802.1Q, 802.1w, 802.1s, 802.1x, 802.1AB
