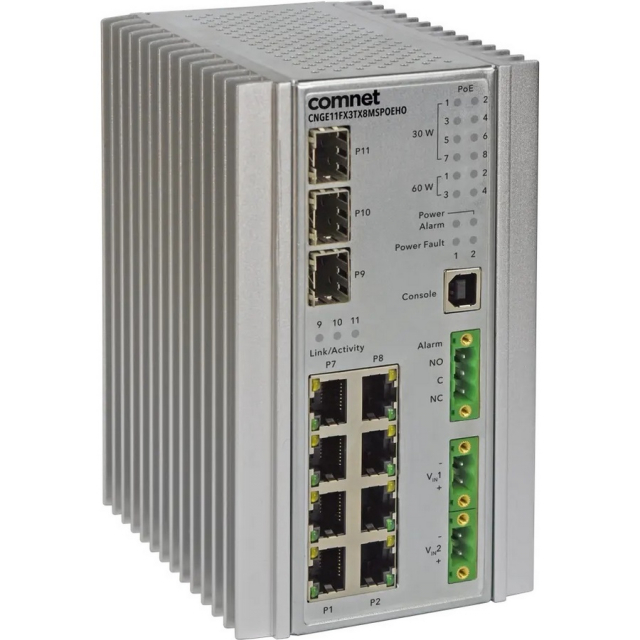

ComNet CNGE11FX3TX8MSPOEHO Hardened Managed L2+ Dual at PoE Switch

Comnet, CNGE11FX3TX8MSPOEHO, Hardened Managed L2+ Dual .at PoE Switch 3 SFP 8 RJ45

Features:

• 3 × 100/1000Base-X SFP
• 8 × 10/100/1000Base-T(X) RJ45
• 2 × SFP ports support 2.5 Gbps SFP modules for high speed communication
• CNGE11FX3TX8MSPOE provides 8 × IEEE802.3af/at compliant ports
• CNGE11FX3TX8MSPOEHO provides 4 × IEEE802.3af/at compliant ports and 4 × dual IEEE802.3at PoE 60 W ports
• CNGE11FX3TX8MSPOE/24 provides IEEE802.3at from 24 VDC input
• Fast redundancy/recovery – MSTP/RSTP/STP (IEEE802.1s/w/D) and ERPS G.8032
• Supports static routing
• Supports IPV6
• Provided HTTPS/SSH protocol enhances network security
• Supports device binding security function
• Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN network management
• Supports ACL, 802.1x user authentication for security
• Supports 9.6K bytes jumbo frame
• Web-based, Telnet and Console (CLI) configuration, and Windows-based monitoring
• Designed for wall or DIN rail mount installations

Software Features:

• Port Guardian prevents network intrusion through intelligent physical port lockout
• STP/RSTP/MSTP (IEEE 802.1D/w/s)
• Ethernet Ring Protection Switching (ERPS) (G.8032)
• Quality of Service (802.1p) for real-time traffic
• VLAN (802.1Q) with VLAN tagging and GVRP supported
• IGMP v2/v3 (IGMP snooping support) and MLD v1/v2 for filtering multicast traffic
• Supports IP-based bandwidth management
• Supports application-based QoS management
• Port configuration, status, statistics, monitoring, security
• DHCP Client/Server, DHCP Snooping, DHCP Relay
• Custom User Access Rights (15 Levels)
• Static and LACP Link Aggregation
• Supports Loop Protection function
• Multicast VLAN Registration (MVR)
• Supports IP Multicast Profile (IPMC)
• Link Layer Discovery Protocol (LLDP)
• Voice VLAN support
• UPNP (universal plug and play)

The comnet by acre CNGE11FX3TX8MS Series has three 100/1000Base-X SFP* ports and eight 10/100/1000Base-T(X) RJ45 ports. Two of the SFP ports support 2.5 Gbps SFPs for high speed communication in bandwidth intensive applications. All SFP ports utilize comnet by acre SFP modules for fiber and connector type and distance. An intrusion event is reported to the operator using SNMP. The series offers multiple Ethernet redundancy protocols which protect your applications from network interruptions or temporary malfunctions by redirecting transmission within the network. The comnet by acre exclusive Port Guardian feature provides additional cyber security protection by enabling physical port lockout in the event that an existing cable is disconnected and prevents a potential network incursion using common spoofing techniques. The switch provides advanced IP-based management that can limit the maximum bandwidth for each connected IP device, allowing the user to adjust usage. The CNGE11FX3TX8MSPOE provides eight RJ45 ports each supporting up to thirty watts of power. On the CNGE11FX3TX8MSPOEHO model, four of the eight PoE ports can support up to sixty watts of PoE power. All PoE ports are IEEE802.3at compliant.
