Altronix AL176ULX Access Control Power Supply Charger Single Output
Brand:
Altronix
Part #:
AL176ULX
Condition:
Brand New
Brand NewChoose Type
2 PTC Class 2 Outputs / 12/24VDC at 1A / 24VAC / BC100 Enclosure / Includes Plugin Transformer 2 PTC Class 2 Outputs / 12/24VDC at 1A / 115VAC / BC300 Enclosure 2 PTC Class 2 Outputs / 12/24VDC at 1.75A / 115VA / BC100 Enclosure 2 PTC Class 2 Outputs / 12/24VDC at 1.75A / Board 2 PTC Class 2 Outputs / 12/24VDC at 1.75A / 115VAC / BC300 Enclosure Single PTC Class 2 Output / 12/24VDC at 1.75A / 115VAC / BC300 Enclosure
$236.20 /Each
$321.83 You save $85.63 27%
Manufacturer warranty Description
Altronix, AL176ULX, Access Control Power Supply Charger, Single PTC Class 2 Output, 12/24VDC at 1.75A, 115VAC, BC300 Enclosure

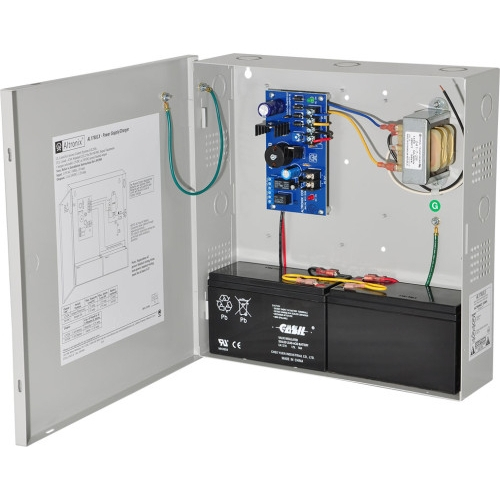

Altronix AL176ULX is a single output Power Supply/Charger that converts a 115VAC 50/60Hz input into a PTC protected 12VDC or 24VDC output.
Technical details
Main features
- Input Input 115VAC/60Hz, 0.6A.
- Output 12VDC or 24VDC selectable output. 1.75A supply current. Class 2 Rated power-limited output. PTC protected output, rated at 2.5A. Filtered and electronically regulated output. Short circuit and thermal overload protection.
- Type Single PTC Class 2 Output / 12/24VDC at 1.75A / 115VAC / BC300 Enclosure
- Relative Humidity 85% +/- 5%.
- Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
- Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current: 0.4A. (Batteries are sold separately).
- Operating 0ºC to 49ºC (32ºF to 120ºF).
- BTU/Hr. (approx.) 12VDC: 11 BTU/Hr. 24VDC: 22 BTU/Hr.
- Supervision AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts).
- System AC input VA requirement 69VA
- Visual Indicators AC input and DC output LED indicators.
