Altronix
Access Control Power Supply Charger 2 PTC Outputs
$200.50 /Each
$272.66 You save $72.16 26%
Manufacturer warranty

Description

Altronix, AL175UL, Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC at 1.75A, 115VA, BC100 Enclosure

AL175UL Includes Only:

  • Access Control Power Supply Charger
  • Mounting hardware

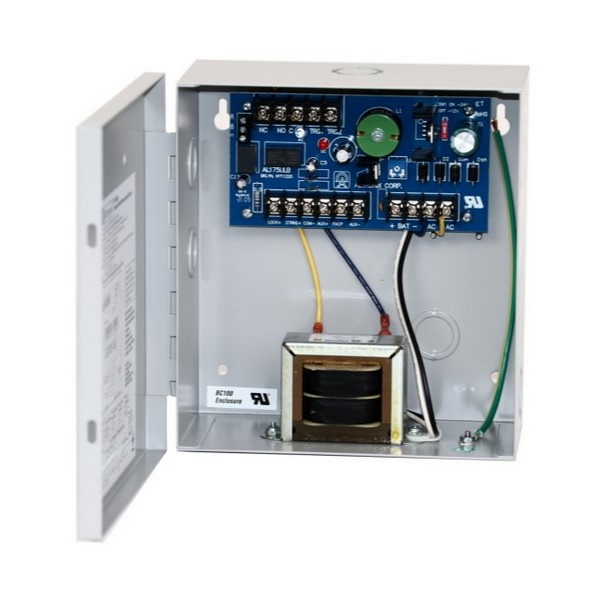

Altronix AL175UL Switching Power Supply/Charger converts a 115VAC 60Hz input into two (2) individually PTC protected 12VDC or 24VDC outputs.

$200.50 /Each
$272.66 You save $72.16 26%
Typically In Stock
Check availability

Technical details

Main features
  • Input Input 115VAC, 60Hz, 0.6A. Access control trigger input.
  • Output 12VDC or 24VDC selectable outputs. 1.75A supply current. Two (2) Class 2 Rated power limited outputs. Fail-Safe/Fail-Secure lock output (switched). Auxiliary power output (unswitched). PTC protected outputs, rated at 2.5A. Filtered and electronically regulated output. Short circuit and thermal overload protection.
  • Type 2 PTC Class 2 Outputs / 12/24VDC at 1.75A / 115VA / BC100 Enclosure
  • Relative Humidity 85% +/- 5%
  • Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
  • Battery Charging Maximum charge current: 400mA. Automatic switch over to stand-by battery when AC fails. (Batteries are sold separately).
  • Operating 0ºC to 49ºC (32ºF to 120ºF).
  • BTU/Hr. (approx.) 12VDC: 11 BTU/Hr. 24VDC: 22 BTU/Hr.
  • Supervision AC fail supervision (form "C" contacts). Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
  • System AC input VA requirement 69VA
  • Visual Indicators AC input and DC output LED indicators.
