Altronix AL125ULP Access Control Power Supply Charger 2 PTC Outputs
Brand:
Altronix
Part #:
AL125ULP
Condition:
Brand New
Brand NewChoose Type
2 PTC Class 2 Outputs / 12/24VDC at 1A / 24VAC / BC100 Enclosure / Includes Plugin Transformer 2 PTC Class 2 Outputs / 12/24VDC at 1A / 115VAC / BC300 Enclosure 2 PTC Class 2 Outputs / 12/24VDC at 1.75A / 115VA / BC100 Enclosure 2 PTC Class 2 Outputs / 12/24VDC at 1.75A / Board 2 PTC Class 2 Outputs / 12/24VDC at 1.75A / 115VAC / BC300 Enclosure Single PTC Class 2 Output / 12/24VDC at 1.75A / 115VAC / BC300 Enclosure
$166.00 /Kit
$238.60 You save $72.60 30%
Manufacturer warranty Description

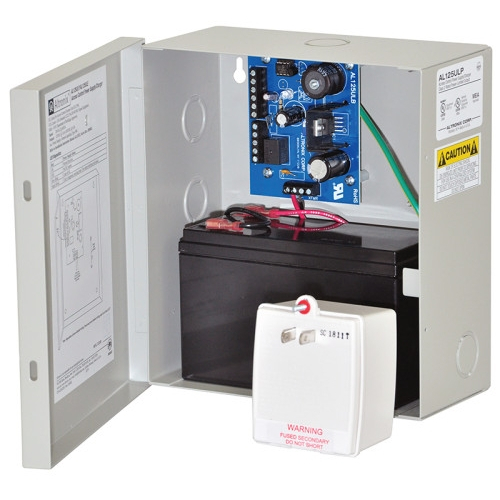

Altronix, AL125ULP, Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC at 1A, 24VAC, BC100 Enclosure, Includes Plugin Transformer
AL125ULP Includes Only:
- Power supply
- Plug-in transformer
- Enclosure and battery leads
- Mounting hardware
Features:
- Two (2) 12VDC or 24VDC Class 2 Rated Power-Limited Outputs
- Built-in charger for sealed lead acid or gel type batteries
- Instantaneous transfer to stand-by batteries
- Short circuit and overload protection
- AC input and unit status indicator on the front panel
- Normally Open [NO] trigger input
- Supervised Fire Alarm Disconnect (Latching with reset or Non-Latching)
- UL Listed in the U.S. and Canada
- NFPA and MEA Approved
AL125ULP is a Two (2) Output Switching Power Supply/Charger that converts a 24VAC at 40VA input, into two (2) individually PTC protected 12VDC or 24VDC outputs.
Technical details
Main features
- Input 24VAC, 40VA from UL Listed, Class 2 transformer. Access control trigger input.
- Output 12VDC at 1A or 24VDC at 0.5A selectable outputs. Two (2) Class 2 Rated power limited outputs. Fail-Safe/Fail-Secure lock output (switched). Auxiliary power output (unswitched). PTC protected outputs, rated at 2.5A. Filtered and electronically regulated output. Short circuit and thermal overload protection.
- Type 2 PTC Class 2 Outputs / 12/24VDC at 1A / 24VAC / BC100 Enclosure / Includes Plugin Transformer
- Relative Humidity 85% +/- 5%.
- Storage - 20° C to 70ºC ( - 4° F to 158° F).
- Battery Charging Built-in charger for sealed lead acid or gel type batteries. Maximum charge current: 400mA. Automatic switch over to stand-by battery when AC fails. (Batteries are sold separately).
- Operating 0° C to 49° C (32° F to 120° F).
- BTU/Hr. (approx.) 12VDC: 6 BTU/Hr. 24VDC: 6 or 12 BTU/Hr.
- Supervision Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
- Indicator (LED) Unit Status: Normal / No Output / Loss of AC / Triggered.
