AT-X220-52GP-10 Includes Only:

Switch
19 inch rack-mount brackets

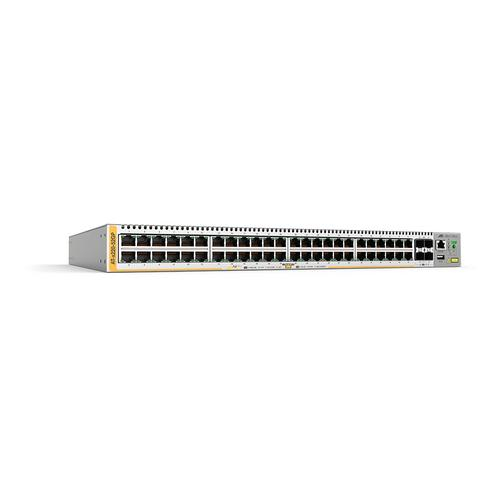

This managed switch features 48 x 10/100/1000T PoE+ ports and 4 x 100/1000X SFP uplinks. A comprehensive feature-set, and built in security, make it ideal for high-density user and device connectivity at the network edge.

48-port 10/100/1000T-POE+ switch with 4 SFP uplink ports and single fixed PSU, with US power cord.

Features:

AlliedWare Plus operating system
Autonomous Management Framework (AMF) node
Active Fiber Monitoring
Ethernet Protection Switched Ring (EPSRing)
G.8032 Ethernet Ring Protection Switching (ERPS)
PoE power budget of 740 Watts
Continuous Power over Ethernet (PoE+)
Static routing and RIP
DHCP snooping
IEEE 802.1x/MAC/Web authentication support
Loop Protection
Eco-friendly
Web-based Graphical User Interface (GUI)

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Dimensions & Weight
Depth	35.9 cm
Height	4.4 cm
Weight	5.8 kg
Width	44.1 cm
Environmental Parameters
Humidity Range Operating	5 - 90% (non-condensing)
Humidity Range Storage	5 - 95% (non-condensing)
Max Operating Temperature	50 °C
Max Storage Temperature	70 °C
Min Operating Temperature	0 °C
Min Storage Temperature	-25 °C
Expansion / Connectivity
Interfaces	48 x 10/100/1000 Base-T RJ-45 24 ports (PoE+) / 48 ports (PoE) - 30 W / 4 x 1000Base-X SFP / 1 x console RJ-45
General
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+, Extensible Authentication Protocol (EAP)
Capacity	Configurable VLANs: 4094 / Priority queues: 8
Device Type	Switch - 52 ports - L3 - managed
Enclosure Type	Rack-mountable 1U
Encryption Algorithm	DES, Triple DES, RSA, MD5, AES, SSL, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, DSA, ECDSA, SHA-2, TLS 1.2, RNG, CRL, CCM, CMAC, GCM, XTS, DRBG
Flash Memory	128 MB
Jumbo Frame Support	10KB
MAC Address Table Size	16000 entries
Performance	Switching fabric speed: 104 Gbps / Forwarding rate: 77.4 Mpps / Latency (10 Mbps): 35.1 µs / Latency (100 Mbps): 5.5 µs / Latency (1 Gbps): 2.6 µs
PoE Budget	740 W
Ports	48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)	PoE+
RAM	512 MB DDR SDRAM
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, SNMP 6, SSH 6, NTP
Routing Protocol	RIP, RIP-2, IGMPv2, IGMP, static IP routing, IGMPv3, RIPng, MLDv2, MLD, CIDR
Subtype	Gigabit Ethernet
Power
Electric Current Required	1 A
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50 - 60 Hz)
Software / System Requirements
Software	Alliedware Plus

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions & Weight
Depth	35.9 cm
Height	4.4 cm
Weight	5.8 kg
Width	44.1 cm
Environmental Parameters
Humidity Range Operating	5 - 90% (non-condensing)
Humidity Range Storage	5 - 95% (non-condensing)
Max Operating Temperature	50 °C
Max Storage Temperature	70 °C
Min Operating Temperature	0 °C
Min Storage Temperature	-25 °C
Expansion / Connectivity
Interfaces	48 x 10/100/1000 Base-T RJ-45 24 ports (PoE+) / 48 ports (PoE) - 30 W / 4 x 1000Base-X SFP / 1 x console RJ-45
General
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+, Extensible Authentication Protocol (EAP)
Capacity	Configurable VLANs: 4094 / Priority queues: 8
Device Type	Switch - 52 ports - L3 - managed
Enclosure Type	Rack-mountable 1U
Encryption Algorithm	DES, Triple DES, RSA, MD5, AES, SSL, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, DSA, ECDSA, SHA-2, TLS 1.2, RNG, CRL, CCM, CMAC, GCM, XTS, DRBG
Flash Memory	128 MB
Jumbo Frame Support	10KB
MAC Address Table Size	16000 entries
Performance	Switching fabric speed: 104 Gbps / Forwarding rate: 77.4 Mpps / Latency (10 Mbps): 35.1 µs / Latency (100 Mbps): 5.5 µs / Latency (1 Gbps): 2.6 µs
PoE Budget	740 W
Ports	48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)	PoE+
RAM	512 MB DDR SDRAM
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, SNMP 6, SSH 6, NTP
Routing Protocol	RIP, RIP-2, IGMPv2, IGMP, static IP routing, IGMPv3, RIPng, MLDv2, MLD, CIDR
Subtype	Gigabit Ethernet
Power
Electric Current Required	1 A
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50 - 60 Hz)
Software / System Requirements
Software	Alliedware Plus

Note

Note: Please read description carefully. Do not base your order on the picture presented.
