| Hardware | Intel CPU: i7-(8th Generation) : DDR4 32GB RAM, HDD: 2.5" 500GB SSD |
| OS | Linux |
| Maximum Number of Faces in Database | 50,000 |
| Network | 10/100Mb/1Gb Network |
| Maximum Number of Devices Connecting | Up to: 256 |
| Power Input | 100-240V AC |
| Power Consumption | Max. 90W |
| Dimensions | 250 x 44.2 x 225 mm |
| Weight | 4 KG |
| Saftity Certifications | CE, FCC, VCCI |
| System |

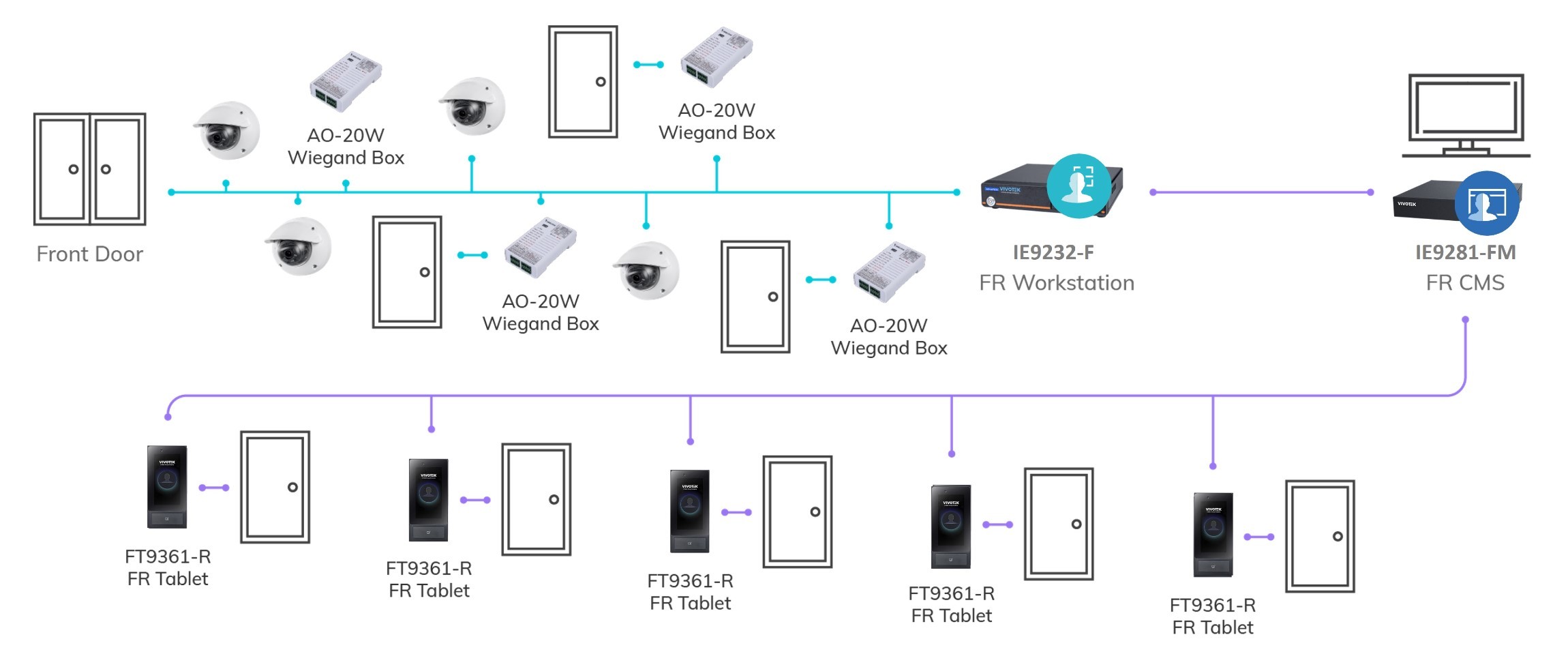

| Architecture | Three Tier Server-client system:- Web Server
- Application Server
- Database Server
|
| Supported OS | Ubuntu Server 20.04 |
| Supported Protocols | HTTP & HTTPS |
| Supported Hypervisors | VMWare, Hyper-V, Virtual Box |
| Container Type | Docker |
| Database Type | MongoDB |
| System Security | - Single device login
- Renewable session token
- Hardened HTTPS
|
| Management Interface |
| Interface | Using Web client |
| Supported Browsers | - Google Chrome
- Mozilla Firefox
|
| Languages | - English
- Japanese
- Traditional Chinese
|
| Environmental Adaptability |
| Camera Installation Height | - 3.0 meters max. camera height
- Mounting position within 10 degrees inclination
|
| Supported Image Modes | Color & Monochrome |
| Supported Devices & Integrations |
| I/O Relay | - Moxa E1214
- Advantech ADAM 60XX
- VIVOTEK AO-20W I/O Device
|
| IP-to-Wiegand Converter | VIVOTEK AO-20W Wiegand Box |
| HTTP Notifications | Send customized GET/POST HTTP messages |
| Others | Use VAST Face RESTful API |
| Persons of Interest Management (POI) |
| POI Management | - Enroll person using Web client
- Manage face profiles database through Web Portal
|
| POI Authentication | - Using Face as a credential
- Using Card Number
|
| POI Groups | - Default groups: VIP, Blacklist, Staff
- User defined person groups
|
| POI Batch Enrollment | Supports bulk enrollment using Excel & .JPEG files |
| Enrollment Photo | Min. face size = 200 x 200 pixel |
| Requirements | 1 MB Max. photo size (.JPG or .PNG) |
| POI Profile Information | Name, ID #, card #, job position, email, phone, POI group(s), and expiration date |
| POI Reports |
| Investigation Reports | Generate face recognition reports and filter events by:- Location
- Time period
- Person’s name
- POI Group
- POI type (enrolled or stranger)
|
| Attendance Reports | Generate staff clocking reports and filter events by:- Clock-in time
- Clock-out time
- Stay length
- Late Arrival
- Early Leave
|
| Actions Reports | Generate a report for which pre-defined actions were triggered in response to an event |
| Export Data | Export results to Excel file |
| Trigger Rules and System Actions |
| Rule Engine | Rule based engine to trigger single or multiple system actions based on:- Event Location
- Schedule
- Detection time period
- Specific POI profile
- POI face group affiliation
- Person type (enrolled or stranger)
- POI is (not) a member of a group
|
| Supported System Actions | - Trigger I/O Relay
- Trigger IP-to-Wiegand converter
- Send HTTP GET/POST command
- WebSocket notification
|
| System Users Management |
| System Users | Register user accounts using Name, E-Mail address & Phone number |
| System User Groups | - System Administrator
- Super User
- Person Manager
- Report Viewer
- Welcome Page
|
| System Inter-Compatibility |
| Supported Products | - VIVOTEK VAST2 VMS/ CMS
- VIVOTEK VAST Face CMS
- VIVOTEK VAST FaceVisitor
|
| Face Recognition Verticals |
| Possible Applications | - Identify potential troublemakers (shoplifters, criminals or any other barred individuals)
- Detect VIP members upon arrival to deliver a tailored experience
- Provide physical entry to commercial buildings, residences, and other rooms
- Contactless staff clock in system
- Verify visitor’s identity
|
