Thor Broadcast, F-8HD-TVI-TxRx, 8 Channel HD-TVI / HD-CVI Up to 1080p Video Over Optical Fiber Transmitter and Receiver Set
F-8HD-TVI-TxRx Includes Only:
Features:
- Video Channel: Eight independent unidirectional channels
- 8 x HD-TVI or AHD-H or AHD-M or AHD-L or HD-TVI 720P & 1080Por HD-CVI 720P & 1080P
- Data Formats: 1-ch reverse RS485, ( RS422/RS232-optional )
- Transmission Distance: 20km
- Fiber Type: Single-mode Simplex
- CRAFT: Uncompressed technology VIDEO SPEC: 1080P
- Supports HDTV highest resolution 1080P
- 10-bit digital video encoding and uncompressed transmission technology
- High quality commercial grade
- System status, power and other parameters are monitored via LED indicator lights
- Compact size
- Excellent cost performance
- SMT Surface Mount Technology
- Stand-alone or rack-mount
- Lower power consumption
- Plug and play convenience and simplicity
While many current video deployments are using digital transmission systems; legacy analog systems are still relevant and less expensive than their more current counterparts. Thor Fiber now has a full line of less expensive, commercial-grade Video Over Fiber systems in easy-to-use kits. Electronic and optical adjustments are never required with these automated plug-and-play units. LED indicators are provided for instant monitoring of the system status. Compatible with AHD-H, AHD-M, AHD-L / HD-TVI 720P & 1080P / HD-CVI 720P & 1080P. The optical module and core circuit are high-quality commercial-level components that have unparalleled stability, and all-optical & electrical interfaces match or exceed international standards.

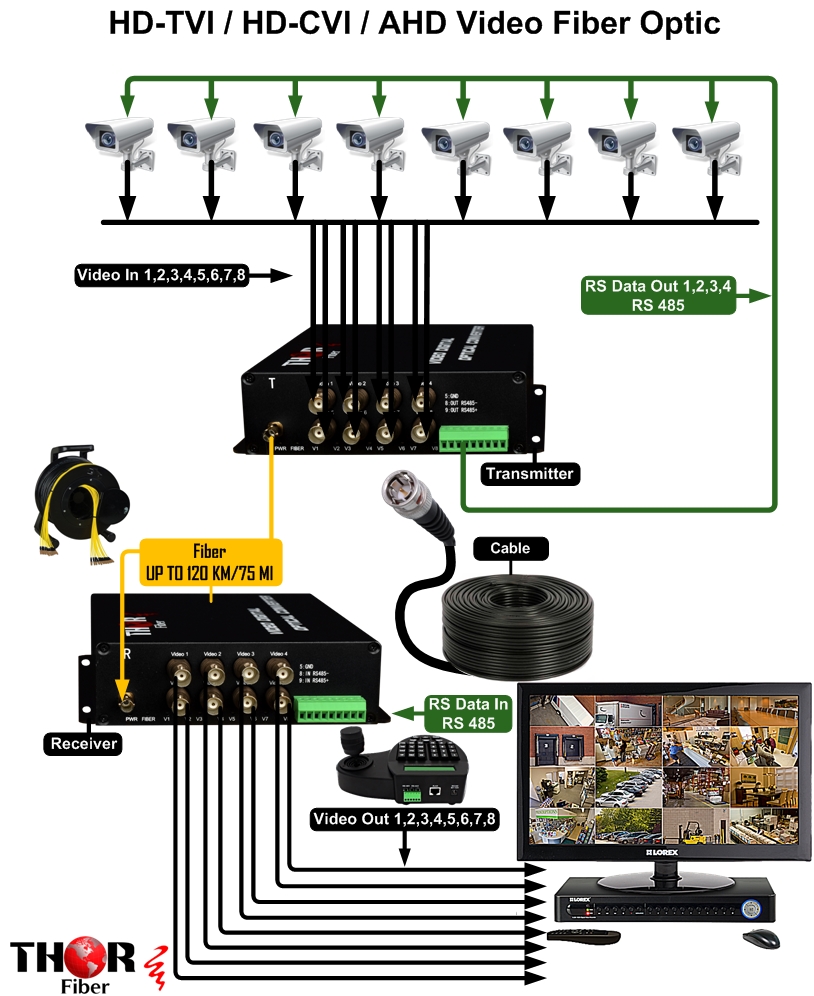

The H-8HD-TVI-1D-TX/RX sens 8 TVI from TX to RX and 1 RS485 control data from RX to TX over one fiber.
