Options and Related Products

Length (ft):: Length (ft): 75.5

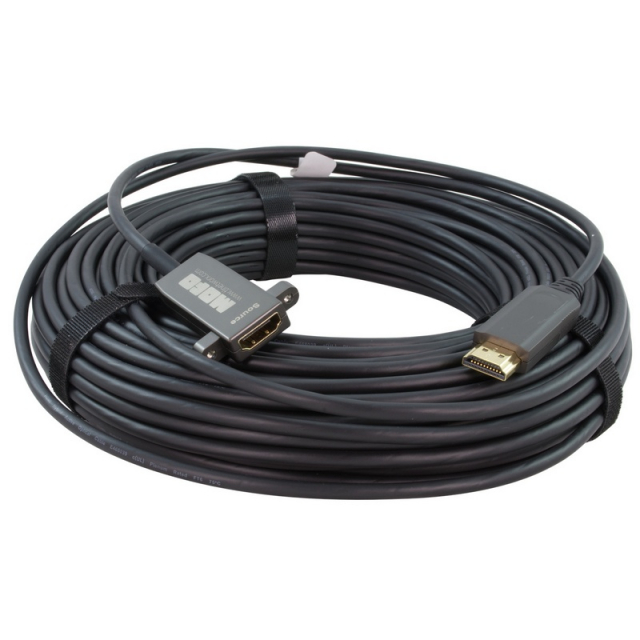

TechLogix Networx, MOFO-HD20PT-23, HDMI 2.0, 4K Cable with Plate Connection, MOFO Fiber Technology, Plenum, 75.5 ft

Features:

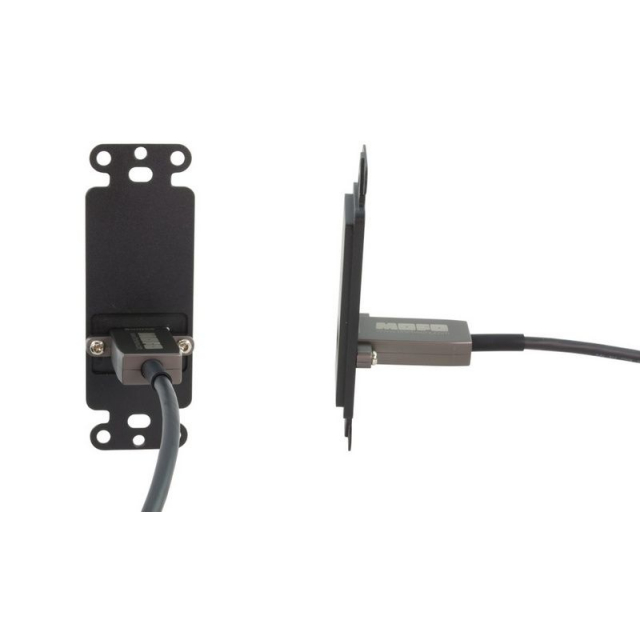

Fiber-based HDMI cable with connection for wallplates and table inserts
Supports HDMI version 2.0 and earlier
Male HDMI (display side) to female HDMI (plate side) connectors

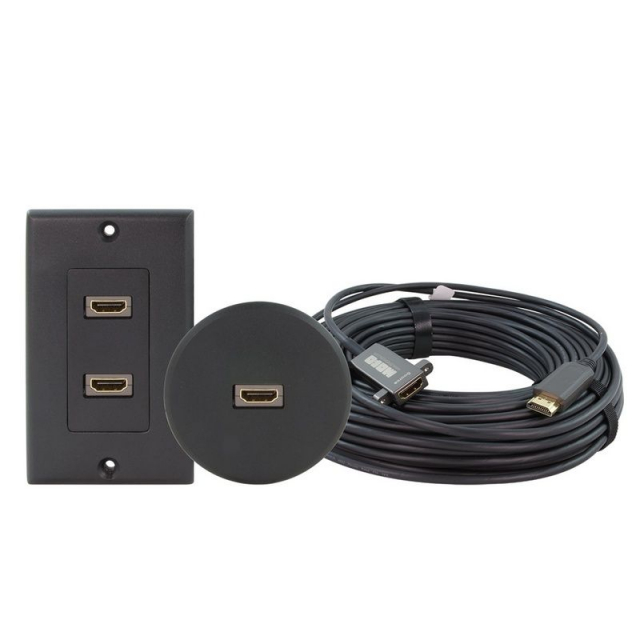

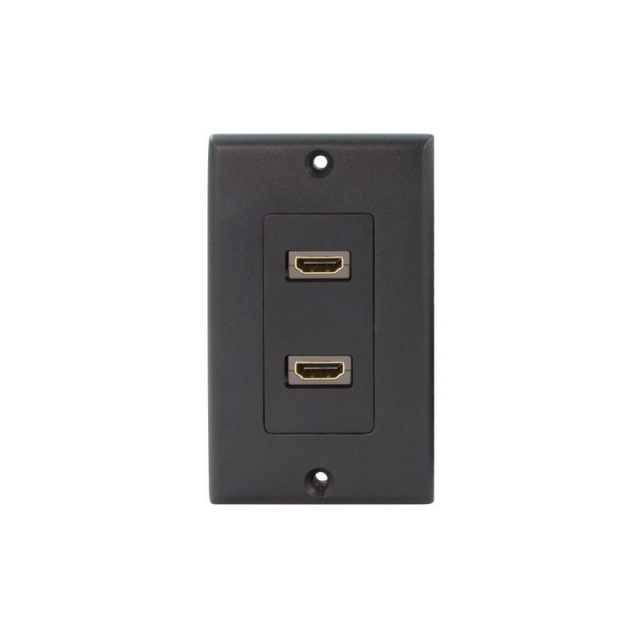

Compatible wallplates include: MOFO-PT-WD1B, MOFO-PT-WD2B, PT-WD1W and MOFO-PT-WD2W

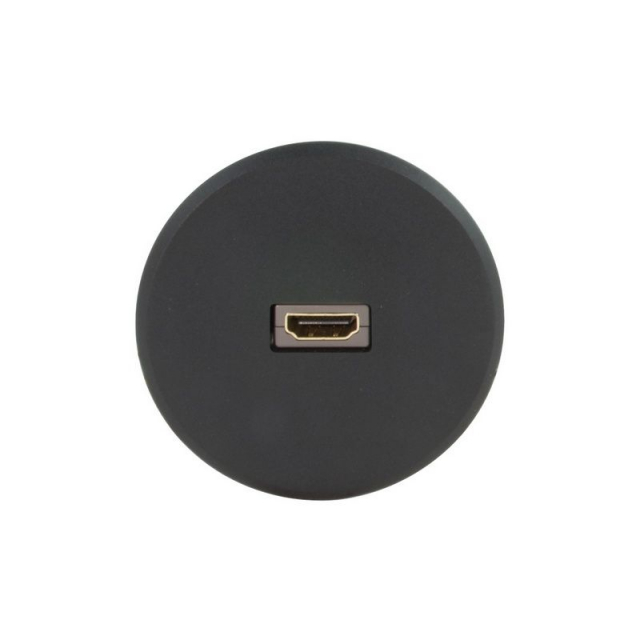

Compatible table inserts include: MOFO-PT-TA1B and MOFO-PT-TA1W
Black plenum rated jacket
Durable metal headshells
No power required
Supports 18G 4K60 4:4:4 HDR / HDCP 2.0 / 3D / Deep Color
Supports multi-channel audio / Dolby TrueHD / DTS-HD Master Audio / ARC
Supports EDID / CEC / HEC
Directional operation - clearly marked source & display headshells
Interference-free performance
Four strand multimode OM3 construction - supports re-termination in the field
Recommended for conduit/pipe/duct diameters of 1" or greater
Patent pending (No. 63/239,548)

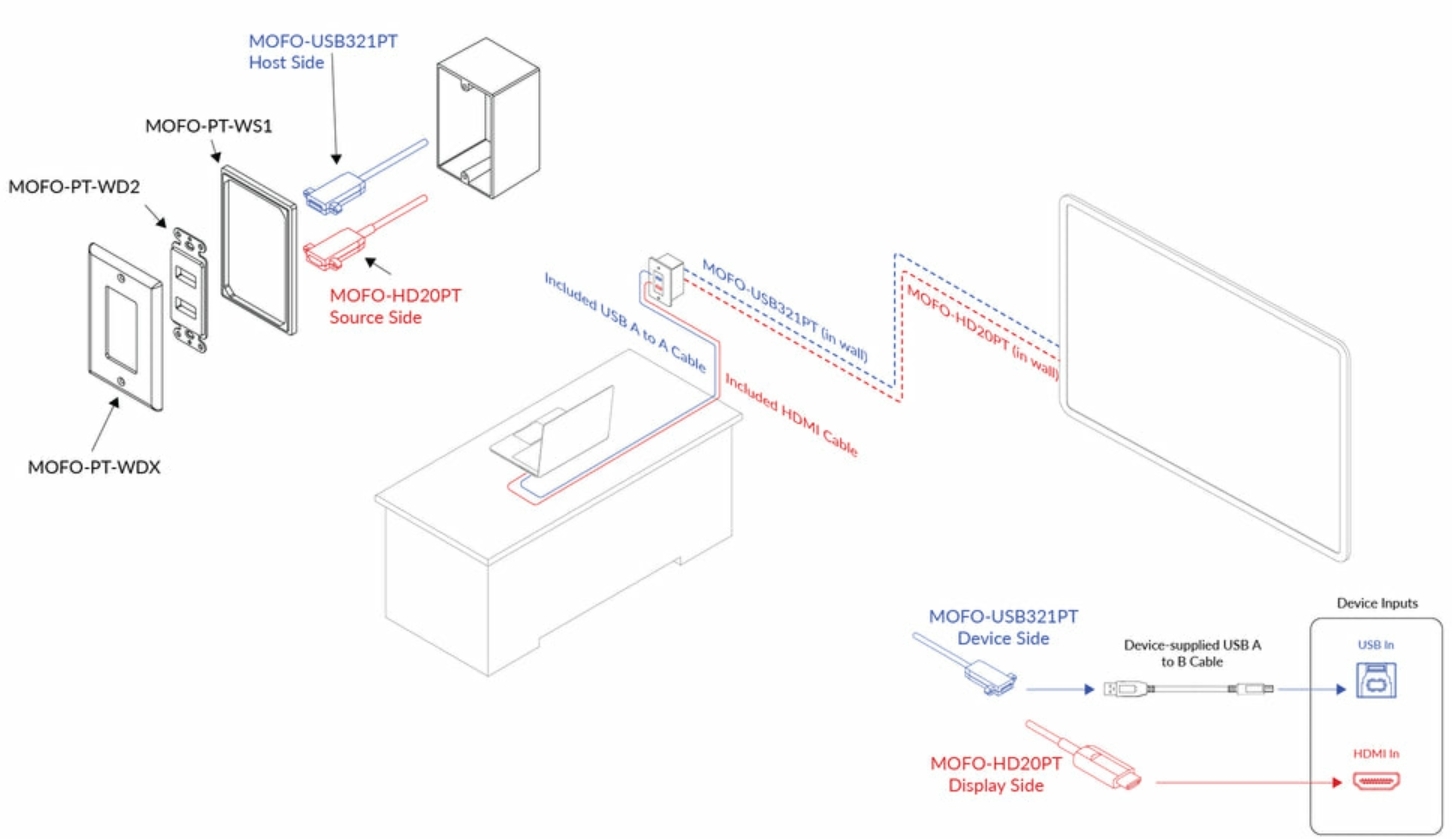

Diagram Connection

For more information, please see pdf file Data Sheet

See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

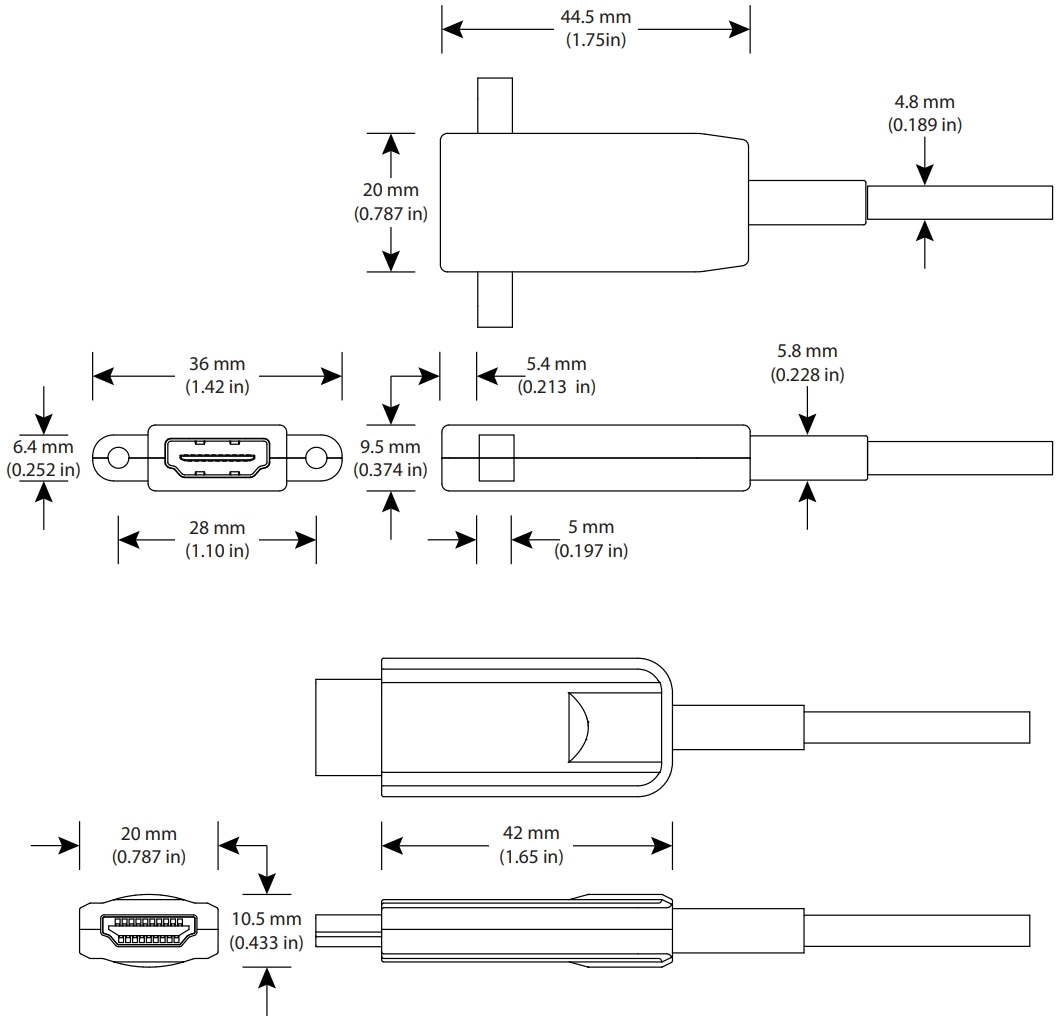

Source Side Head Shell
Overall Dimensions (W X H X D)	36mm (1.42 in) x 9.5mm (0.374 in) x 44.5mm (1.75 in)
Mounting Ear Depth	5.4mm (0.213 in)
Head Shell Dimensions without Mounting Ears	20mm (0.787 in) x 9.5mm (0.374 in) x 44.5mm (1.75 in)
Space Between Mounting Points	28mm (1.10 in)
Connector	Female HDMI Type A
Mounting Screw Size	M3-0.5
Materials	Anodized aluminum
Display Side Head Shell Specifications
Overall Dimensions (W X H X D)	20mm (0.787 in) x 10.5mm (0.433 in) x 42mm (1.65 in)
Connector	Male HDMI Type A
Materials	Anodized aluminum
Signal Specifications
Signal Type and Maximum Bandwidth	HDMI 2.0 down to HDMI 1.4: 6 Gbps x 3 channel (18G) maximum
HDCP Support	HDCP 2.2 down to HDCP 1.4
Supported Resolutions	480p, 720p, 1080i and 1080p deep color, 4Kp50/60
Electrical and Optical Specifications
Supply Voltage from Host Device	4.75 to 5.25V (5V typ.)
Power Consumption	250mW (max)
Differential Impedance	100Ω
Optical Transmitter	4-channel 850nm VCSEL array (multimode)
Optical Receiver	4-channel GaAs PD array
Source Side Optical Output Power	0 dBm minimum
Display Side Optical Sensitivity	-7.5 dBm minimum
Cable Specifications
Cable Type	Hybrid optical (OM3) and copper (8-strand)
Cable Diameter	4.5mm (0.177 in)
Minimum Bend Radius	45mm (1.77 in)
Tensile Strength	145N (32.5 lbs)
Jacket Material	Black plenum-rated PVC

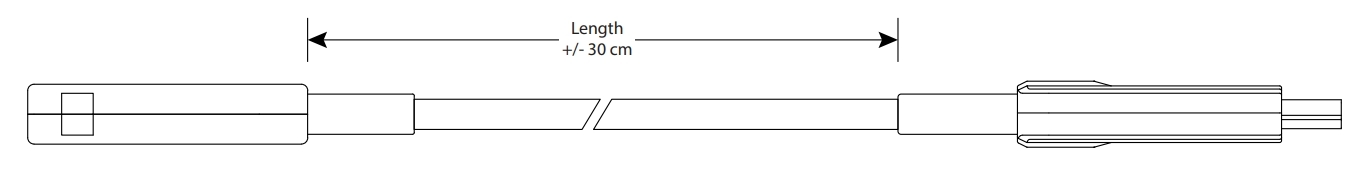

Cable Lengths	75.5 ft (23m)
Environmental Specifications
Operating Temperature (Environment)	0° to +50° C (32° to 122° F)
Storage Temperature (Environment)	-20° to +70° C (-4° to 158° F)
Storage Relative Humidity (Environment)	10% to 85%

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Source Side Head Shell
Overall Dimensions (W X H X D)	36mm (1.42 in) x 9.5mm (0.374 in) x 44.5mm (1.75 in)
Mounting Ear Depth	5.4mm (0.213 in)
Head Shell Dimensions without Mounting Ears	20mm (0.787 in) x 9.5mm (0.374 in) x 44.5mm (1.75 in)
Space Between Mounting Points	28mm (1.10 in)
Connector	Female HDMI Type A
Mounting Screw Size	M3-0.5
Materials	Anodized aluminum
Display Side Head Shell Specifications
Overall Dimensions (W X H X D)	20mm (0.787 in) x 10.5mm (0.433 in) x 42mm (1.65 in)
Connector	Male HDMI Type A
Materials	Anodized aluminum
Signal Specifications
Signal Type and Maximum Bandwidth	HDMI 2.0 down to HDMI 1.4: 6 Gbps x 3 channel (18G) maximum
HDCP Support	HDCP 2.2 down to HDCP 1.4
Supported Resolutions	480p, 720p, 1080i and 1080p deep color, 4Kp50/60
Electrical and Optical Specifications
Supply Voltage from Host Device	4.75 to 5.25V (5V typ.)
Power Consumption	250mW (max)
Differential Impedance	100Ω
Optical Transmitter	4-channel 850nm VCSEL array (multimode)
Optical Receiver	4-channel GaAs PD array
Source Side Optical Output Power	0 dBm minimum
Display Side Optical Sensitivity	-7.5 dBm minimum
Cable Specifications
Cable Type	Hybrid optical (OM3) and copper (8-strand)
Cable Diameter	4.5mm (0.177 in)
Minimum Bend Radius	45mm (1.77 in)
Tensile Strength	145N (32.5 lbs)
Jacket Material	Black plenum-rated PVC
Cable Lengths	75.5 ft (23m)
Environmental Specifications
Operating Temperature (Environment)	0° to +50° C (32° to 122° F)
Storage Temperature (Environment)	-20° to +70° C (-4° to 158° F)
Storage Relative Humidity (Environment)	10% to 85%

Note

Note: Please read description carefully. Do not base your order on the picture presented.
