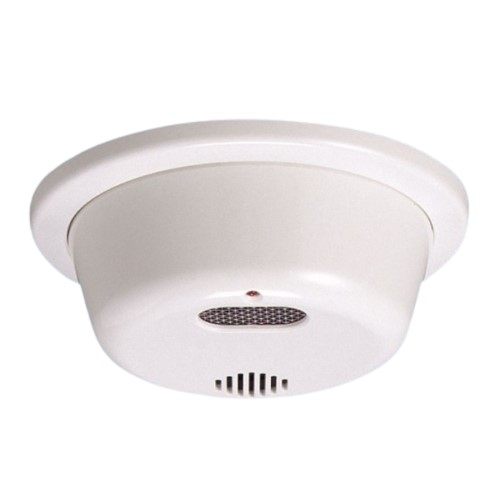

Takex, FS-1000, 33' Ultraviolet Sensor, Ceiling Mount ,"Snap in Base", Battery 3V or External 9 - 30VDC, NPN Open Collector Output N/O
FS-1000 Includes Only:
- 33' Ultraviolet Sensor
- Exclusive battery case of Type-3x2pcs, x1
- Type-3 alkaline battery LR6x2
- Sensor locking screw I3x6, x1
- Tapping screw I4x25, x2
Features:
- The FS-1000E can be powerd from either type-3 alkaline battery x2 pcs, or an external power source 9~30VDC depending on the application.
- Equipped with a form A (N/O) open collector output, FS-1000E can be connected to a security control panel. Alternatively the output signal can be used to initiate a warning device e. g. bell, siren etc., when used with an external DC power supply.
- The alarm will be activated only when the sensor detects a flame (ultraviolet rays) in accordance with the detection timer. The 4 following detection times are selectable by a slide switch located on the sensor body
