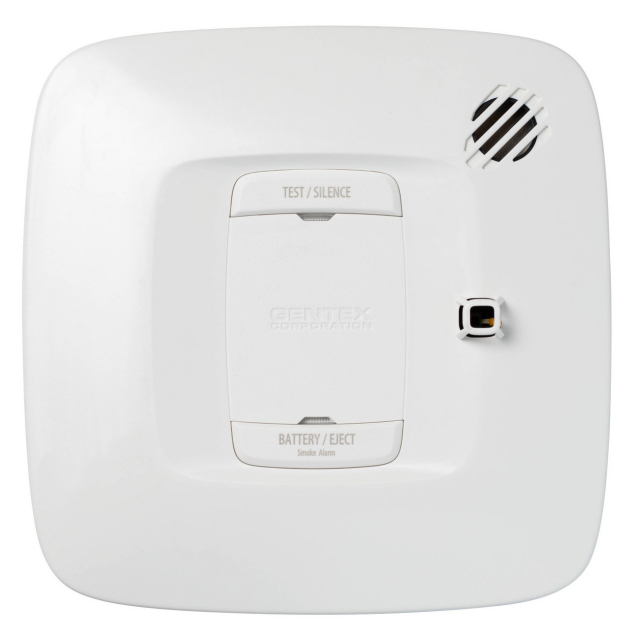

Sensaphone FGD-0049-SQ Contact Type Smoke Detector Sensor

Features:

• Multi-Criteria smoke sensing including photoelectric light scattering sensing technology
• 10-year end-of-life indicator
• Temporal 3 evacuation signal pattern for smoke and heat annunciation
• 85 dBA evacuation horn piezo
• Horn frequency 3100Hz
• Nominal 2.5% sensitivity
• 8-hour alarm memory
• Push button self-test
• Push button functional test
• Quick-disconnect wiring harness
• Non-latching (self restoring) alarm
• Pulsing LED sensing chamber
• Fully insect screened
• Mounting hardware adapts to standard junction boxes
• Dust cover to prevent contamination during installation
• Low or missing battery indicator
• Connect up to twelve smoke detector sensors to one Sensaphone input

The Smoke Detector is designed for use in commercial and residential applications and is engineered to virtually eliminate nuisance alarms and deliver outstanding performance wherever reliable smoke detection is required. Up to 12 devices can be connected together and report to one Sensaphone zone. A 85 dBA audible horn and 9V battery backup is included. This smoke detector can be used with all Sensaphone models.
