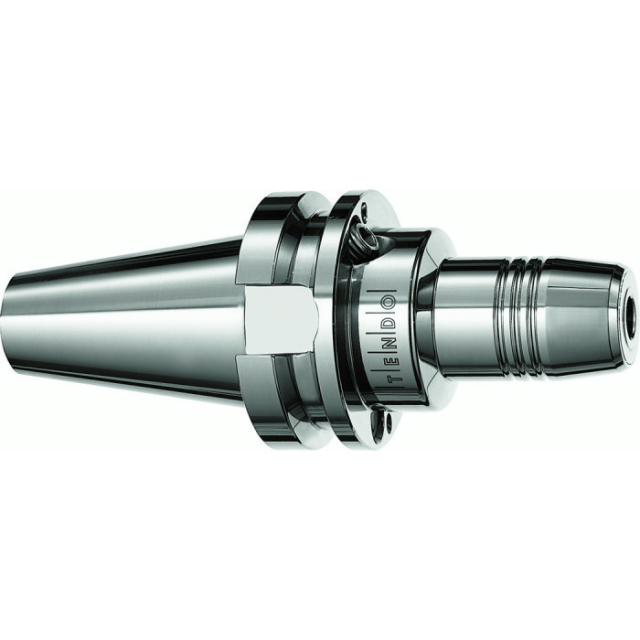

Buy Schunk 205145, BT40 Taper Shank 3/4" Hole Diam Tool Holder/Chuck - Prime Buy

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Clamping Diameter:: Clamping Diameter: 3/4"

Features:

Hydraulic Expansion Toolholder
Series: TENDO Platinum
Toolholder interface: JIS-BT 40
Clamping diameter: 3/4"
Min. clamping diameter: 19.05 mm
Projecting length: 90 mm
Run-out accuracy: < 0.003 mm at 2.5 x D
Balancing grade: G2.5 at 25,000 RPM or Umax < 1 gmm
Min. torque: 310 Nm

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Shank Type	Taper Shank
Taper Size	BT40
Hole Diameter (Inch)	3/4
Hole Diameter (Decimal Inch)	0.7500
Hole Diameter (mm)	19.05
Nose Diameter (Decimal Inch)	1.6535
Nose Diameter (mm)	42.00
Projection (Decimal Inch)	3.5000
Projection (mm)	90.00
Through Coolant	Yes
Clamping Depth (mm)	41.50
Balanced to (RPM)	25000
TIR (mm)	0.003

Product Details

Shank Type	Taper Shank
Taper Size	BT40
Hole Diameter (Inch)	3/4
Hole Diameter (Decimal Inch)	0.7500
Hole Diameter (mm)	19.05
Nose Diameter (Decimal Inch)	1.6535
Nose Diameter (mm)	42.00
Projection (Decimal Inch)	3.5000
Projection (mm)	90.00
Through Coolant	Yes
Clamping Depth (mm)	41.50
Balanced to (RPM)	25000
TIR (mm)	0.003

Note: Please read description carefully. Do not base your order on the picture presented.
