Schneider 21-1070074 Emerald 2.2 V48-Mount Large Format Lens

Focal Size (mm): 2.2/50, Mount Type: V48-Mount
  • Brand Schneider
  • Part # 21-1070074
  • Model # Emerald
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Focal Size (mm):
Focal Size (mm): 2.2/50
Mount Type:
Mount Type: V48-Mount

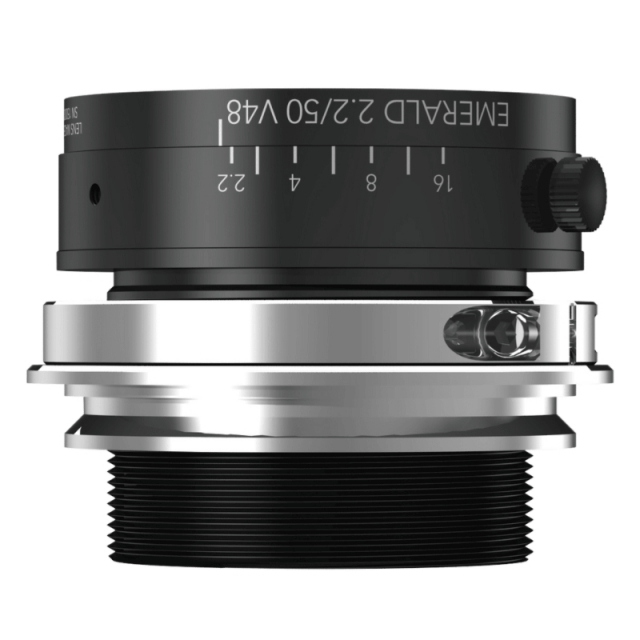

Schneider Optics, 21-1070074, Emerald 2.2/50mm V48-Mount Large Format Lens

Features:

  • V48-Mount
  • 43.2 mm image circle
  • Optimized for short working distances
  • 400-1000 nm broadband AR-coating

Applications:

  • Machine Vision
  • AOI (Automated Optical Inspection)
  • Web inspection
  • Factory automation

This compact and fast V48-Mount lens is designed for large sensors up to 43.2 mm diagonal/length. It is optimized for a working distance range from 0.3 m to 2.0 m but can be used in many cases also for longer working distances. With optional V48 extension tubes and adapters it can be mounted to all common camera mounts. The robust mechanics and a special focus setting and locking mechanism ensures highest mechanical stability even in harsh enviornment.

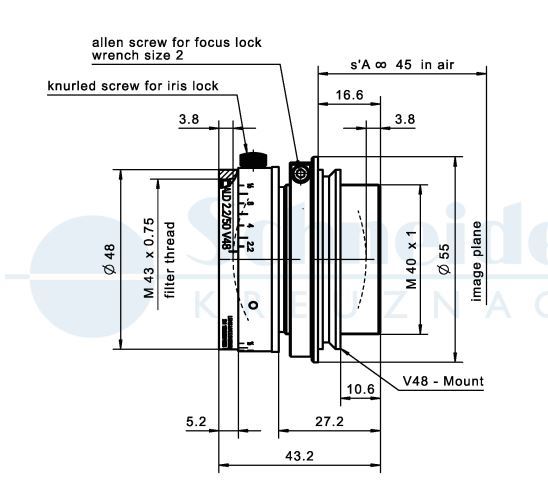

Dimensions:


For more information, please see image23 Data Sheet

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
Manufacturer Warranty

Technical Details

Reviews
TypeV48
InterfaceV48-Mount
Focal Length [mm]50
F/# RangeF/2.2 - F/16
Numerical Aperture [Object | Image]- | 0.21
Maximum Sensor Size [mm]43.2
Maximum Angle of View [°]45
Recommendation Magnification Range-0.17 - 0
Recommendation Working Distance Range [mm]327 - ∞
Minimum Working Distance without Extension Tubes [mm]13.1
Filter Thread [mm]M43 x 0.75
Storage Temperature [°C]-25 - +70
Net Weight [Standard] [g]202
F'Eff [mm]51.21
SF [mm]-23.75
S'F' [mm]32.17
HH' [mm]-10.90
ß'P1.07
SEP [mm]23.94
S'AP [mm]-22.81
Σd [mm]35.59
Product Details
TypeV48
InterfaceV48-Mount
Focal Length [mm]50
F/# RangeF/2.2 - F/16
Numerical Aperture [Object | Image]- | 0.21
Maximum Sensor Size [mm]43.2
Maximum Angle of View [°]45
Recommendation Magnification Range-0.17 - 0
Recommendation Working Distance Range [mm]327 - ∞
Minimum Working Distance without Extension Tubes [mm]13.1
Filter Thread [mm]M43 x 0.75
Storage Temperature [°C]-25 - +70
Net Weight [Standard] [g]202
F'Eff [mm]51.21
SF [mm]-23.75
S'F' [mm]32.17
HH' [mm]-10.90
ß'P1.07
SEP [mm]23.94
S'AP [mm]-22.81
Σd [mm]35.59
Note

Note: Please read description carefully. Do not base your order on the picture presented.
