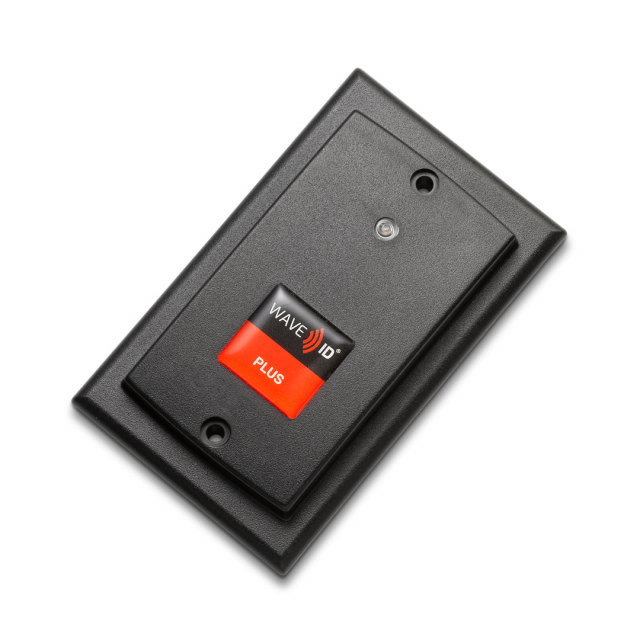

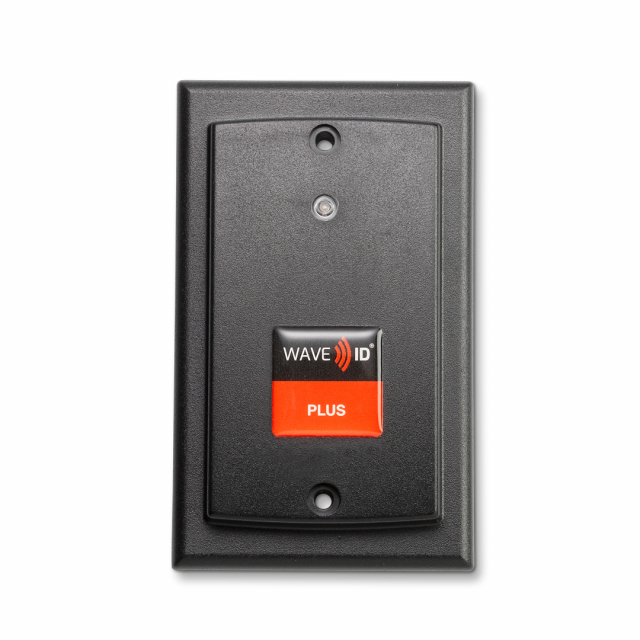

RF IDeas RDR-805W6AKU Wave ID Plus CCID Surface Mount USB Reader
Brand NewNotification
This product will be drop-shipped directly from the manufacturer. We will provide you with the manufacturer's lead time once advised.
Manufacturer warranty Description
RF IDeas, RDR-805W1BKU, Wave ID Plus CCID Surface Mount Black USB Reader
Features:
- Delivers card ID in formats that multiple applications recognize
- Standard four card configurations (two are pre-set; two are user-definable)
- Ideal for enrollment into third-party software or for single sign-on integrators
- User-adjustable beeper volume can be set to high, low or off as appropriate for the work environment
- 13.56 MHz auto-tuning ensures optimal power transfer to avoid interference
- For a full list of supported cards types,supported-card-types
Benefits:
- Delivers nearly limitless possibilities for user identification and authentication
- Simultaneously reads proximity and contactless card technologies
- Customizable to work with any card solution for any size corporation
- Eliminates error associated with individual identification and manual entry
- Users can quickly configure reader output to meet their needs
- Ideal for government, healthcare, manufacturing/industrial and enterprise
As most feature-rich offering, the WAVE ID Plus card readers maximize the value of and existing ID badges by providing simultaneous processing of contactless and proximity smart cards. This dual-frequency card reader performs at the highest technical standards while serving diverse applications with signature ease of use. Also in an SDK compatible model, it can integrate into most software or hardware through the use of the rf IDEAS® Universal Software Developer's Kit (SDK) This multi-technology reader delivers flexibility to any customer, integrator or end user struggling with different card technologies. In use with the rf IDEAS Configuration Utility, the WAVE ID Plus card reader also functions as a comprehensive card analyzer for determining compatible readers.
The WAVE ID Plus Surface Mount reader mounts nearly anywhere and supports improved authentication with nearly all proximity and contactless cards worldwide. The reader comes in four card configurations (two are pre-set and two are user-definable) and mounts easily with two screws on a single gang electrical box. In addition, it features user-selectable volume control with an optional beeper on/off setting
Technical details
- Interface USB, Serial RS-232, Ethernet
- Cable Length 13 inches (Custom Lengths)
- Weight 2.6 oz. (73.70g)
- Dimensions 4.3" x 2.5" x 0.35" (10.9cm x 6.35cm x 0.89cm)
- Certifications FCC-United States; CE Mark-Europe; C-TICK, RoHS, IC-Industry Canada, UL, REACH, RoHS, KC Korea, VCCI Japan, SRRC China, CITC S. Arabia, IFETEL Mexico, ANATEL Brazil, IDA Singapore
- Power Supply USB Self-powered; PoE; Serial RS-232: several power options exist
- Housing Color Black
- Power Consumption 70 mA typical, 150 mA maximum
- Operating Temperature Range -22° to 150°F (-30° to 65°C)
- Storage Temperature Range -40° to 185°F (-40° to 85°C)
- Operating Humidity Range 5% to 95% relative humidity, noncondensing
- Indicators LED indicator; Adjustable beeper volume (off , low, medium, high)
- Operating Frequency 125 kHz and 13.56 MHz
- Compatible Operating Systems Windows XP®, 7®, 8®, 10® and Linux (Ubuntu, Red Hat), macOS and Android
- SDK for Writing Apps to the Reader Yes
- Configure Utility Supports nearly all card types worldwide. Visit rfi deas.com/cardcompatibility for a full list of supported card types.
- Mounting Parts To achieve IP67 compliance, the IP67 Installation Guide included in your product box must be followed.
