Features:

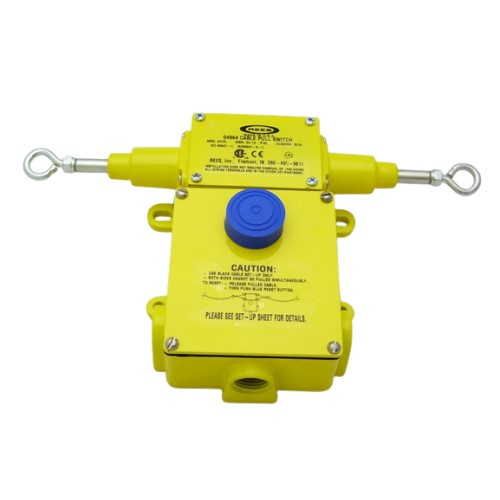

The following"slack cable" style, bi-directional switch 2 NO and 2 NC contacts. The housing is made from high quality die-cast aluminum and powder coat painted yellow. The covers are made from aluminum and also powder coat painted yellow. This switch is activated by pulling the cable on either side. The switch can only be activated by pulling on the cable one side at a time (not simultaneously). Pushing the blue reset button on the switch cover will reset the contacts.
Each captive terminal will accept (2) #14 AWG stranded wires. Each switch is supplied with a neoprene gasket which provides an oil tight seal upon installation. There are three 1/2"NPT conduit openings. The maximum cable recommended cable length is 200 feet on each end with a maximum interval support of 10 feet. The mechanical life of the switch is 250,000 operations.
