Features:
- Manual reset with"Positive Break" contacts
- Gold plated contacts eliminate high resistance tarnishing
- Bi-Directional with Dual Flags
- Nema 4X (indoor), IP 66

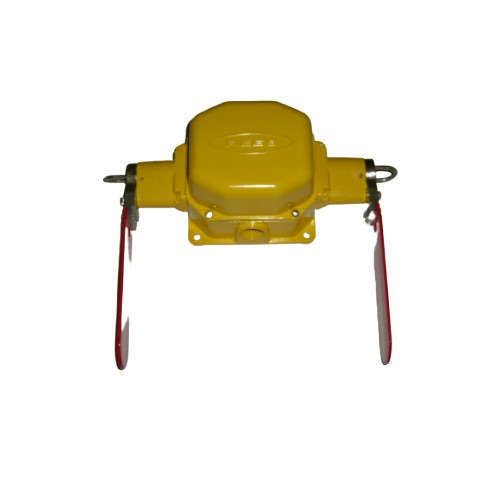

The following"slack cable" style switch has 2 NO and 2 NC make-before-break contacts on each end. This switch is particularly competent for use in Emergency Stop applications as well as for ordinary circuit control. The housing is made from high quality die-cast aluminum and powder coated painted yellow. The independently operating red indicating flags rotate 90 degrees when tripped. Manually returning the flags to their normal position resets the switch.
Each captive terminal will accept (2) #14 AWG stranded wires. Each switch is supplied with a fibreflex gasket which provides an oil tight seal upon installation.
There are two 3/4" NPT conduit openings. The maximum cable recommended cable length is 200 feet per end with a maximum interval support of 10 feet.
The mechanical life of the switch is 150,000 operations.
This switch can be installed on various conveyor installations and provides a constant access for emergency or normal stopping.
The rugged construction and long term reliability makes this cable pull switch well suited to function within various environments.
Contact blocks are UL Listed and CSA/DEMKO Certified, however, the assembled switch is not.
